Special Tools

SPECIAL TOOLS

Part 1:




Part 2:




Part 3:

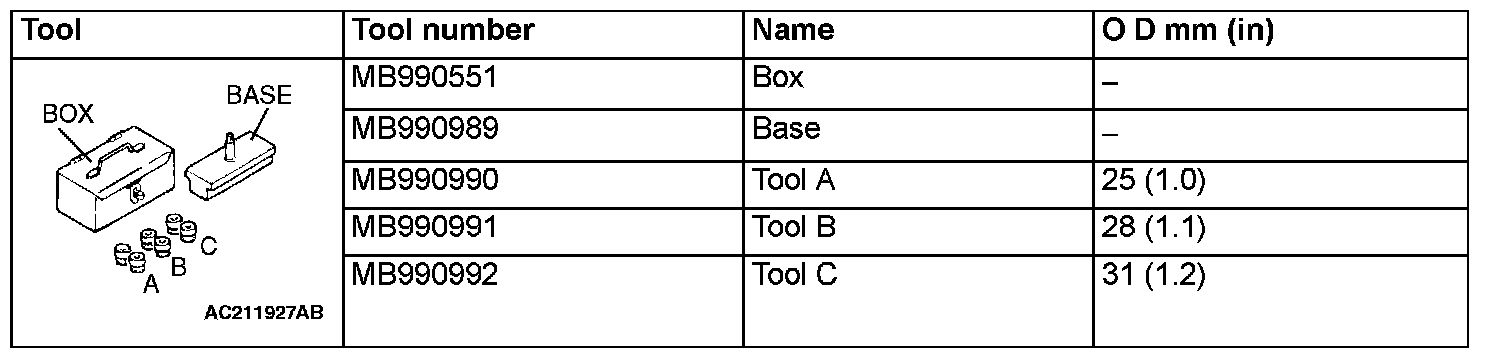

SIDE GEAR HOLDING TOOL SET

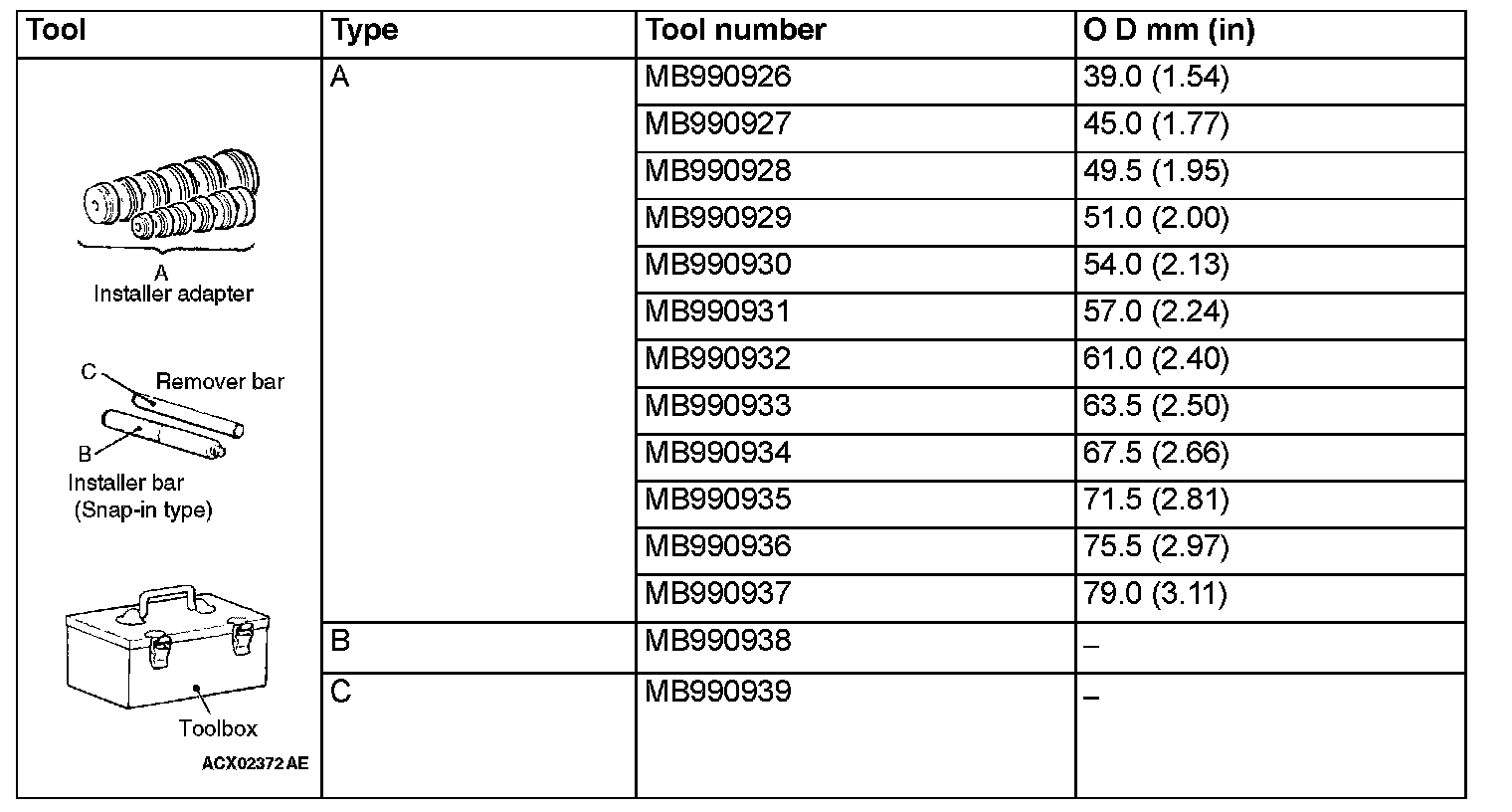

MB990925 BEARING AND OIL SEAL INSTALLER SET
