OIL COOLER

REMOVAL AND INSTALLATION

CAUTION
Do not refill the fluid when replacing the transaxle assembly and the oil cooler with new ones at the same time.

NOTE:
^ The new transaxle assembly is filled with 7.6 dm3 (8.0 qt.) of the fluid (including the oil cooler).
^ The transaxle assembly has a sealed structure and the fluid does not drain out from parts other than the oil cooler hose.

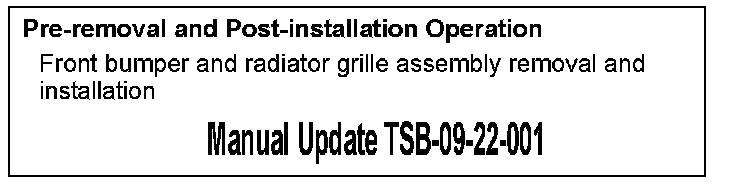

Pre-removal & Post-installation Operation:

Removal Steps 1-6:

INSTALLATION SERVICE POINT
TRANSMISSION OIL REFILLING

CAUTION
Refill 6.1 dm3 (6.4 qt) of the transmission oil.

NOTE: The fluid capacity of the oil cooler assembly and the oil cooler hose assembly is 0.6 dm3 (0.6 qt).
