Shifter ASMT: Testing and Inspection
PADDLE SHIFT ASSEMBLYINSPECTION
PADDLE SHIFT SWITCH CHECK

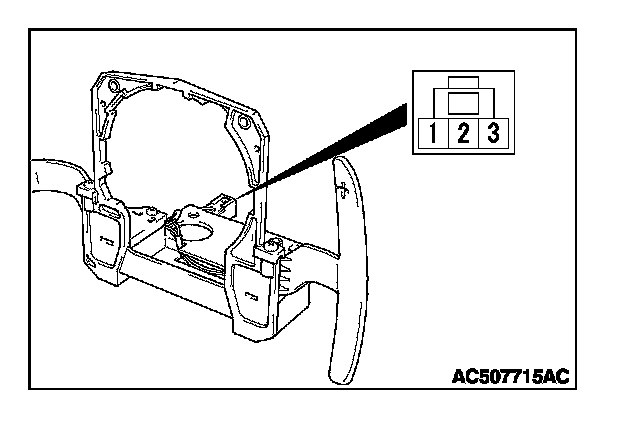

1. Check the continuity between the paddle shift switch connector terminals.

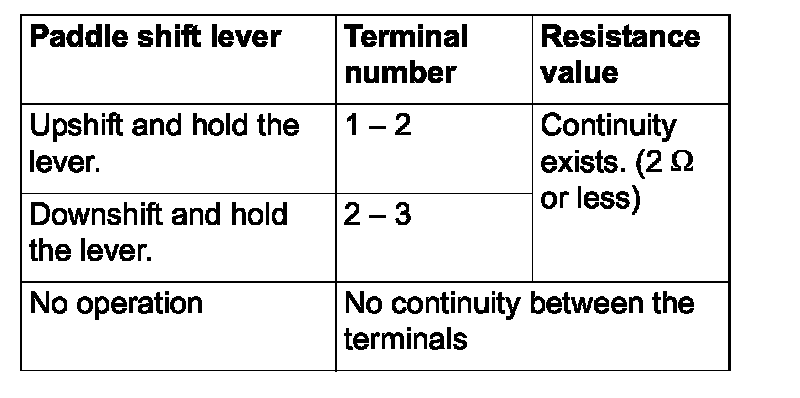

Standard value:
2. In the cases other than the above, replace the paddle shift assembly.
