Shift Interlock: Testing and Inspection

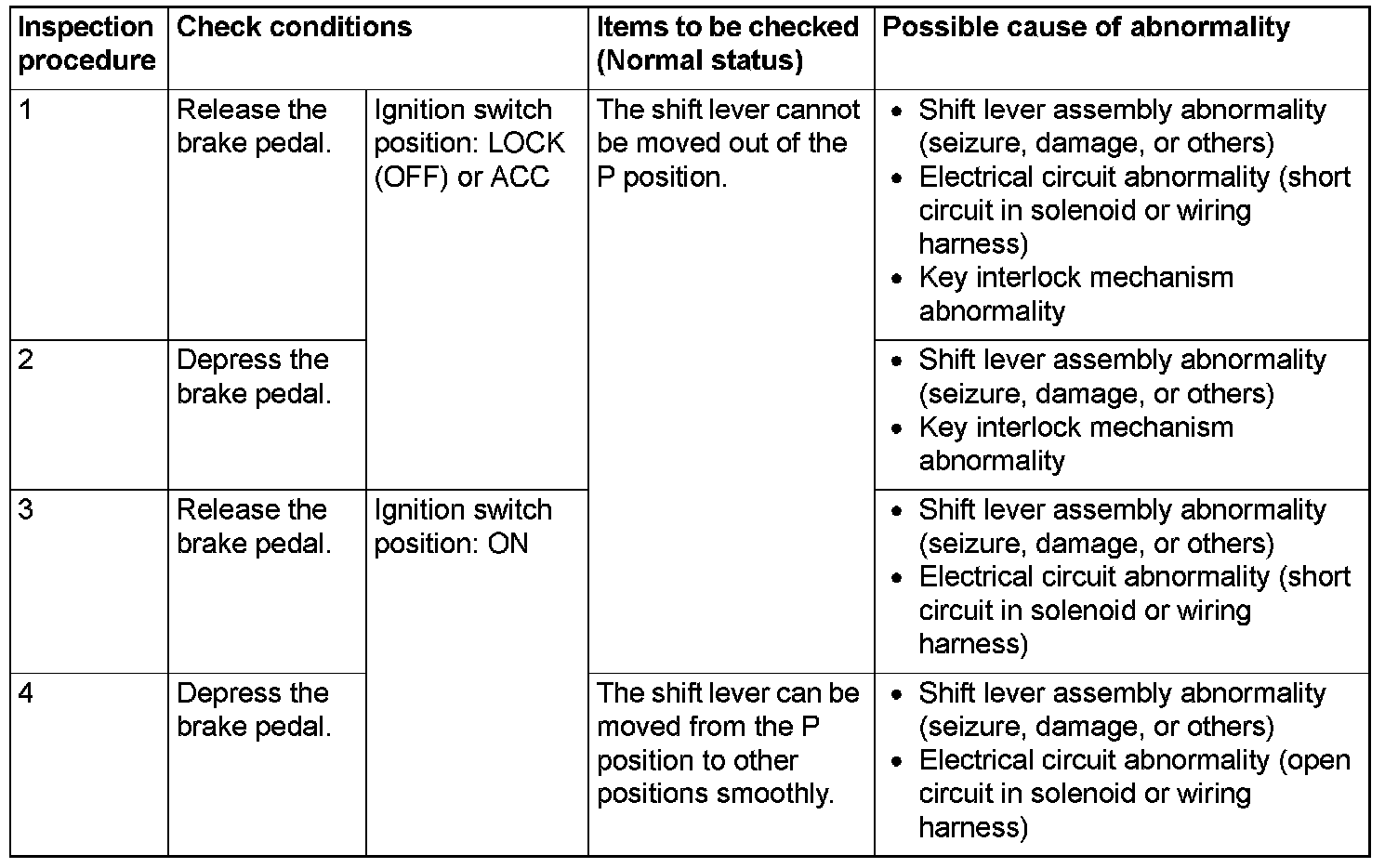

SHIFT LOCK MECHANISM CHECK SYSTEM CHECK





COMPONENTS CHECK
1. Troubleshoot the shift lever.
2. Remove the shift lever assembly. Then, check that there is no damage to each part, and that the shift lever can be moved to each position.
3. After performing the check above, if an abnormality is found, replace the shift lever assembly.
