Twin Clutch Sportronic Shift Transmission [Check Oil Leaks (If Necessary, Check the Oil Level/Change]

TWIN CLUTCH SPORTRONIC SHIFT TRANSMISSION [CHECK OIL LEAKS (IF NECESSARY, CHECK THE OIL LEVEL/CHANGE]

TC-SST OIL LEVEL CHECK
1. After cleaning the outer surface of transaxle, visually check that there is no oil oozing or oil leaking from the transaxle.
2. If an oil oozing or leaking is present, replace the transaxle assembly.

TC-SST OIL CHANGE
1. Remove the engine compartment under cover front B assembly.

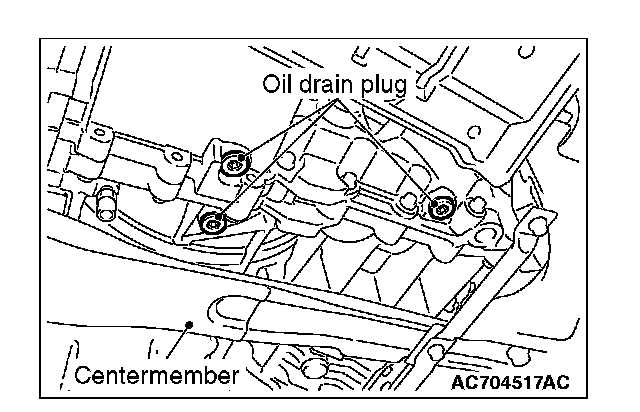

2. Remove the oil drain plug to drain the oil.

NOTE: Because the oil in the oil cooler and oil filter cannot be drained, the amount of drained oil will be approximately 5.5 dm3 (approximately 5.8 quarts).

3. Tighten the oil drain plug to the specified torque.

Tightening torque: 35 ± 5 Nm (26 ± 4 ft-lb)

4. Remove the air cleaner element, air cleaner intake duct, and air cleaner body.

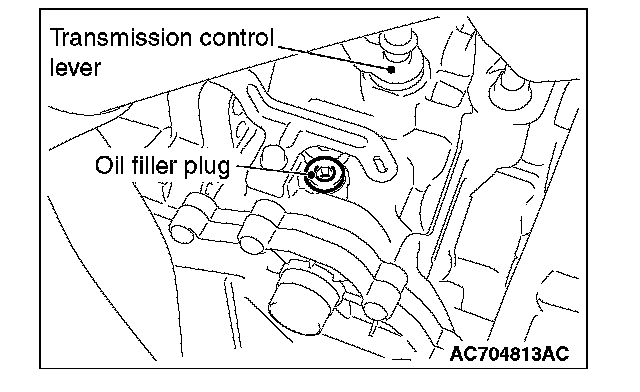

5. Remove the oil filler plug, then fill the oil.

Brand name: Mitsubishi genuine Dia-Queen SSTF-I
Filling amount: Approximately 5.5 dm3 (approximately 5.8 quarts)

6. Tighten the oil filler plug to the specified torque.

Tightening torque: 35 ± 5 Nm (26 ± 4 ft-lb)

7. Install the air cleaner element, air cleaner intake duct, and air cleaner body.
8. Start the engine, then let it idle for 1 to 2 minutes.
9. Move the shift lever to every position, and then move it to the P or N range.
10. Stop the engine, then perform Steps 2 to 5 again.
11. Check the oil level and oil fouling. If fouling is found, repeat Steps 2 to 5 until the fouling is eliminated.
12. Install the engine compartment under cover front B assembly.
