Transfer

TRANSFER

DISASSEMBLY AND ASSEMBLY

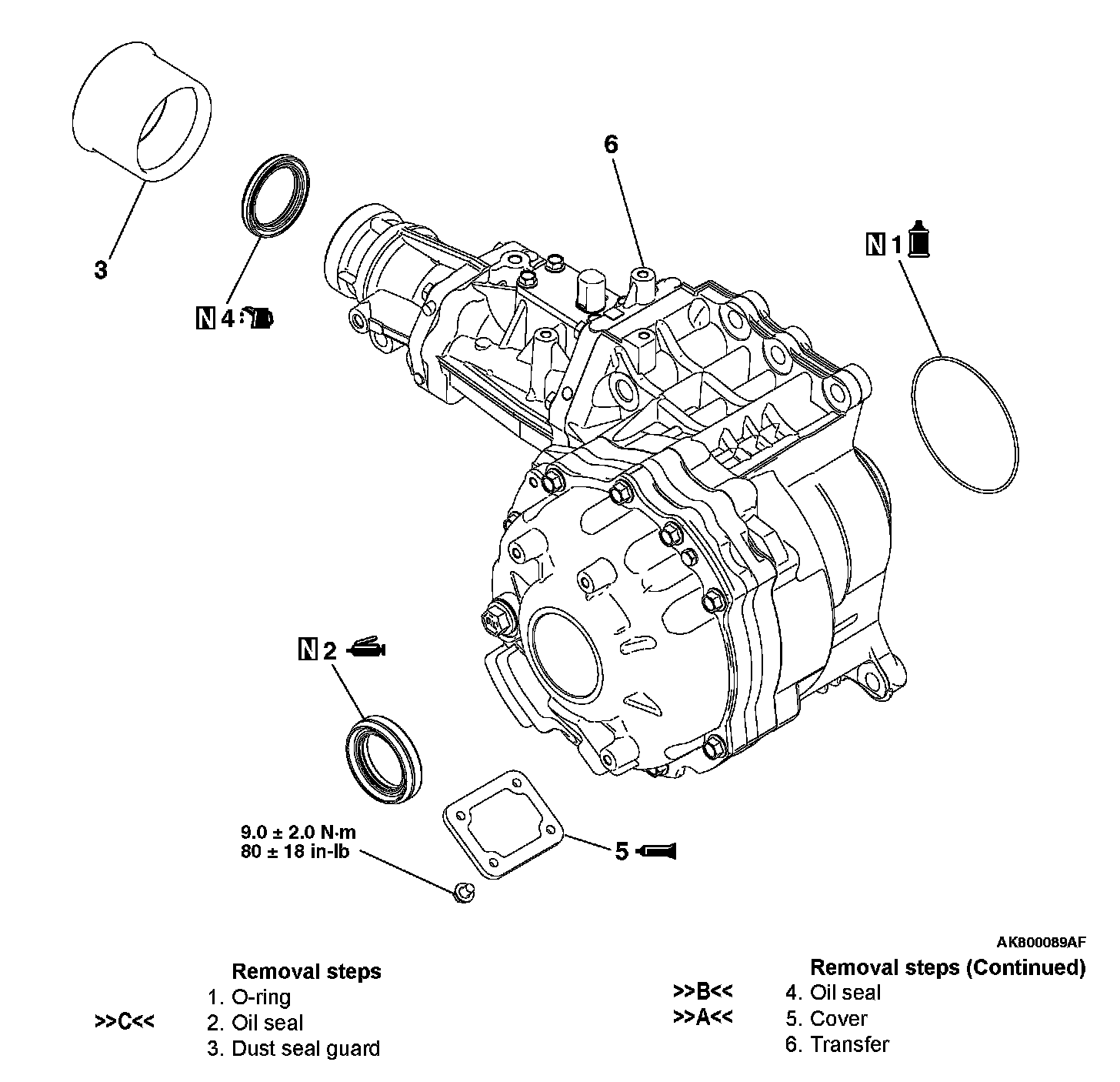

Removal Steps 1-6:

Required special tools:
^ MD998382: Crankshaft front oil seal installer
^ MD998550: Extension housing seal installer

ASSEMBLY SERVICE POINT

]]A[[ COVER INSTALLATION

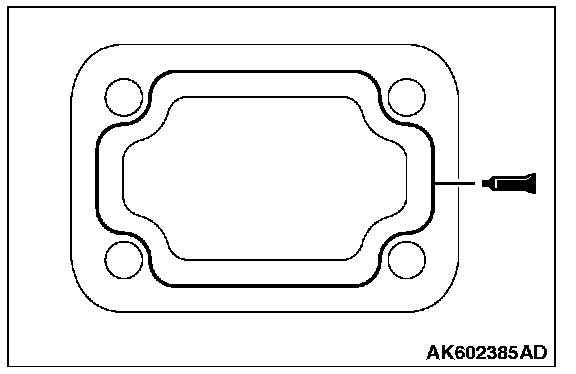

1. Apply a 1.5 mm (0.06 in) diameter bead of sealant as illustrated onto the cover.

Specified sealant: Mitsubishi Part No. MD997740 or equivalent

2. Attach the cover to the transfer and tighten it to the specified torque.

Tightening torque: 9.0 ± 2.0 Nm (80 ± 17 in. lb.)

]]B[[ OIL SEAL INSTALLATION

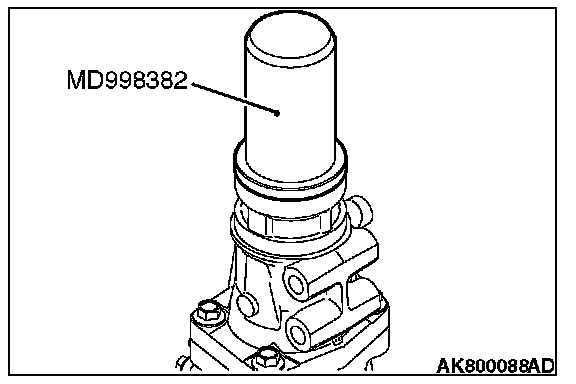

1. Using the special tool MD998382, to install the oil seal.
2. Apply transfer oil to the lip of oil seal.

]]C[[ OIL SEAL INSTALLATION

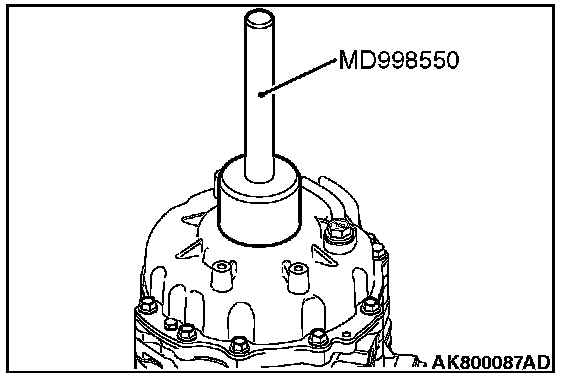

1. Using the special tool MD998550, to install the oil seal.
2. Apply specified grease to the oil seal lip area.

Specified grease: Retinax A
