Transaxle

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

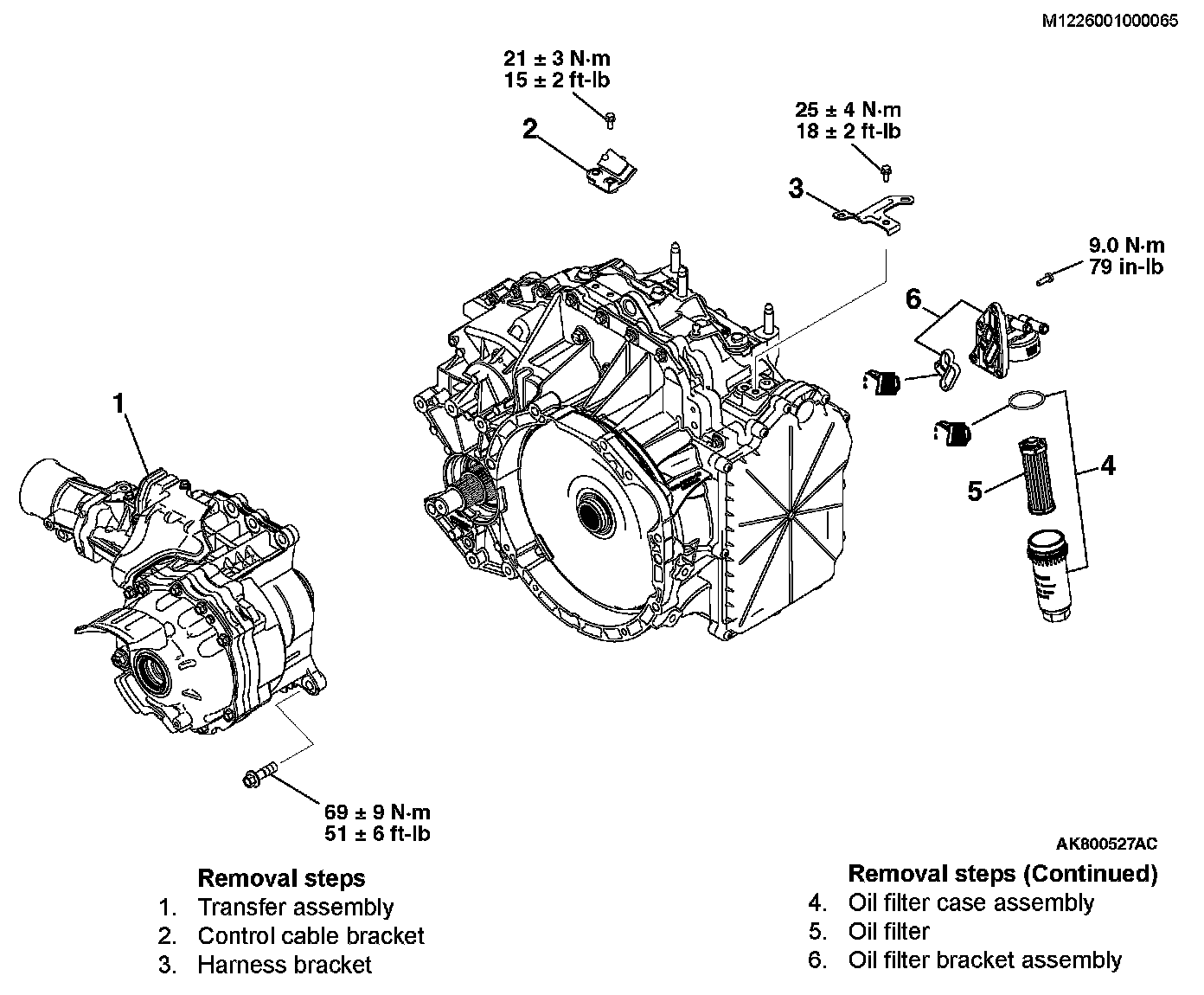

Removal Steps 1-6:





CAUTION:
Only if damaged, the oil filter case assembly and the oil filter bracket assembly are replaced.
