Removal and Replacement

REMOVAL AND INSTALLATION [2.0L ENGINE TURBO]

Pre-removal & Post-installation Operation:

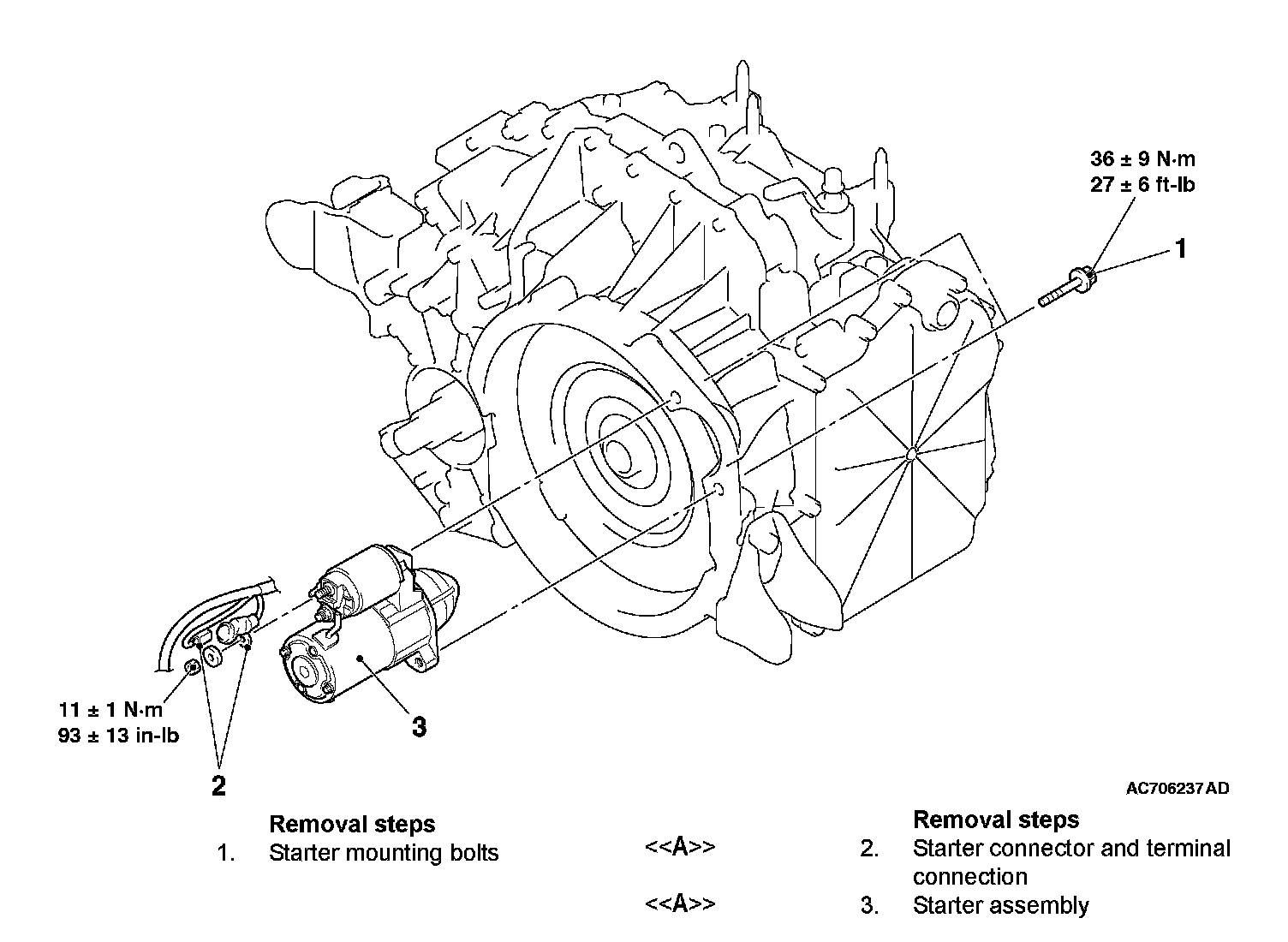

Removal Steps 1-3:

REMOVAL SERVICE POINT

[A] STARTER CONNECTOR AND TERMINAL/STARTER ASSEMBLY REMOVAL
1. Slide the starter assembly, and remove the starter connector and terminal.
2. Remove the starter assembly from the lower front of the engine.
