Removal and Replacement

REMOVAL AND INSTALLATION [2.0L ENGINE TURBO]

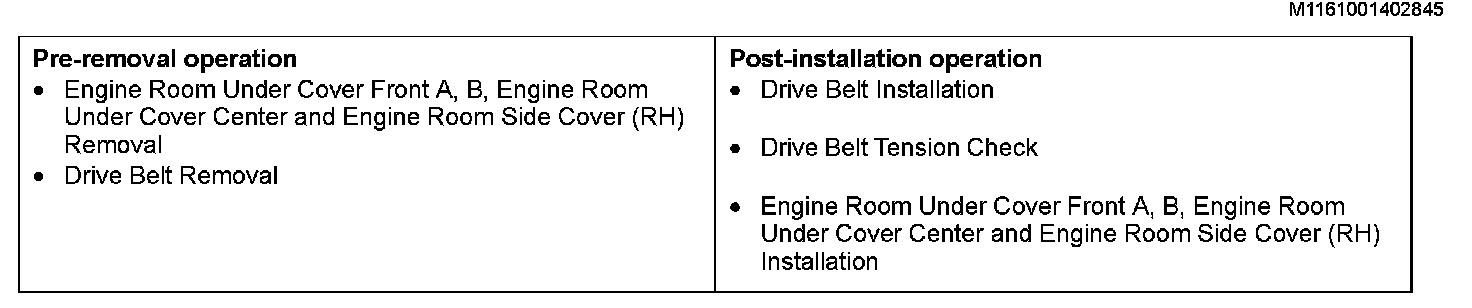

Pre-removal & Post-installation Operation:

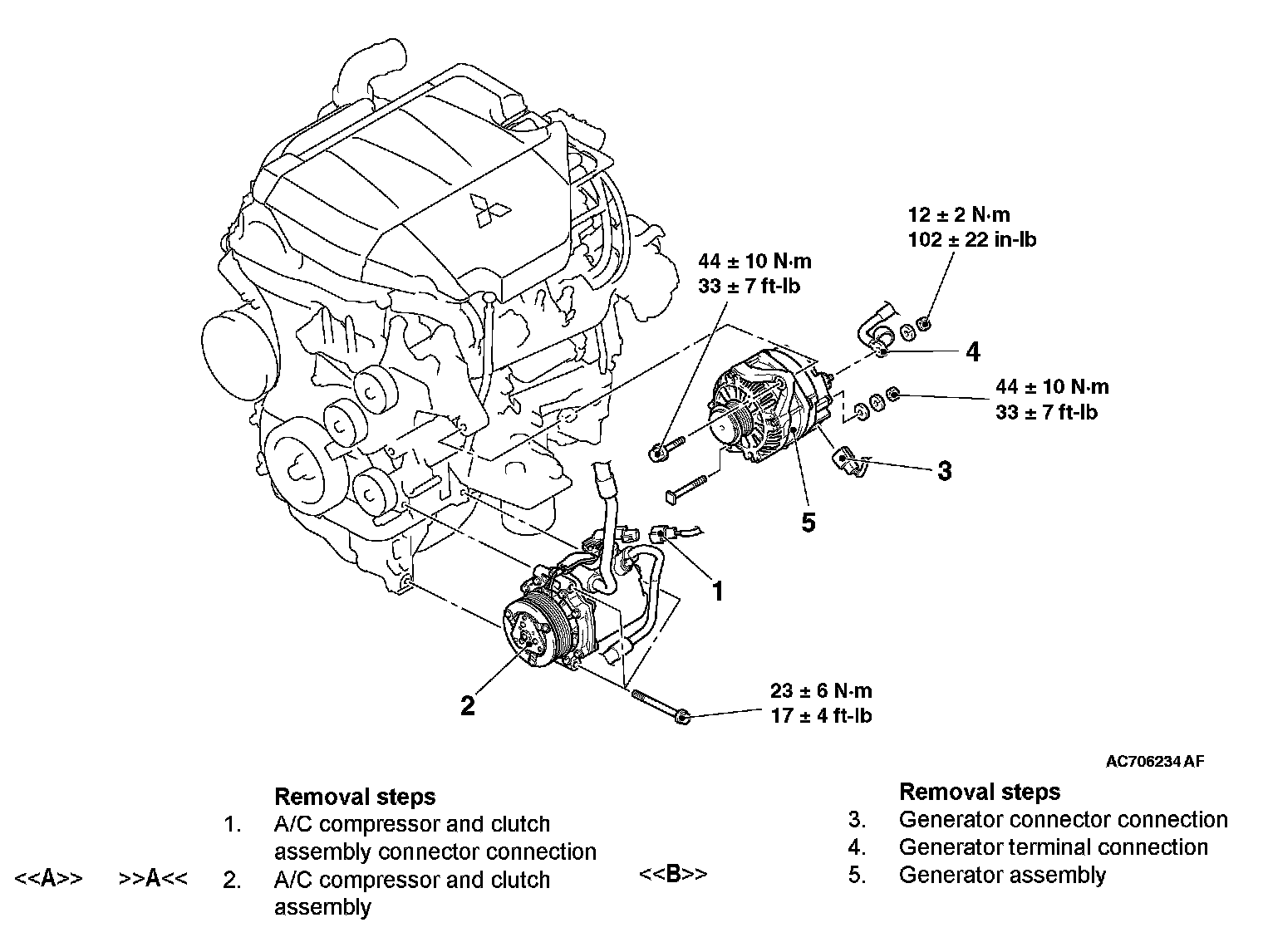

Removal Steps 1-5:

REMOVAL SERVICE POINTS

[A] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.
2. Tie the removed A/C compressor and clutch assembly with a string at a position where it will not interfere with the removal and installation of the generator assembly.

[B] GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly upward.

INSTALLATION SERVICE POINT

[A] A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION

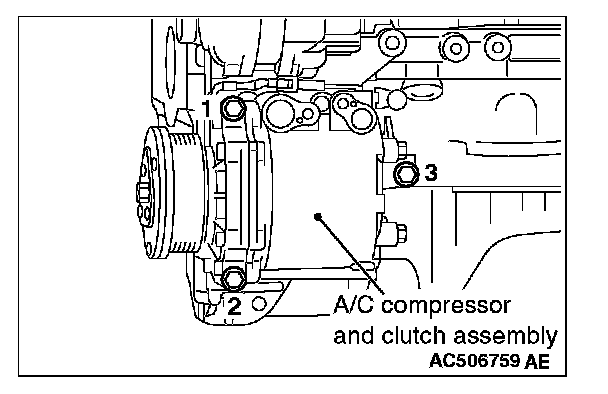

Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.

Tightening torque: 23 ± 6 N.m (17 ± 4 ft-lb)
