Home >> Mitsubishi >> 2009 >> Lancer Ralliart L4-2.0L Turbo (4B11T) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Overhaul >> Fastener Tightening Specifications

Fastener Tightening Specifications

FASTENER TIGHTENING SPECIFICATIONS

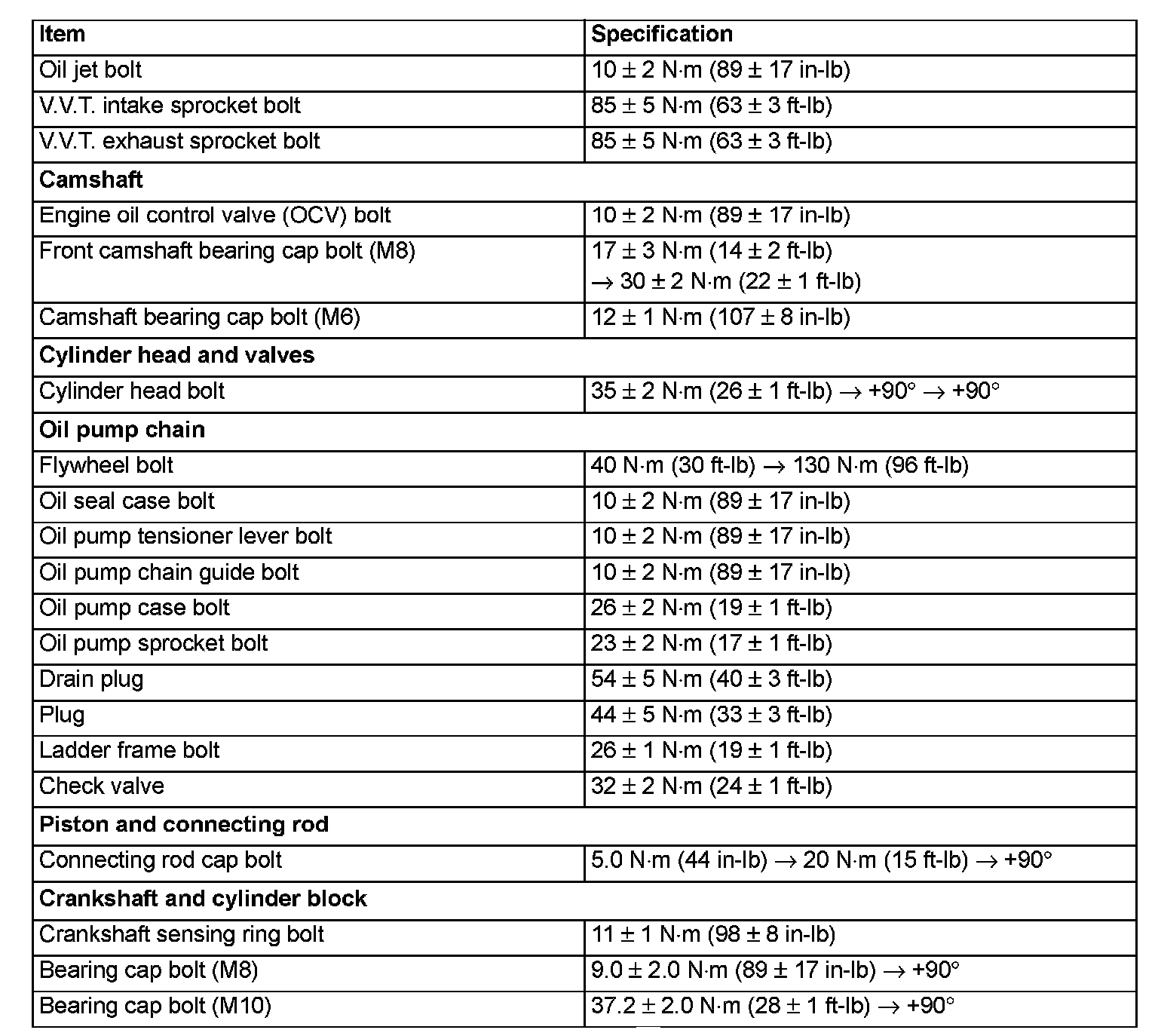

Part 1:

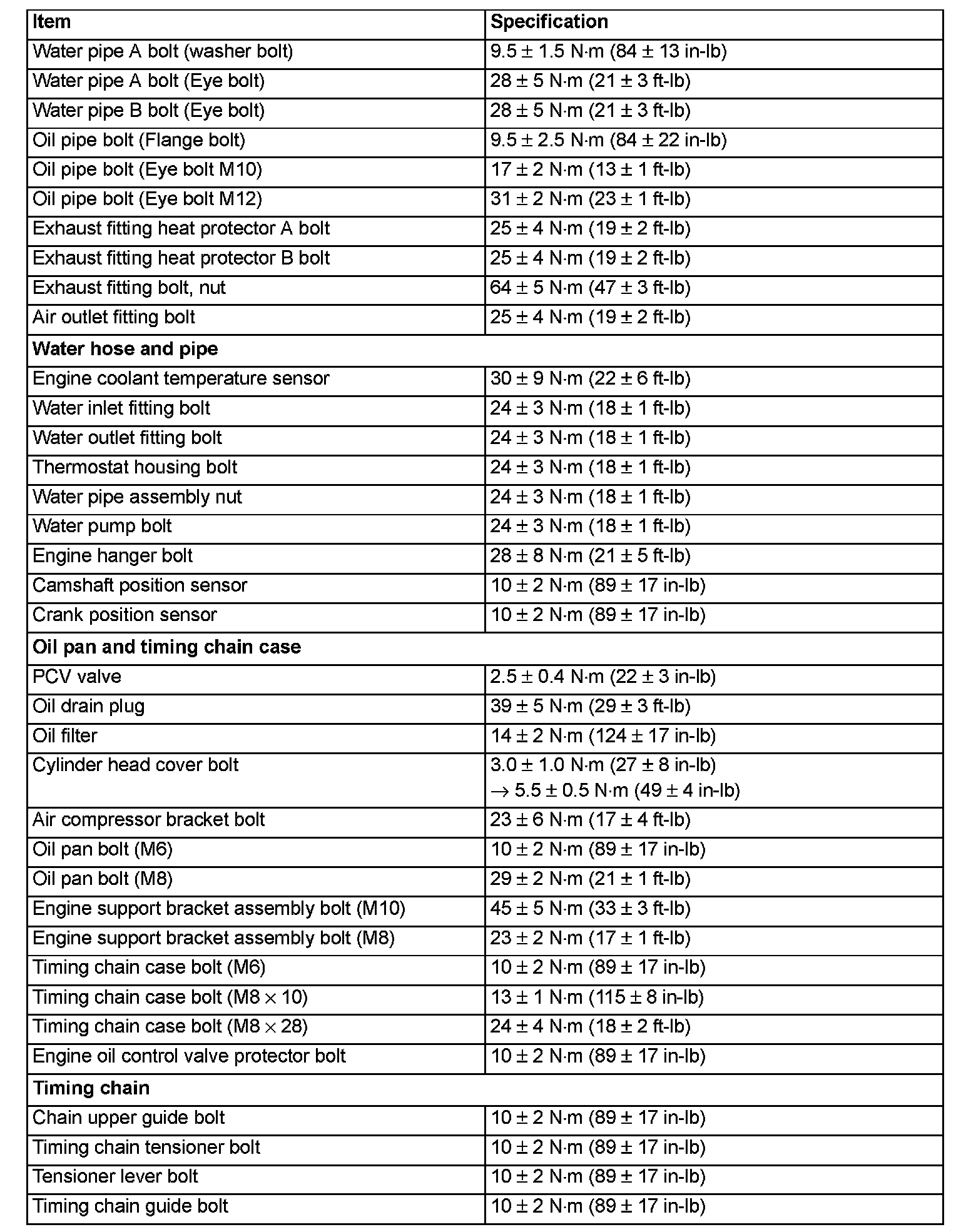

Part 2:

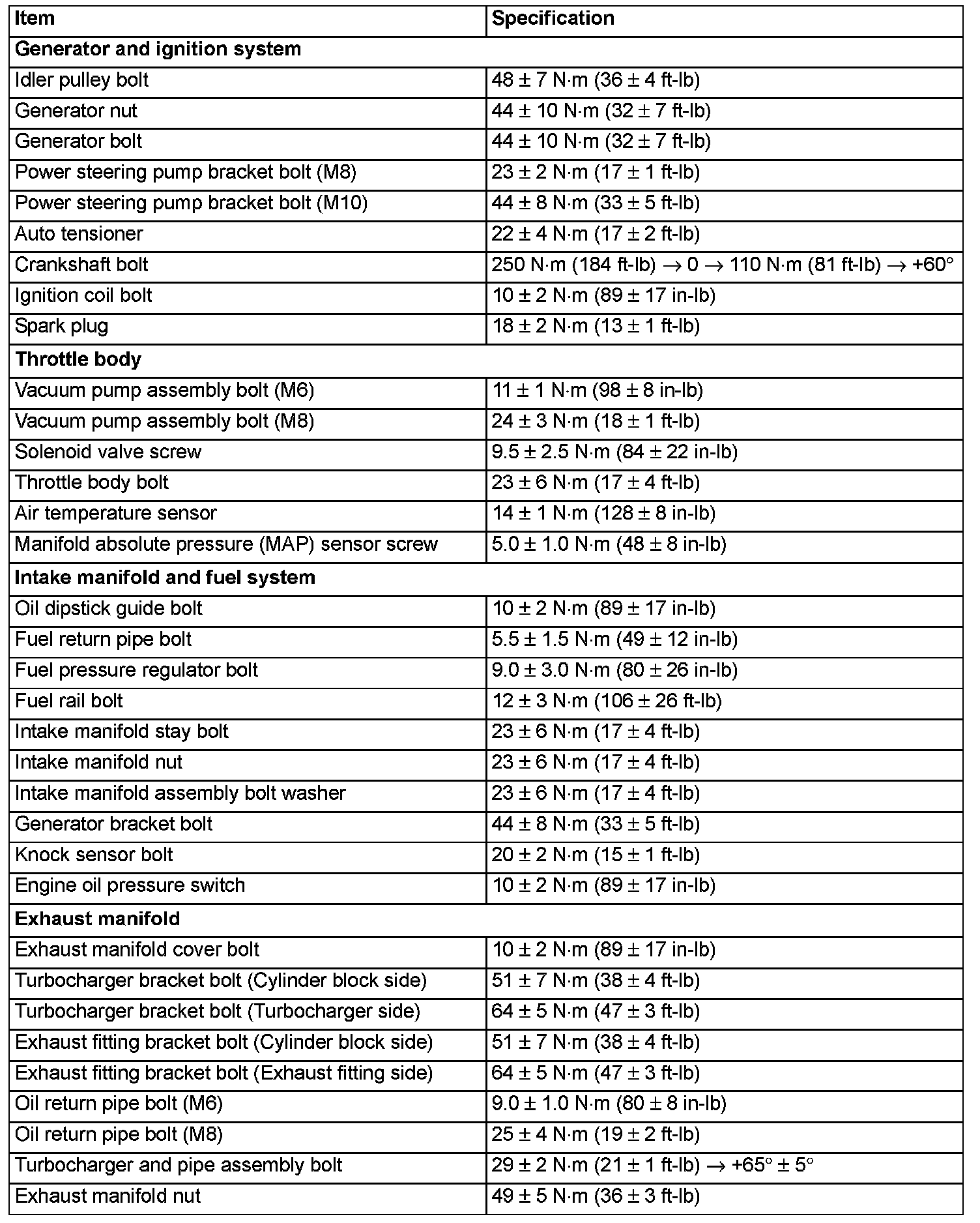

Part 3:






Cylinder head bolt reusability
Replace the cylinder head bolts and washers with new ones.
