Overhaul

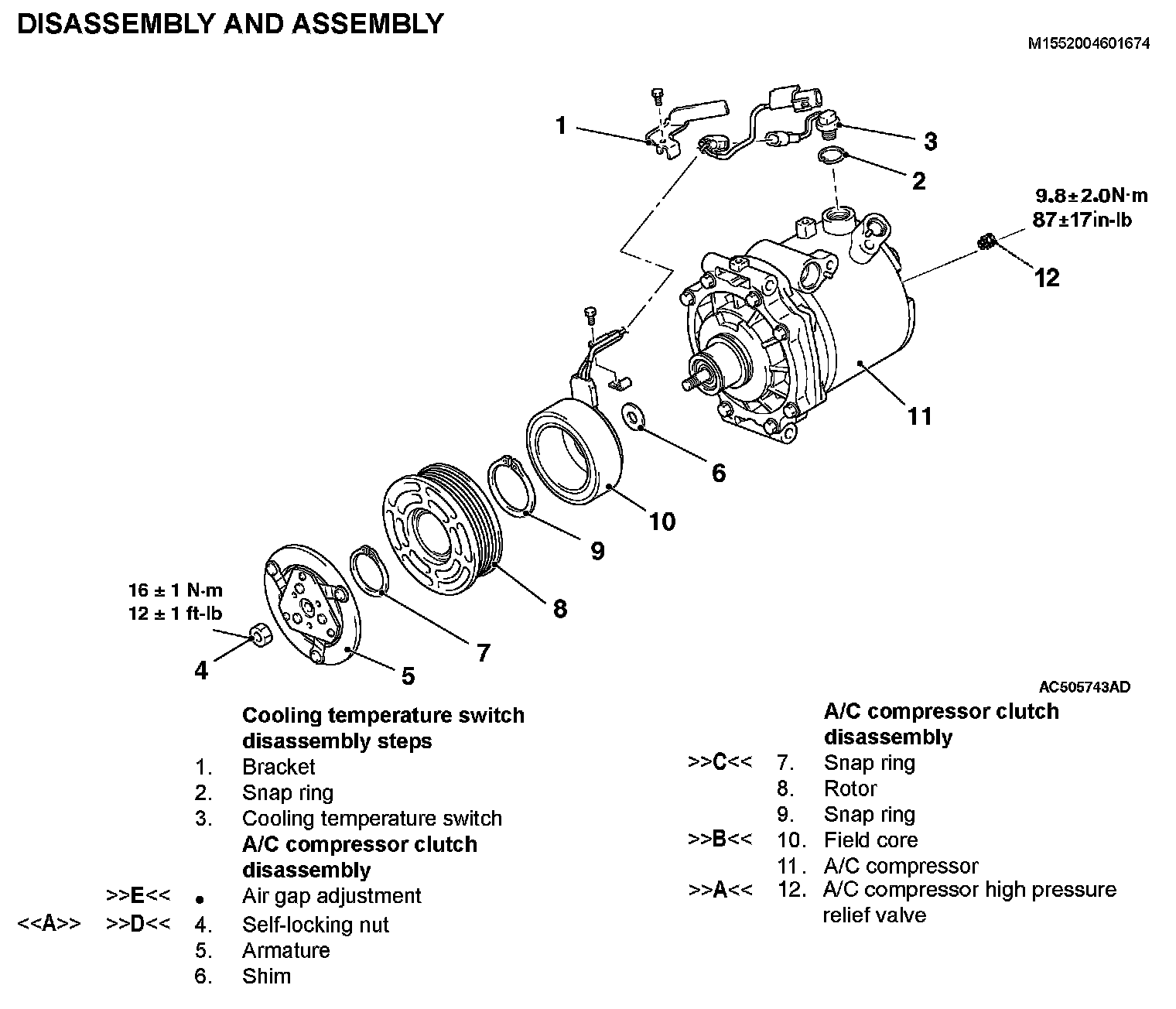

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-11:
Required Special Tools:
- MB991367: Special Spanner
- MB991386: Pin
DISASSEMBLY SERVICE POINT

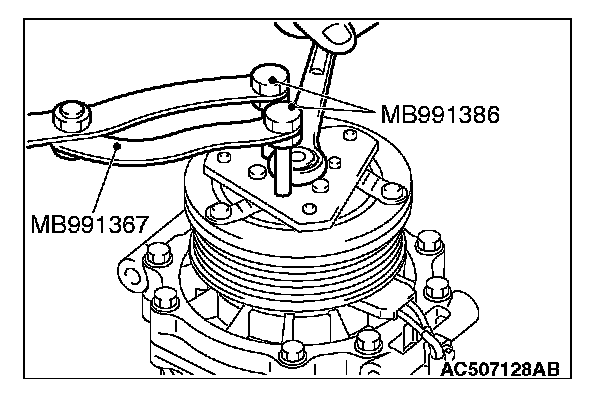

[A]SELF-LOCKING NUT REMOVAL
ASSEMBLY SERVICE POINTS.

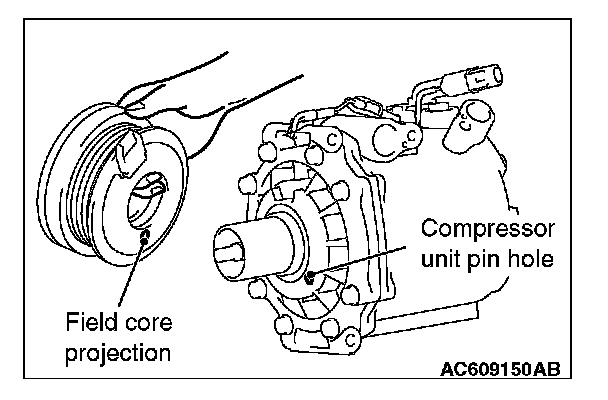

[A]FIELD CORE ATTACHMENT
Line up the pin hole on the compressor unit with the field core projection and attach.
[B]SNAP RING INSTALLATION
Using snap ring pliers, fit the snap ring so that the snap ring s tapered part is on the outside.
[C]SELF-LOCKING NUT INSTALLATION
Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.

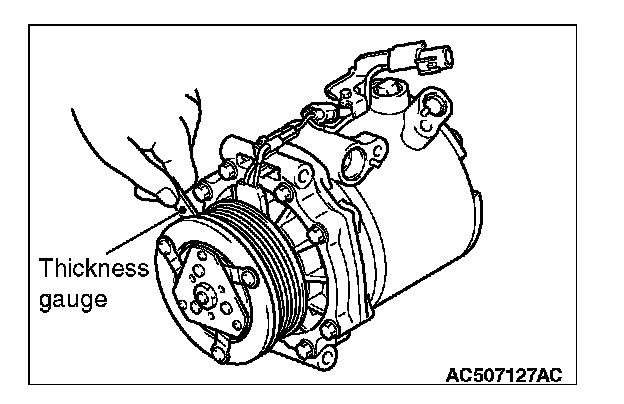

[D]AIR GAP ADJUSTMENT
Check whether or not the air gap of the clutch is within the standard value.
Standard value: 0.3 - 0.5 mm (0.012 - 0.020 inch)
NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
