Removal and Installation

INTAKE MANIFOLD

REMOVAL AND INSTALLATION [2.0L ENGINE TURBO]

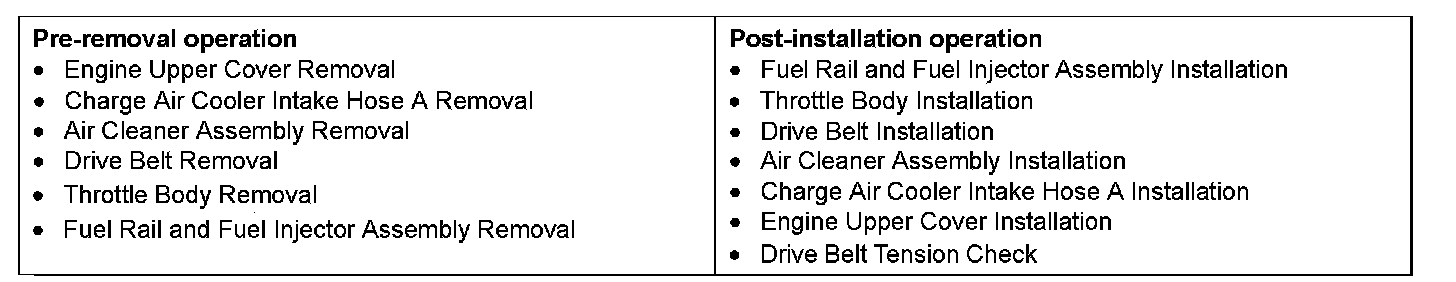

Pre-removal & Post-installation Operation:

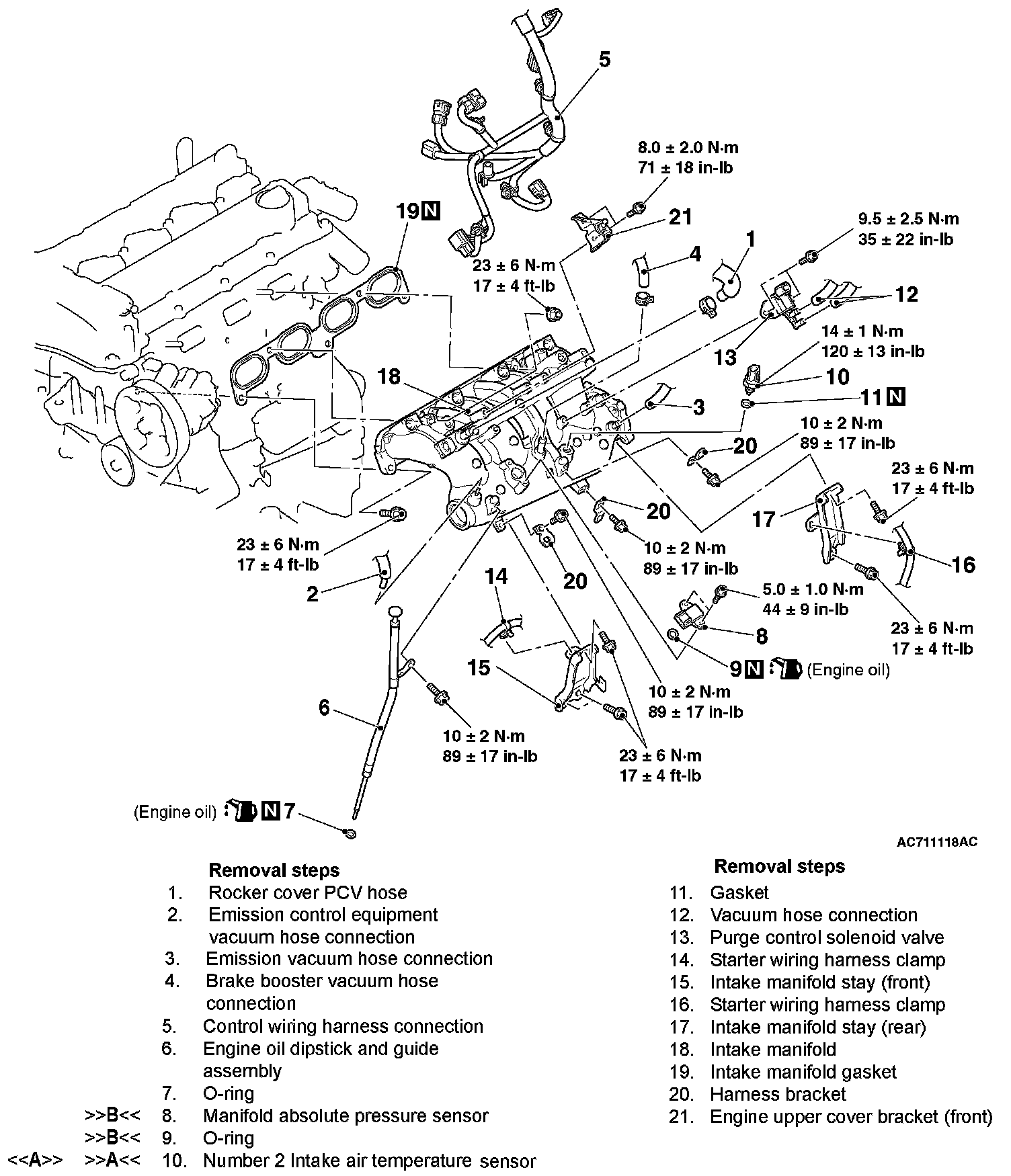

Removal Steps 1-21:

Required Special Tool:
- MB992188: Fuel Injection Pipe Wrench

REMOVAL SERVICE POINT

[[A]] NUMBER 2 INTAKE AIR TEMPERATURE SENSOR REMOVAL

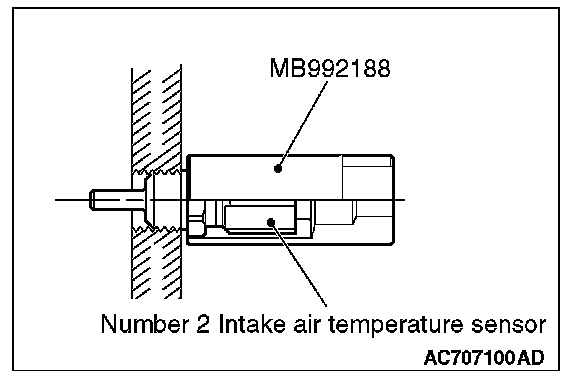

Use special tool MB992188 to remove the number 2 intake air temperature sensor.

INSTALLATION SERVICE POINTS

]]A[[ NUMBER 2 INTAKE AIR TEMPERATURE SENSOR INSTALLATION

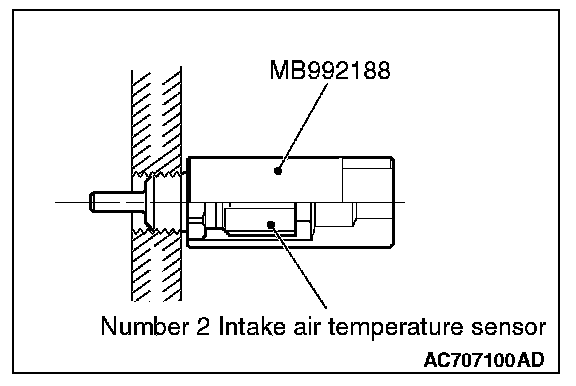

Tighten the number 2 intake air temperature sensor to the specified torque by using special tool MB992188.

Tightening torque: 14 ± 1 N.m (120 ± 13 in.lb)

]]B[[ O-RING/MANIFOLD ABSOLUTE PRESSURE SENSOR INSTALLATION

CAUTION:
- Install the manifold absolute pressure sensor, taking care that no shock is applied to it.
- Do not use a manifold absolute pressure sensor that has been dropped.

1. Apply a small amount of new engine oil to the O-ring.
2. Install the manifold absolute pressure sensor to the intake manifold with care not to damage the O-ring.
