Removal and Replacement

HOOD

Hood Removal And Installation [Ralliart]

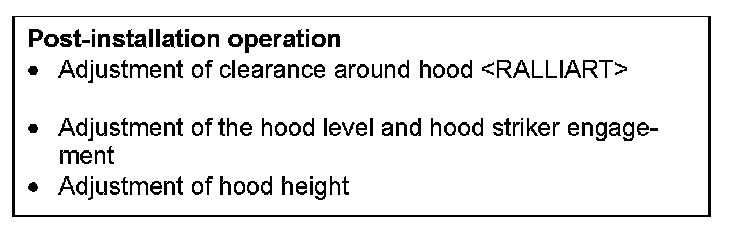

Post-installation Operation:

Removal Steps 1-10:

REMOVAL SERVICE POINTS

[[A]] HOOD AIR OUTLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air outlet garnish assembling clips.

[[B]] HOOD AIR INLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air inlet garnish assembling clips.
