Antenna, Radio: Service and Repair

REMOVAL AND INSTALLATION

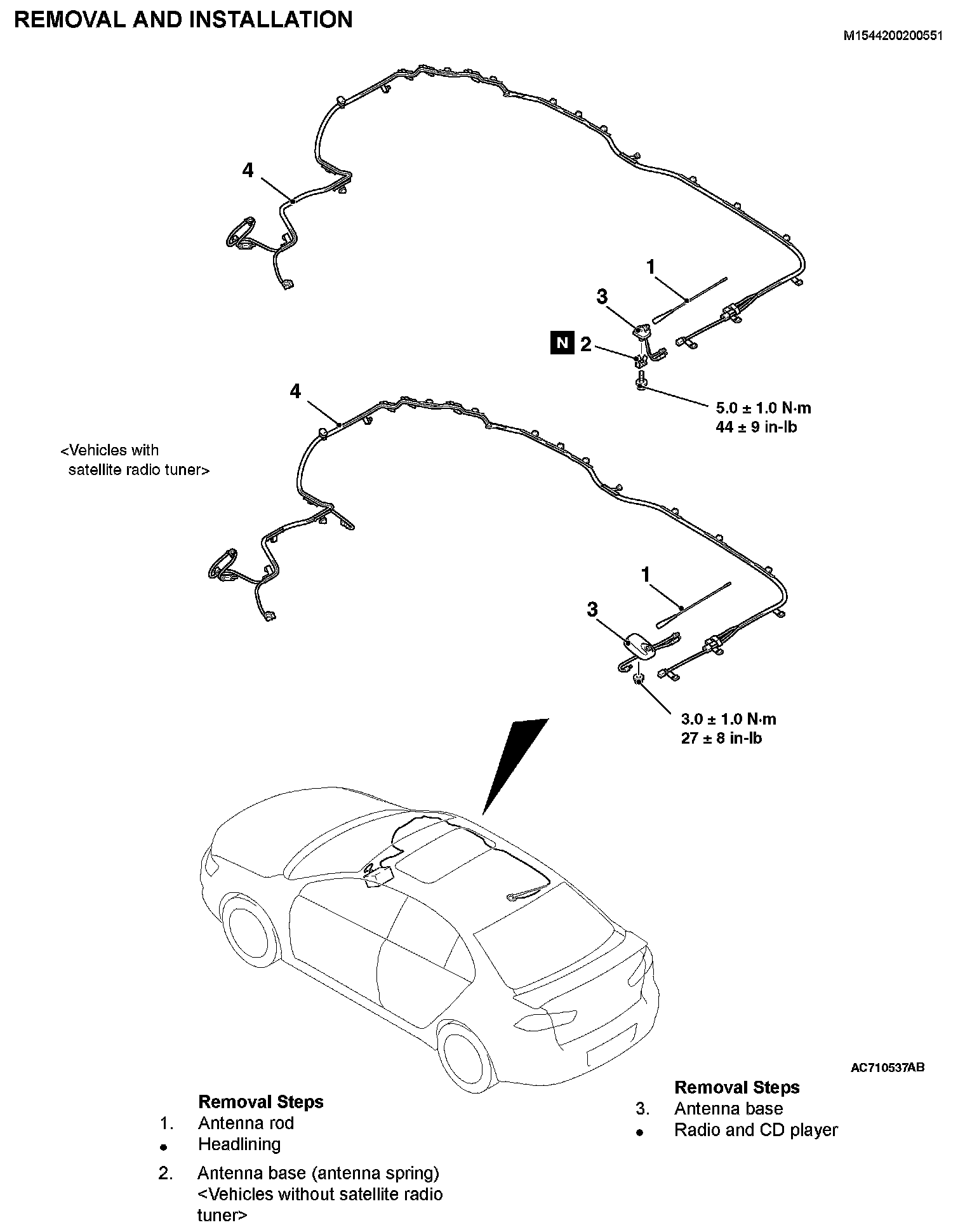

Removal Steps 1-4 (Part 1):

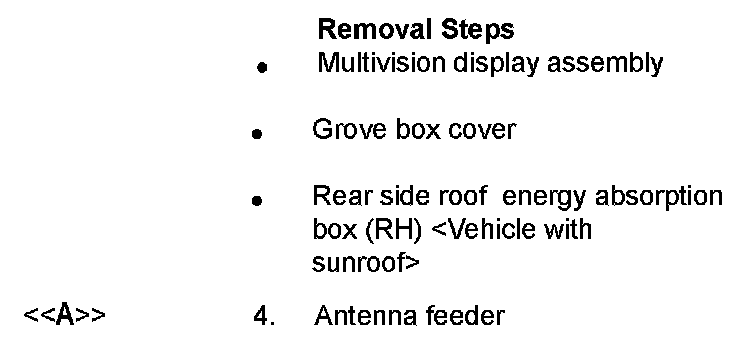

Removal Steps 1-4 (Part 2):

REMOVAL SERVICE POINT

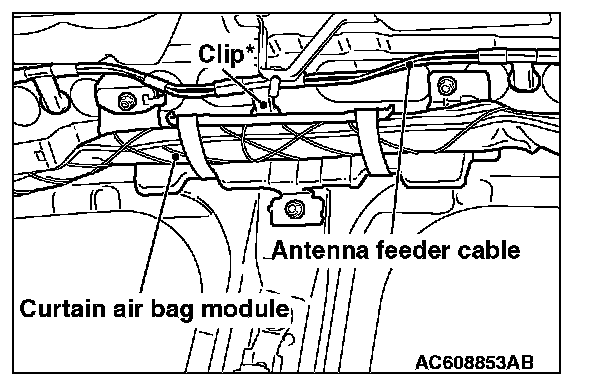

[A] REMOVAL OF ANTENNA FEEDER







Remove a part of the curtain airbag module, and remove the clip* of antenna feeder. [Vehicles with sun roof]
