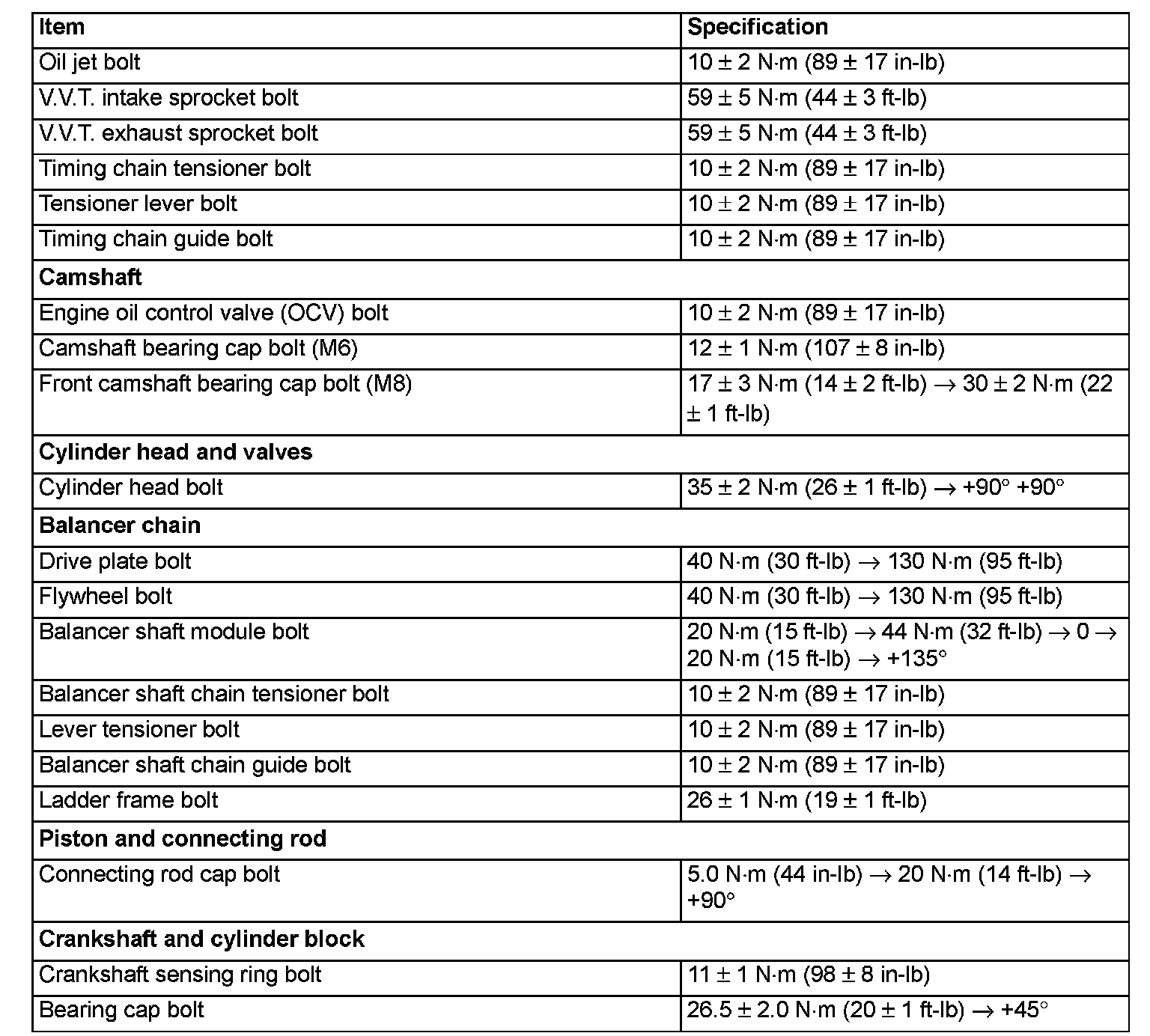

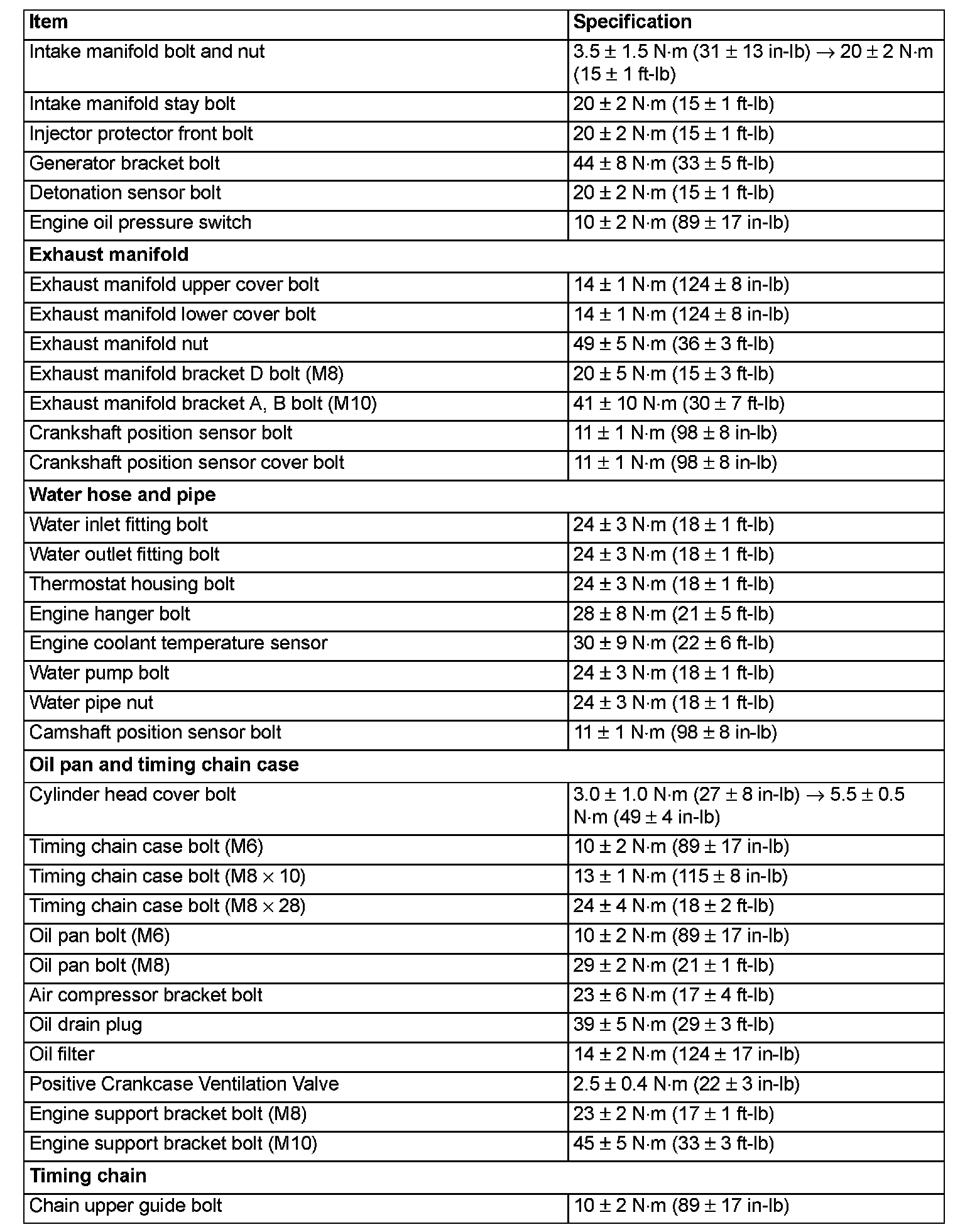

TORQUE SPECIFICATIONS

Part 1:

Part 2:

Part 3:

NEW TIGHTENING METHOD BY USING PLASTIC REGION TIGHTENING BOLT
Plastic region tightening bolts are used in some parts of the engine. Install these bolts according to the method described in the body of the manual because the tightening method of these bolts are different from the conventional method. The service limit is determined for these bolts. Be sure to strictly follow the service limit described in the body of the manual.
^ Parts to be used
1. Cylinder head bolt
2. Bearing cap bolt
3. Connecting rod cap bolt

^ Tightening method
After tightening to the specified tightening torque, further tighten 90° and 90°, or 180° (90° + 90°). Follow the tightening method described in the body of the manual because the tightening method differs from part to part.

Cylinder head bolt reusability
Replace cylinder head bolts with a new ones.

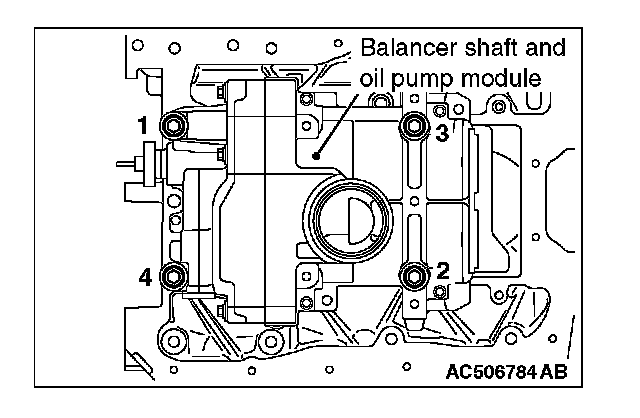

Oil Pump Module Bolts
First Pass 20 Nm (15 ft-lb)
Second Pass 44 Nm (33 ft-lb)
Third Pass Loosen all the way
Fourth Pass 20 Nm (15 ft-lb)
Final Pass 135 degree
