Washer System Inspection

INSPECTION

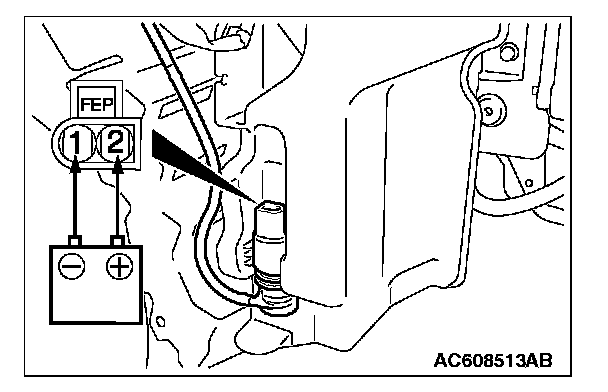

WINDSHIELD WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.







2. Check to see that the water is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to ground.

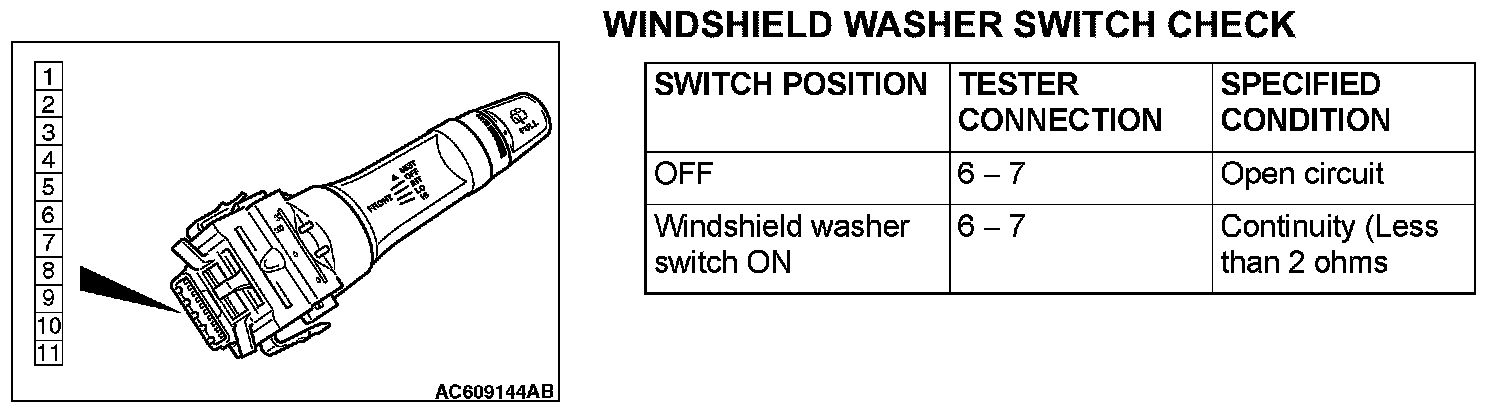

WINDSHIELD WASHER SWITCH CHECK

Windshield Washer Switch Check:

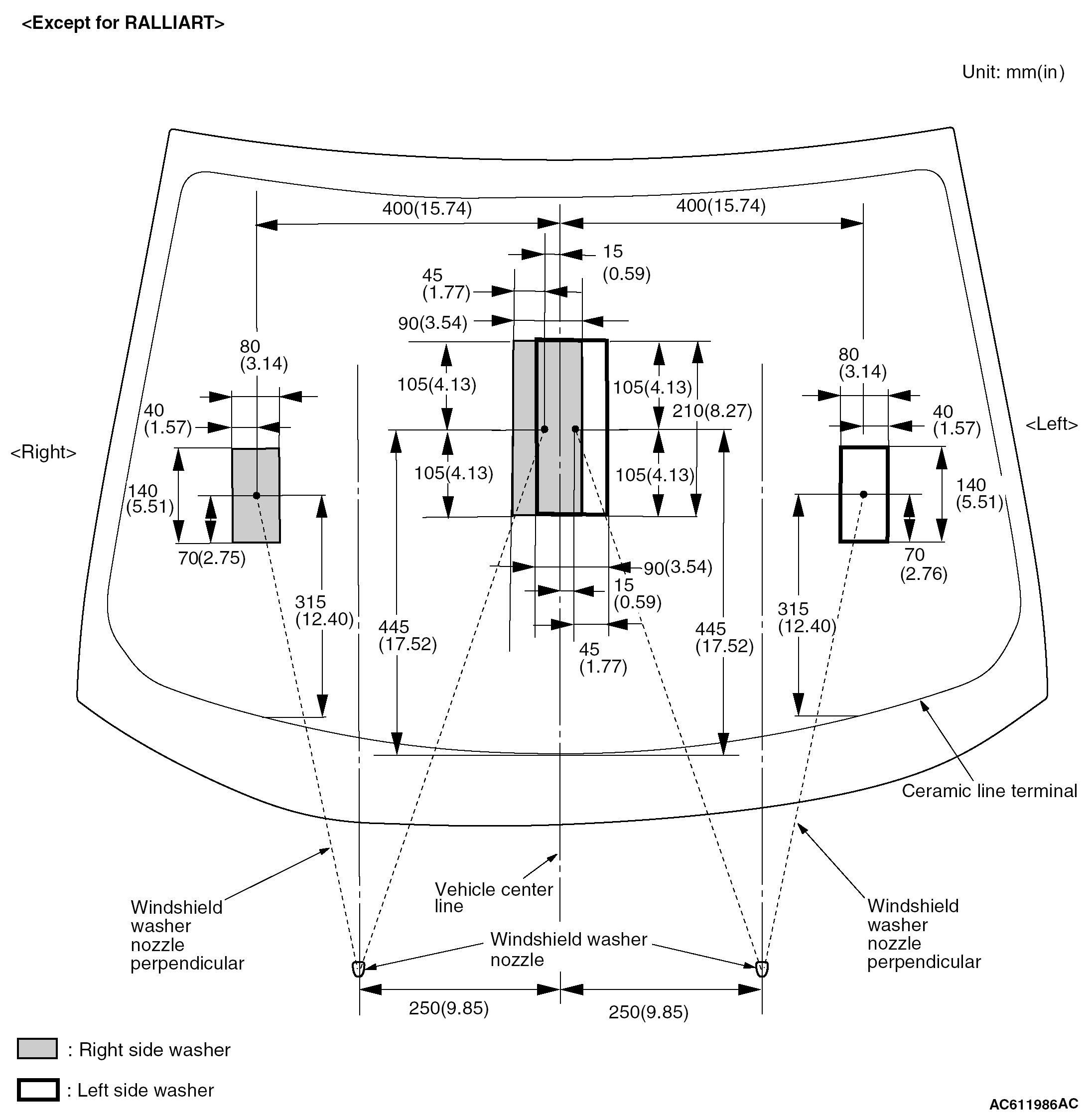

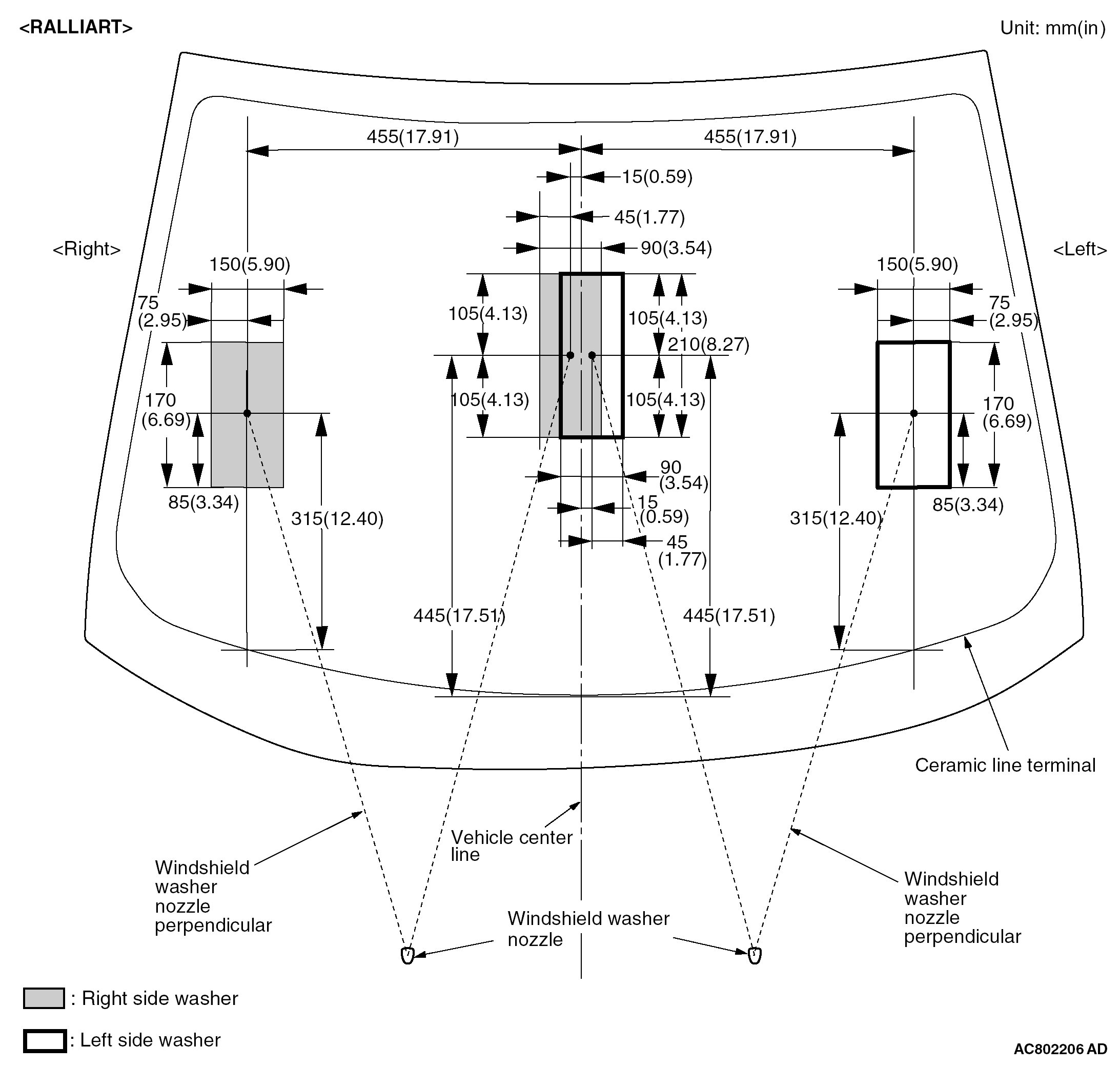

WINDSHIELD WASHER FLUID EJECTION CHECK

NOTE: As the nozzle cannot adjust the splashing points, if the splashing point of the washer fluid is different from the figure, replace the nozzle.
