Special Function Reference Table

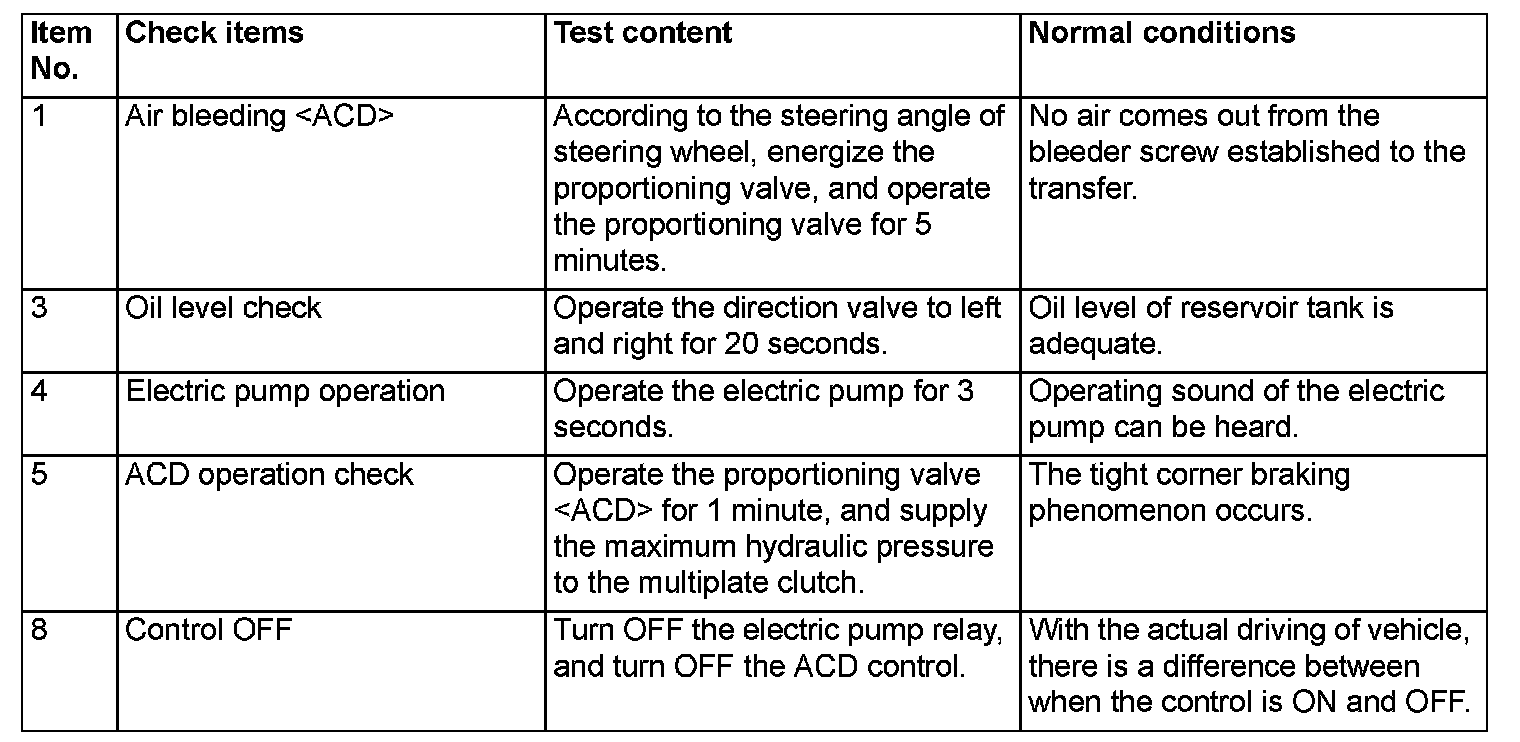

SPECIAL FUNCTION REFERENCE TABLEACTUATOR TEST TABLE
1. The actuator test can be performed only when all the following conditions are satisfied.
^ Every wheel speed sensor input is 20 km/h or less.
^ No system malfunction is detected.
^ The steering angle of steering wheel is within ±30° from the neutral position.
2. With the actuator test, when any of the conditions below is met, the forced activation will be cancelled.
^ Any of the wheel speed sensors detects an input of 20 km/h or more (excluding item No.8 "Control OFF").
^ A system malfunction is detected.
^ The forced activation time has elapsed.
^ Scan tool is removed.
^ Scan tool clear key is operated.
SENSOR NEUTRAL POSITION LEARNED INITIALIZATION LIST
The sensor neutral position learned value initialization can be performed only when the vehicle is stopped.
