Removal and Replacement

TRANSAXLE ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
^ The part indicated by the *1 mark should be temporarily tightened, and then fully tightened with the engine and transaxle assembly weight applied on the vehicle body.
^ The parts indicated by the *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal & Post-installation Operation:

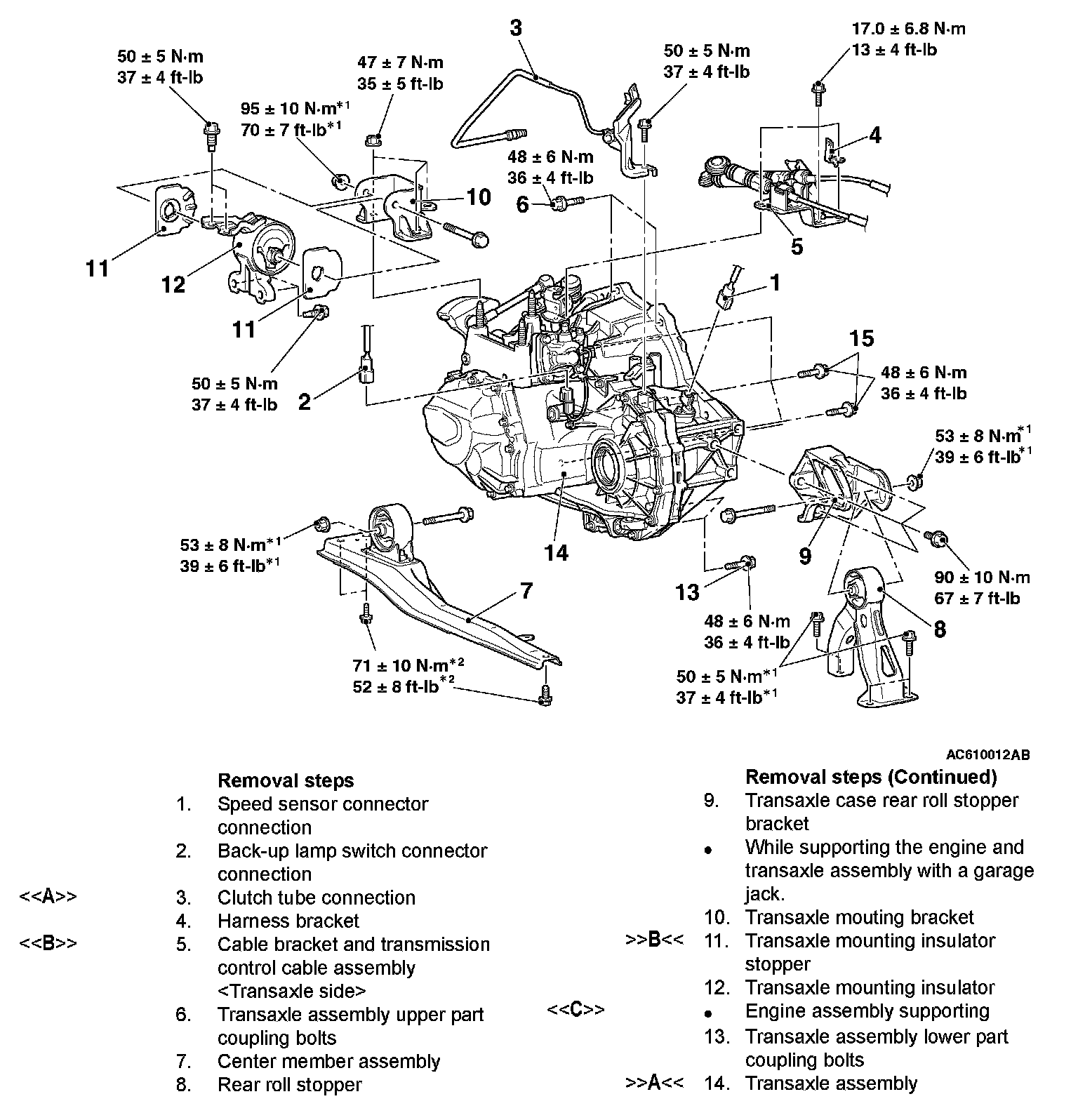

Removal Steps 1-14:

Required Special Tools:
^ MB990900 or MB991164: Door adjusting wrench
^ MB991895: Engine Hanger
^ MB991928: Engine Hanger
^ MB991930: Joint (90)
^ MB991932: Foot (standard)
^ MB992201: Engine hanger plate

REMOVAL SERVICE POINTS

[[A]] CLUTCH TUBE REMOVAL

CAUTION:

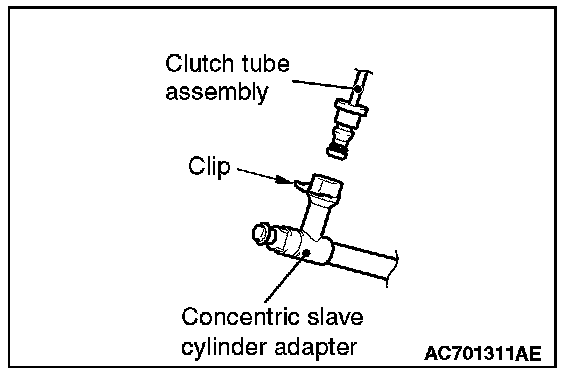

^ Do not remove the O-rings and the clips from the clutch tube and the concentric slave cylinder adapter.
^ If the O-rings or the clips of the clutch tube and the concentric slave cylinder adapter are damaged, replace each assembly.

[[B]] CABLE BRACKET AND TRANSMISSION CONTROL CABLE ASSEMBLY REMOVAL [TRANSAXLE SIDE]

CAUTION:

Be careful not to pull out the cable directly to disconnect the joint because the cable could be broken.

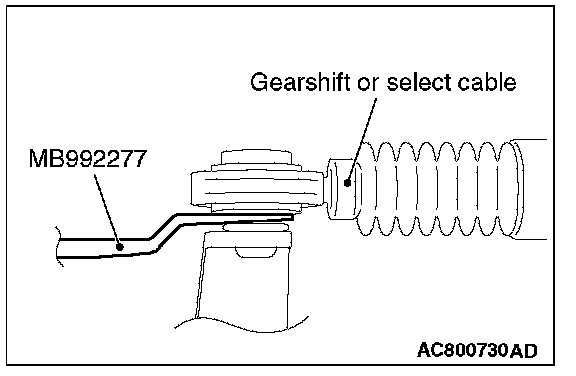

Use the clip remover (special tool: MB992277), and disconnect the joint.

[[C]] ENGINE ASSEMBLY SUPPORTING





1. Remove the vacuum pipe assembly and install the engine hanger plate (special tool: MB992201) to the position as shown in the figure.
2. [When engine hanger (Special tool: MB991928) is used]

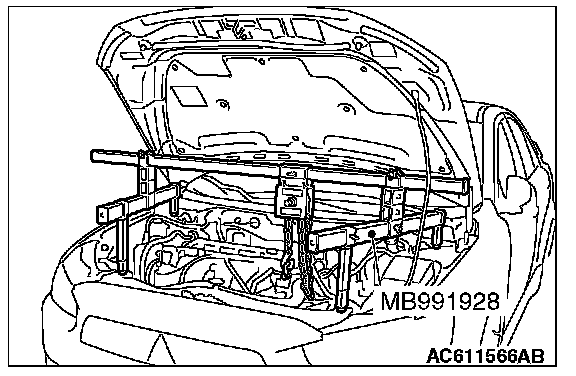

1) Assemble the engine hanger (Special tool: MB991928) (Set the components below to the base hanger.)
^ Slide bracket (HI)
^ Foot x 4 (standard) (MB991932)

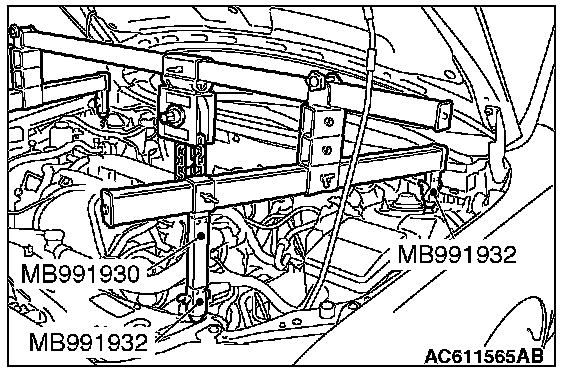

2) Set the feet of the special tool as shown in the figure.

NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).





3) Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
3. [When using engine mechanical hanger (Special tool: MB991895)]

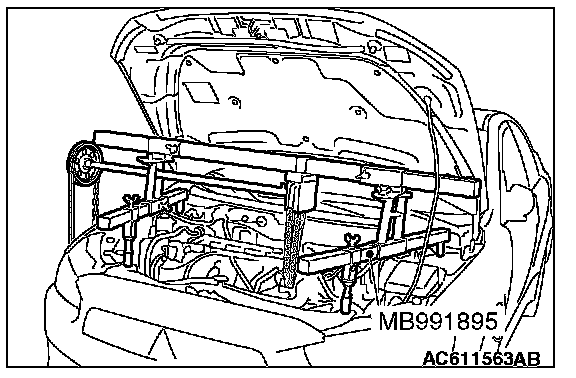

1) Set the foot of the engine mechanical hanger (Special tool: MB991895) as shown in the figure.

NOTE: Slide the front foot of the engine mechanical hanger (Special tool: MB991895) to balance the engine hanger





2) Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

INSTALLATION SERVICE POINTS

]]A[[ TRANSAXLE ASSEMBLY INSTALLATION

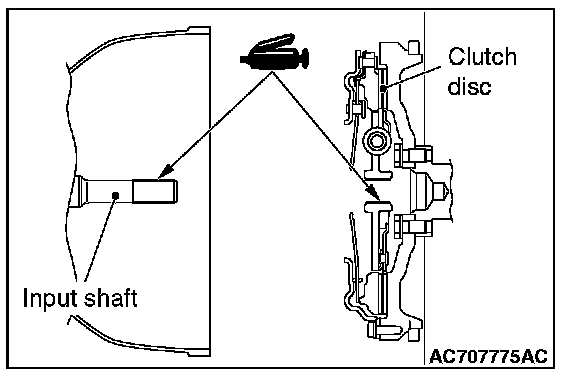

When installing the transaxle assembly, apply the specified grease to the spline of clutch disc and input shaft.

Specified grease: Mitsubishi Part No.0101011 or equivalent

]]B[[ TRANSAXLE MOUNTING INSULATOR STOPPER INSTALLATION

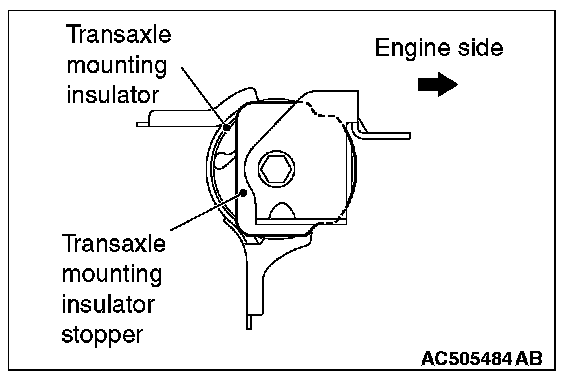

Install the transaxle mounting insulator stopper as shown in the figure.
