Select Lever

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

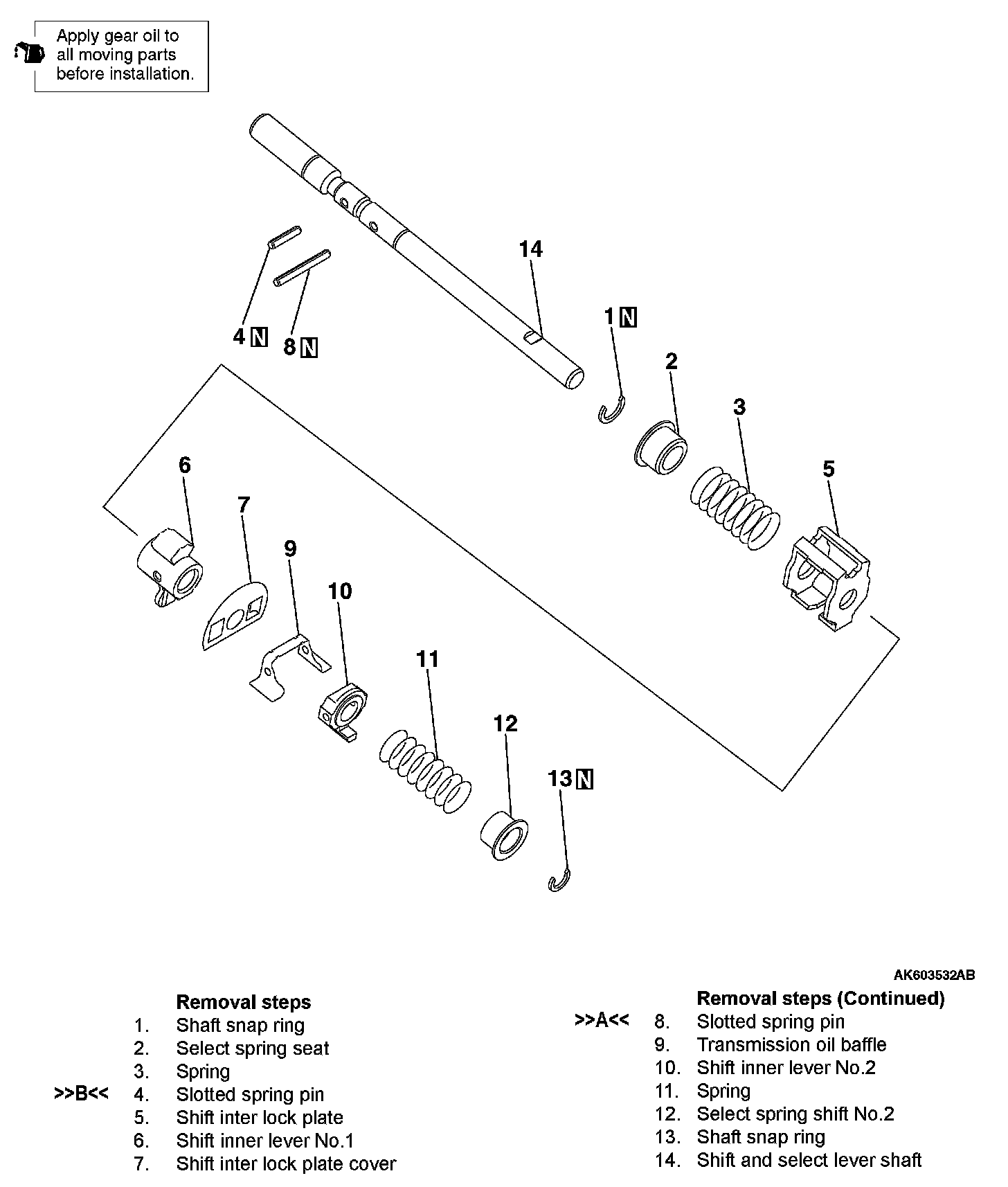

Removal Steps 1-14:





ASSEMBLY SERVICE POINTS

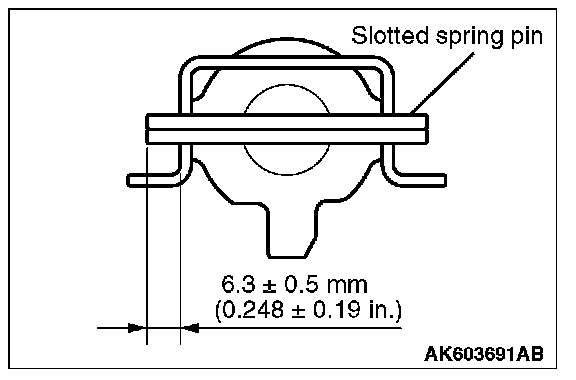

]]A[[ SLOTTED SPRING PIN INSTALLATION





Drive in the slotted spring pin to the illustrated dimension.

]]B[[ SLOTTED SPRING PIN INSTALLATION





Drive in the slotted spring pin to the illustrated dimension.
