Flex Plate
>>
Specifications
Flex Plate: Specifications

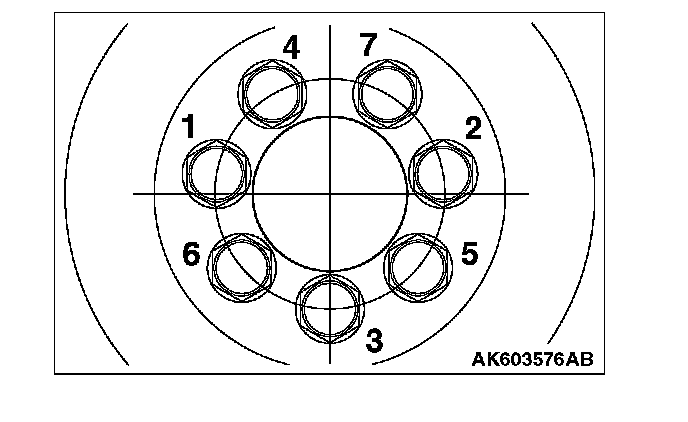

Flywheel bolts - First Pass
40 Nm 30 ft-lb
Flywheel bolts - Final Pass
130 Nm 96 ft-l
