Shift Lock Mechanism Check

SHIFT LOCK MECHANISM CHECK

SYSTEM CHECK





COMPONENT PARTS CHECK

SHIFT LOCK LINK

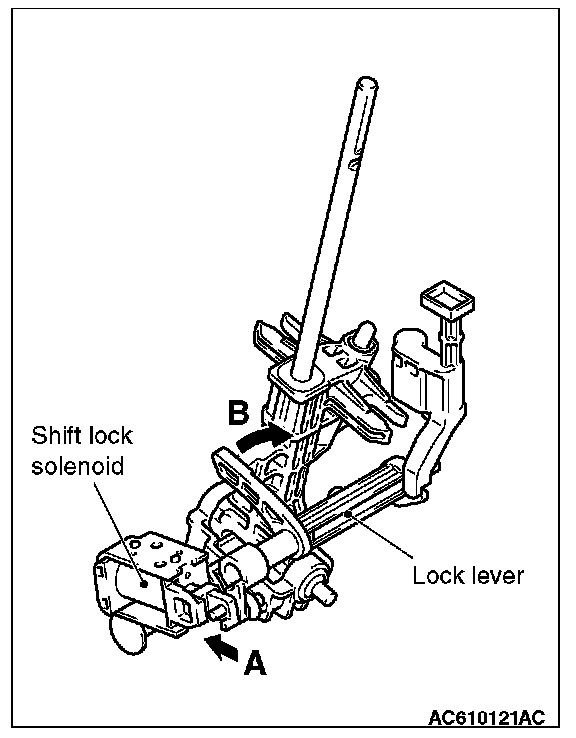

Check each part for damage and disengagement. Check that the lock lever smoothly moves in the direction of arrow B in the figure when the shift lock solenoid plunger is pressed in the direction of arrow A, and smoothly moves back to the original position when the plunger is released.

ELECTRICAL CIRCUIT





Check for the following operations.
1. Shift the selector lever to P position.

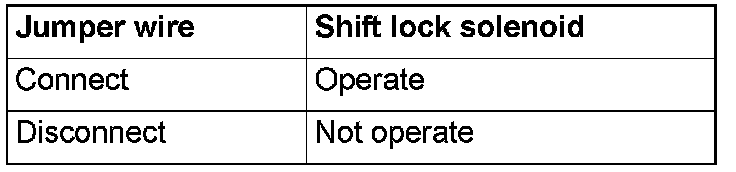

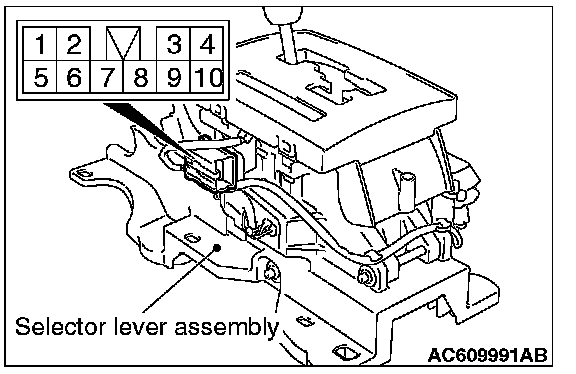

2. Using a jumper wire, connect the battery (+) to the selector lever assembly connector terminals No. 3 and No. 4, and the battery (-) to the terminal No. 6. Then, check the operation of shift lock solenoid.
