Shift Interlock: Service and Repair

CVT KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable.

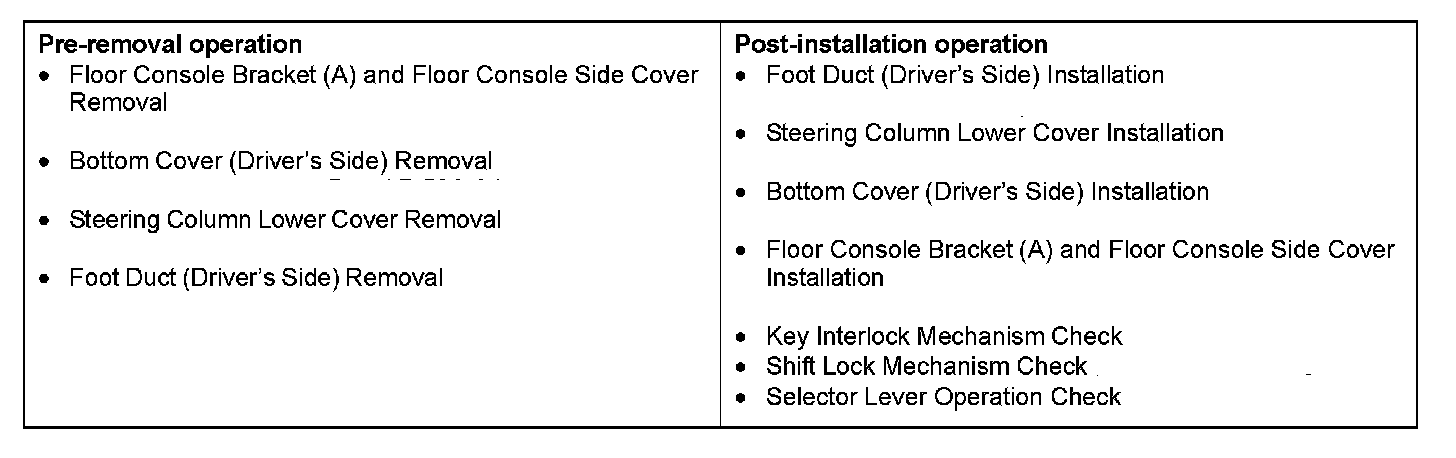

Pre-removal & Post-installation Operation:

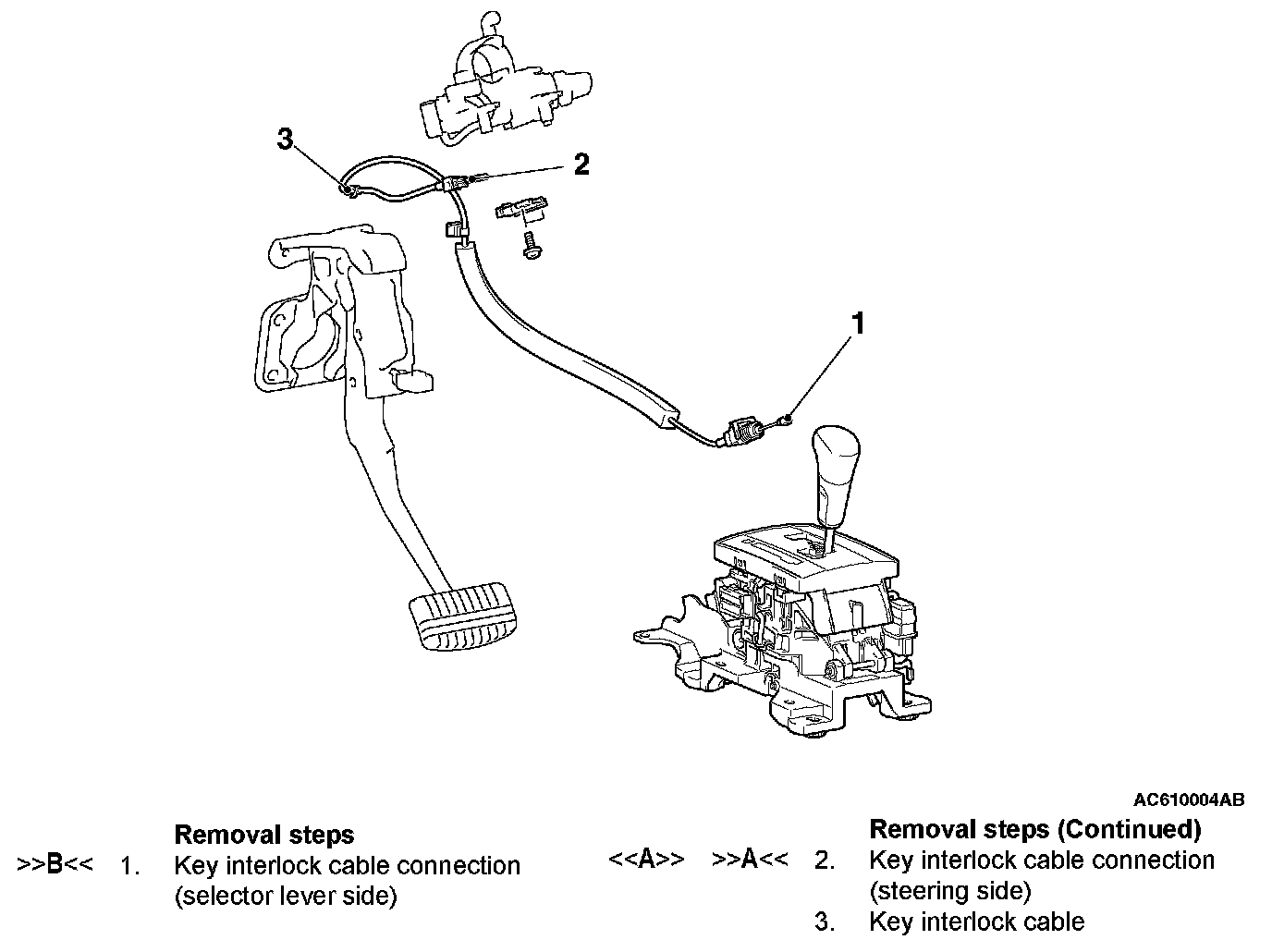

Removal Steps 1-3:

REMOVAL SERVICE POINT

[[A]] KEY INTERLOCK CABLE (STEERING SIDE) REMOVAL
Turn the ignition switch to the "ACC" position and then pull the key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINTS

]]A[[ KEY INTERLOCK CABLE (STEERING LOCK CYLINDER SIDE) INSTALLATION
Turn the ignition switch to the "ACC" position and then install the key interlock cable to the ignition key cylinder.

]]B[[ KEY INTERLOCK CABLE INSTALLATION

CAUTION:
Leave the ignition switch in the "LOCK" (OFF) position until the key interlock cable installation is completed.

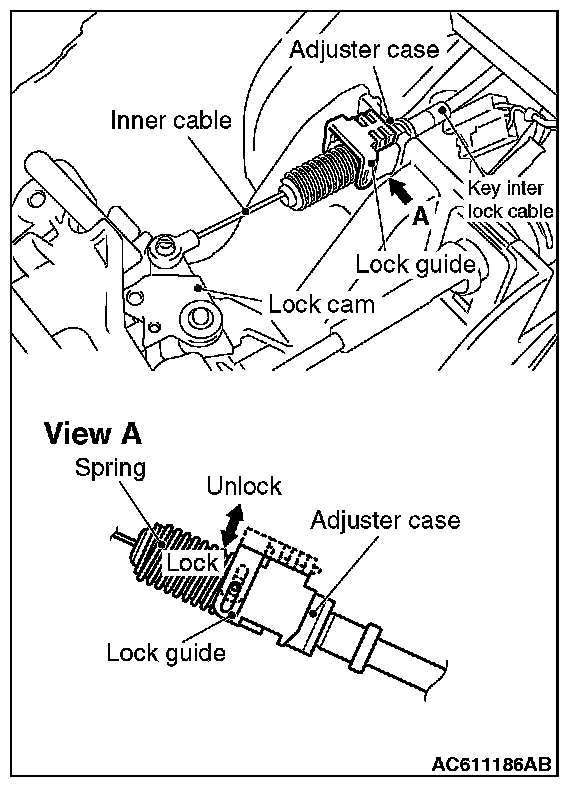

1. Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.





2. Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
3. Install the adjuster case with its lock guide pulled up (unlocked).
4. Securely push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
