Engine Controls - Revised ECM Output Voltage

No: TSB-09-13-001

DATE: October, 2009

MODEL: See below

SUBJECT:
CHANGE IN OUTPUT VOLTAGE FROM ENGINE ECM - SERVICE MANUAL REVISION

PURPOSE

On affected vehicles, power supply voltage for the crank angle sensor and cam position sensor output from the engine control module (ECM) has been changed from 5V to 16V. Depending on the actual vehicle production date, the ECM reference voltage could be either 5V or 16V.

When troubleshooting an affected vehicle with a replacement ECM, remember that the ECM referenced voltage could be either 5V or 16V.

This bulletin contains revised service manual wiring diagrams and troubleshooting procedures for DTC P0335, P0340, and P0365 to include the new ECM output voltage. Only the voltage value has been changed.

AFFECTED VEHICLES
2009 Lancer produced since July 2008 (except 2.0L turbocharged engine)

2009 Lancer Sportback produced since July 2008 (except 2.0L turbocharged engine)

2008-2009 Outlander produced since July 2008

AFFECTED SERVICE MANUALS
Diagnostic troubleshooting pages for DTC P0335, P0340, P0365:

2009 Lancer - various pages in Groups 13A and 13C; page 90-66
2009 Lancer Sportback - various pages in Group 13B; page 90-68
2008 Outlander - various pages in Groups 13A and 13-B; pages 90-48 and 90-60
2009 Outlander - various pages in Groups 13A and 13-B; pages 90-48 and 90-60

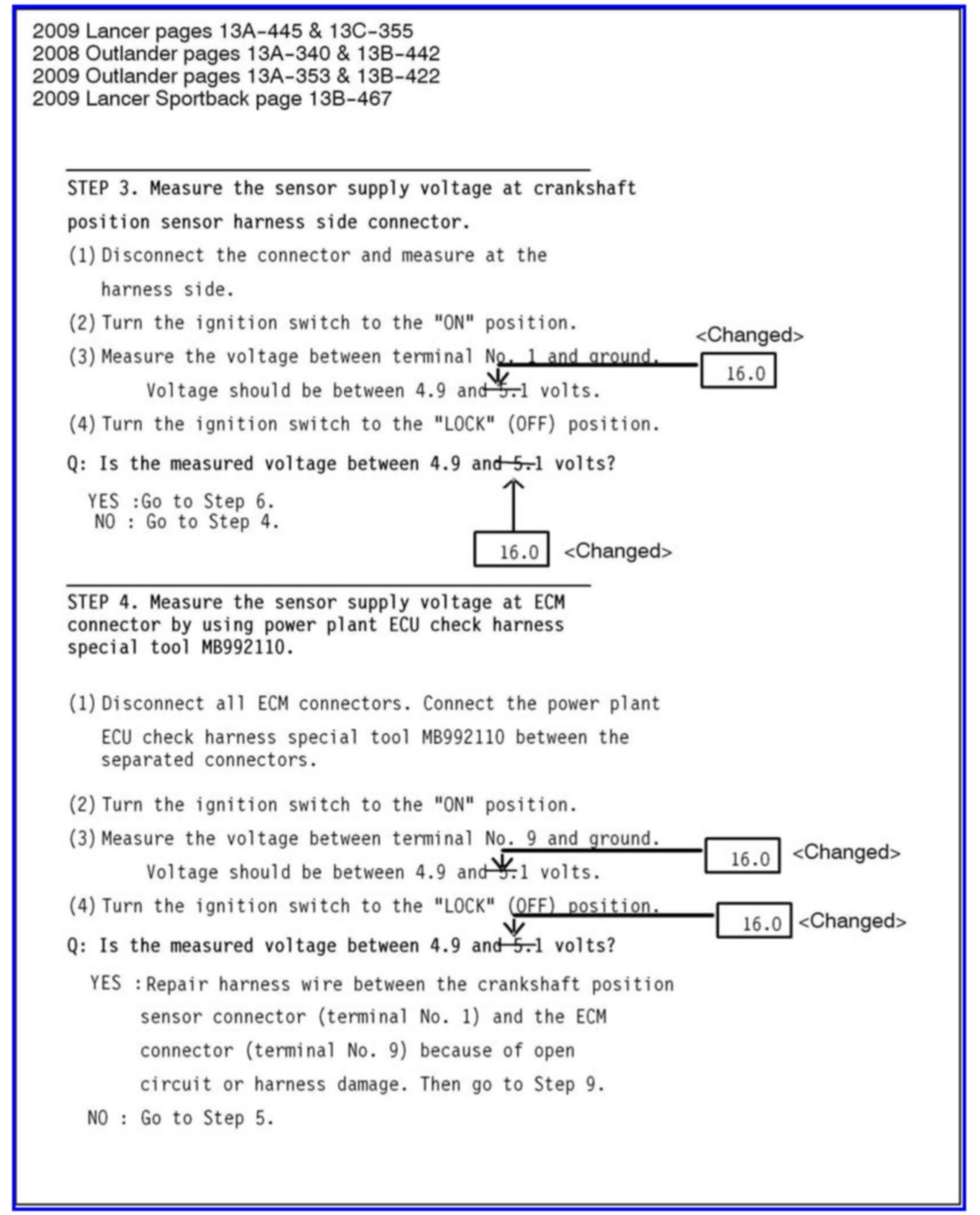

2009 Lancer pages - 13A-445 & 13C-355
2008 Outlander pages 13A-340 & 13B-442
2009 Outlander pages 13A-353 & 13B-422
2009 Lancer Sportback page 13B-467

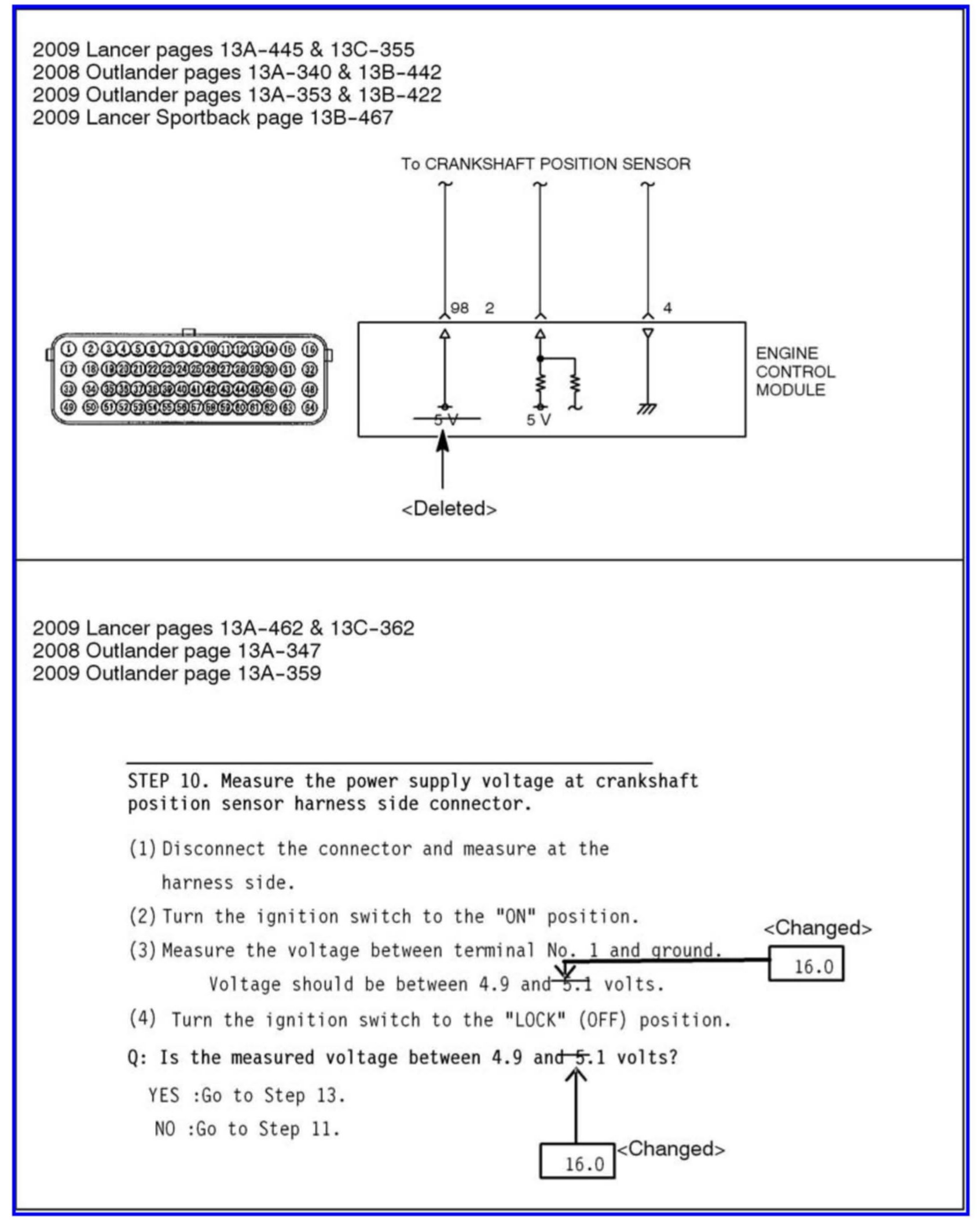

2009 Lancer pages 13A-462 & 13C-362
2008 Outlander pages 13A-347
2009 Outlander page 13A-359





2009 Lancer pages 13A-445 & 13C-355
2008 Outlander pages 13A-340 & 13B-442
2009 Outlander pages 13A-353 & 13B-422
2009 Lancer Sportback page 13B-467

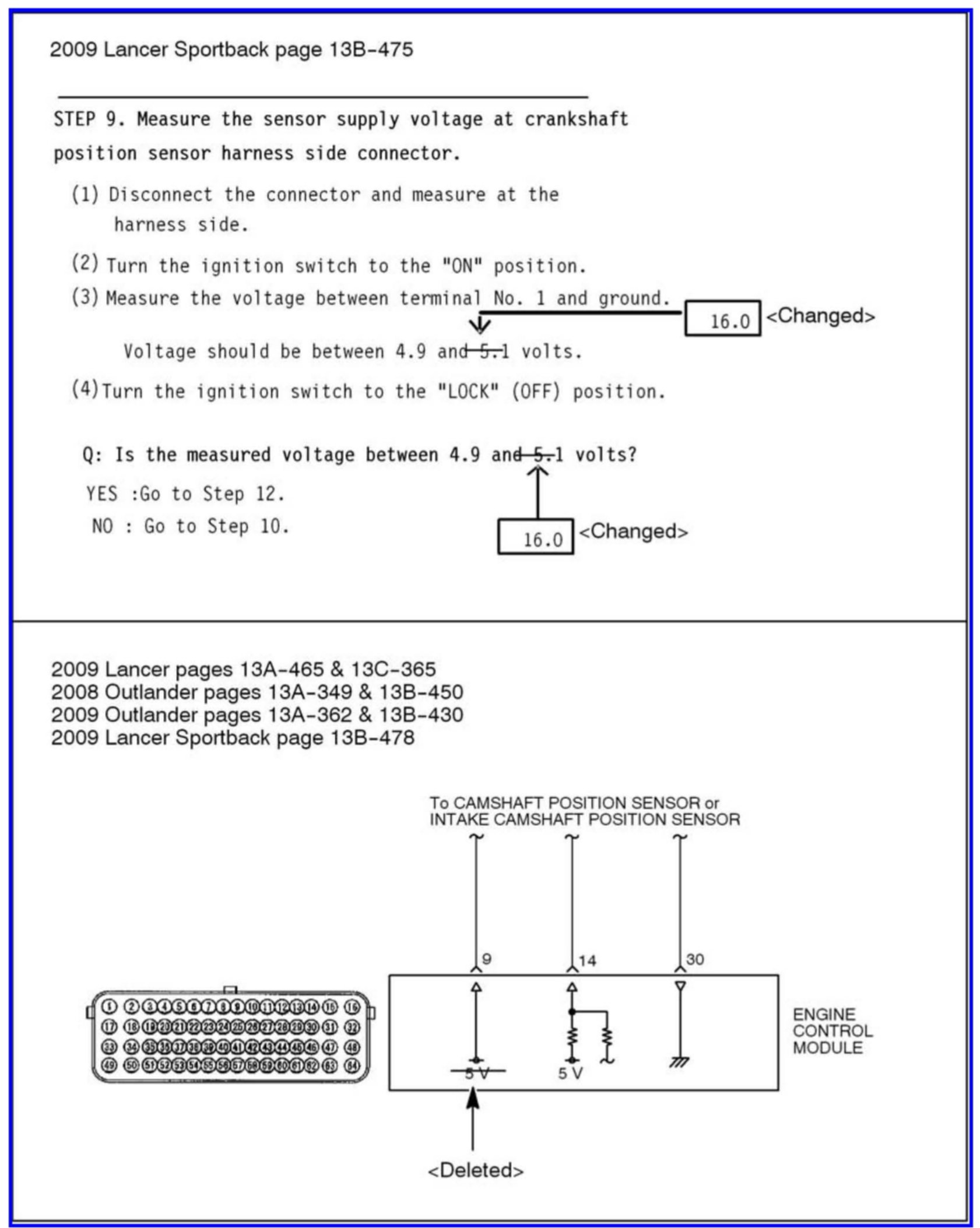

2009 Lancer Sportback page 13B-475

2009 Lancer pages 13A-465 & 13C-365
2008 Outlander pages 13A-349 & 13B-450
2009 Outlander pages 13A-362 & 13B-430
2009 Lancer Sportback page 13B-478





2009 Lancer pages 13A-471 & 13C-371
2008 Outlander page 13A-356
2009 Outlander page 13A-368

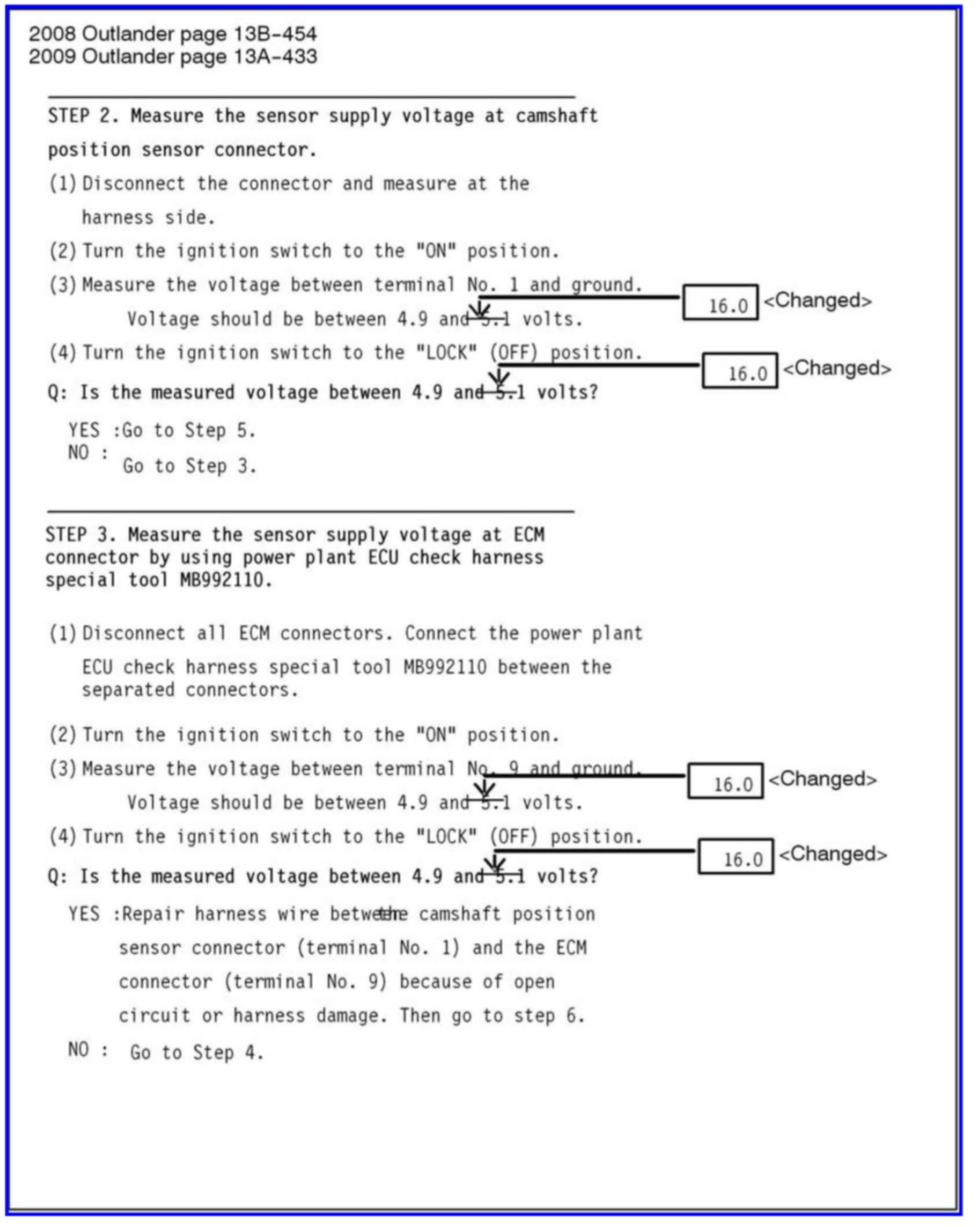

2008 Outlander page 13B-454
2009 Outlander page 13A-433

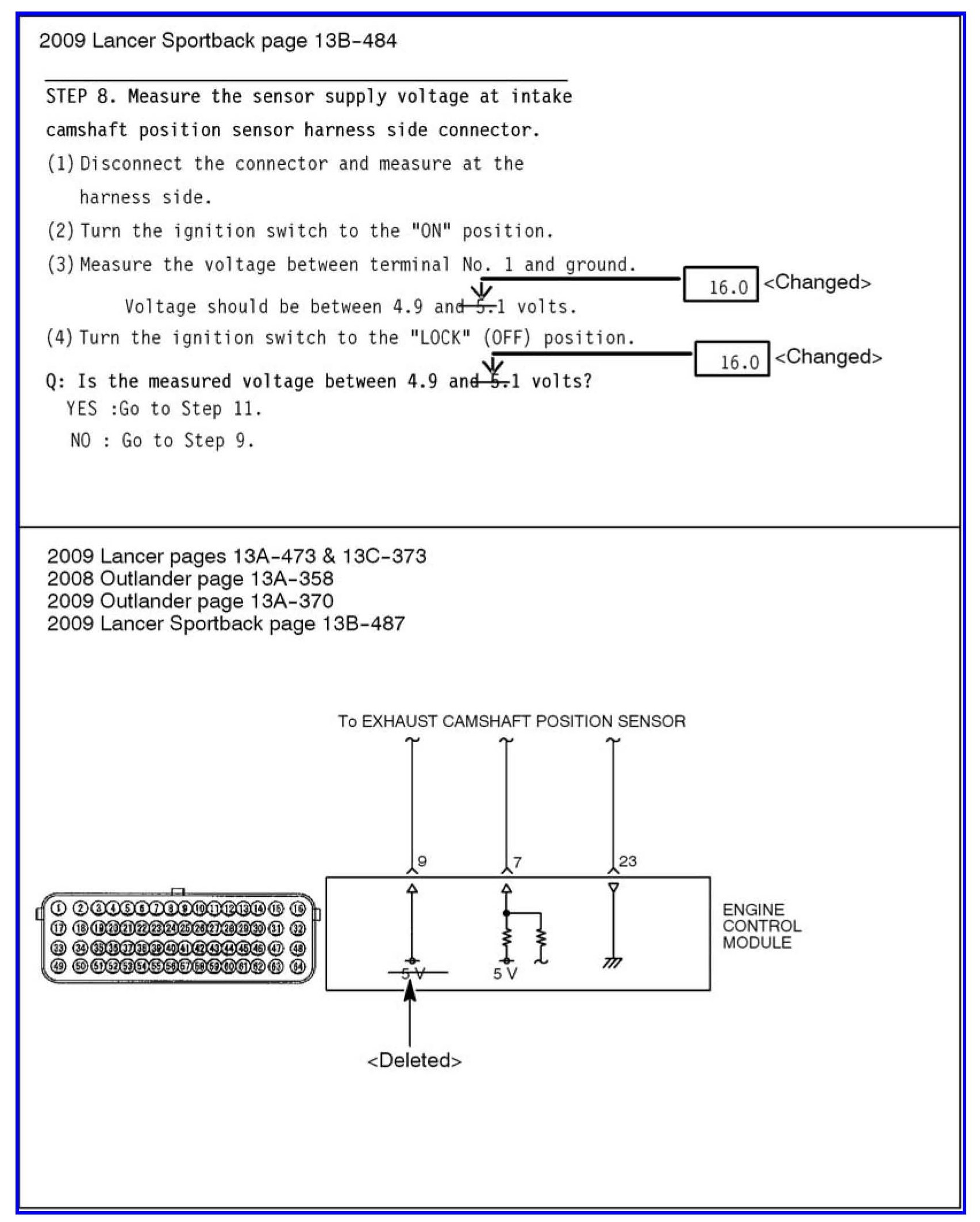

2009 Lancer Sportback page 13B-484

2009 Lancer pages 13A-473 & 13C-373
2008 Outlander page 13A-358
2009 Outlander page 13A-370
2009 Lancer Sportback page 13B-487

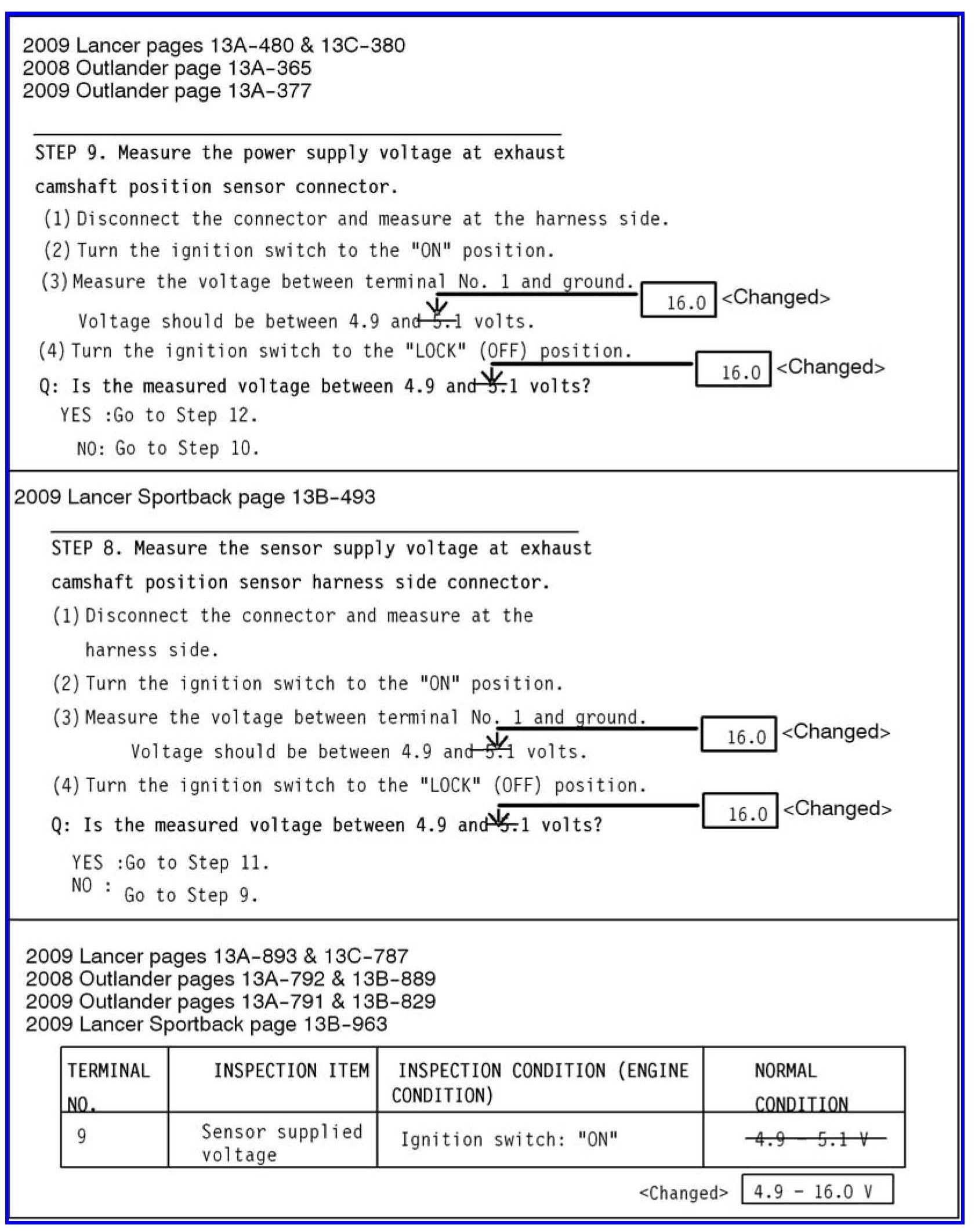

2009 Lancer pages 13A-480 & 13C-380
2008 Outlander page 13A-365
2009 Outlander page 13A-377

2009 Lancer Sportback page 13B-493

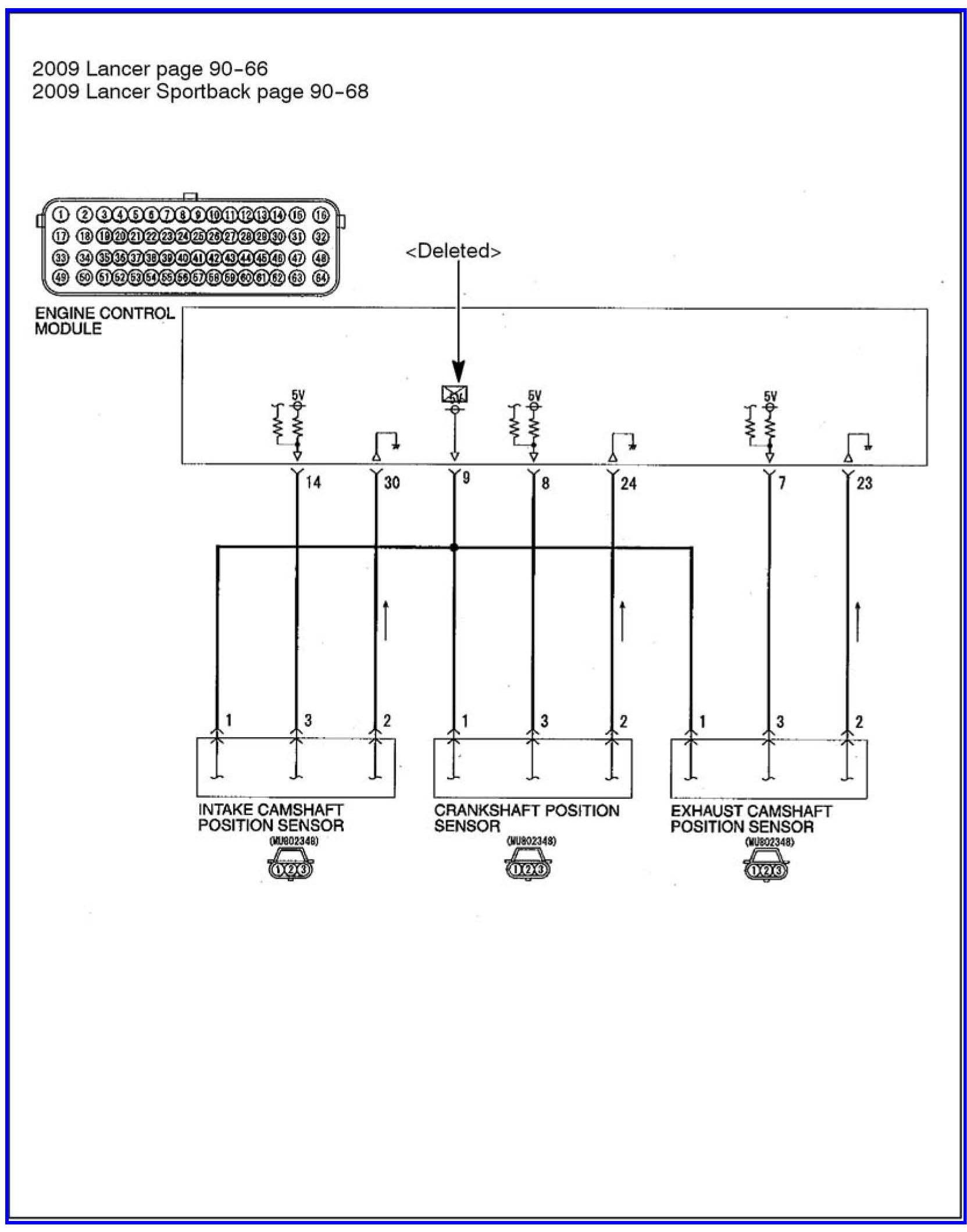

2009 Lancer page 90-66
2009 Lancer Sportback page 90-68

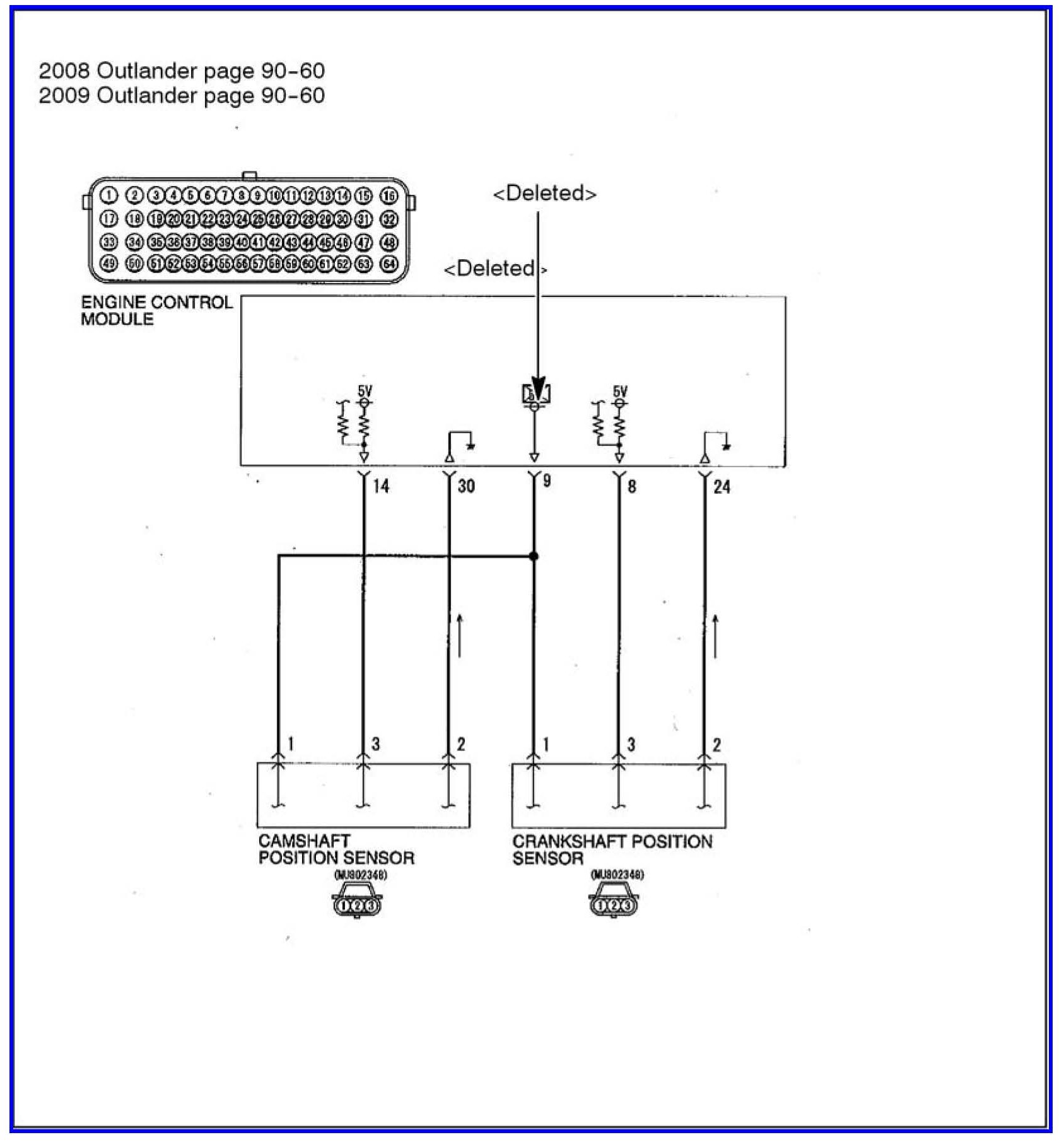

2008 Outlander page 90-60
2009 Outlander page 90-60
