Suspension - Rear Suspension Manual Revisions
No.: TSB-08-34-004DATE: August, 2008
MODEL:
2009 Lancer
SUBJECT:
CORRECTED INFORMATION FOR REAR SUSPENSION - SERVICE MANUAL REVISION
PURPOSE
Information relating to General Specifications and Removal & Installation procedures for some rear suspension components is incorrect in the applicable service manual. This Technical Service Bulletin provides the correct information.
AFFECTED VEHICLE(S)
2009 Lancer

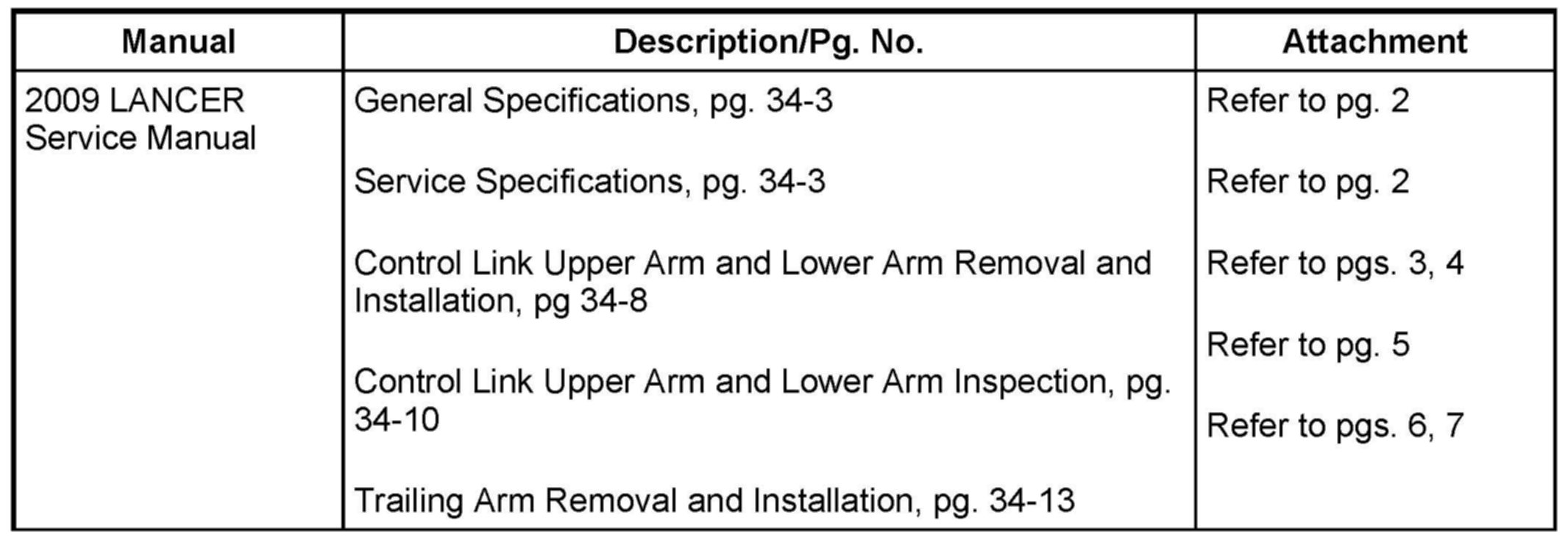

APPLICABLE MANUAL(S)

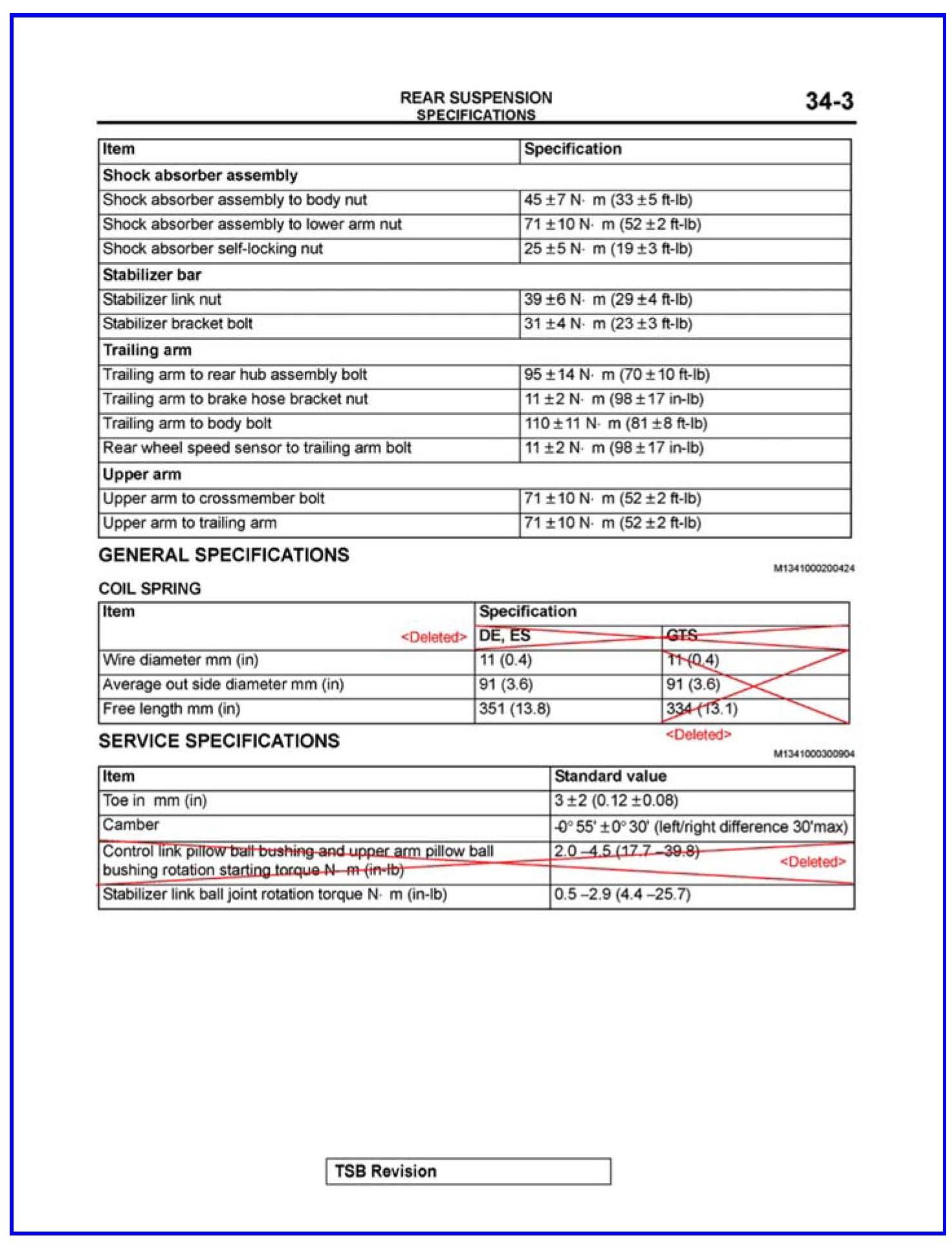

Service Manual Update For General/Service Specifications - Pages 34-3

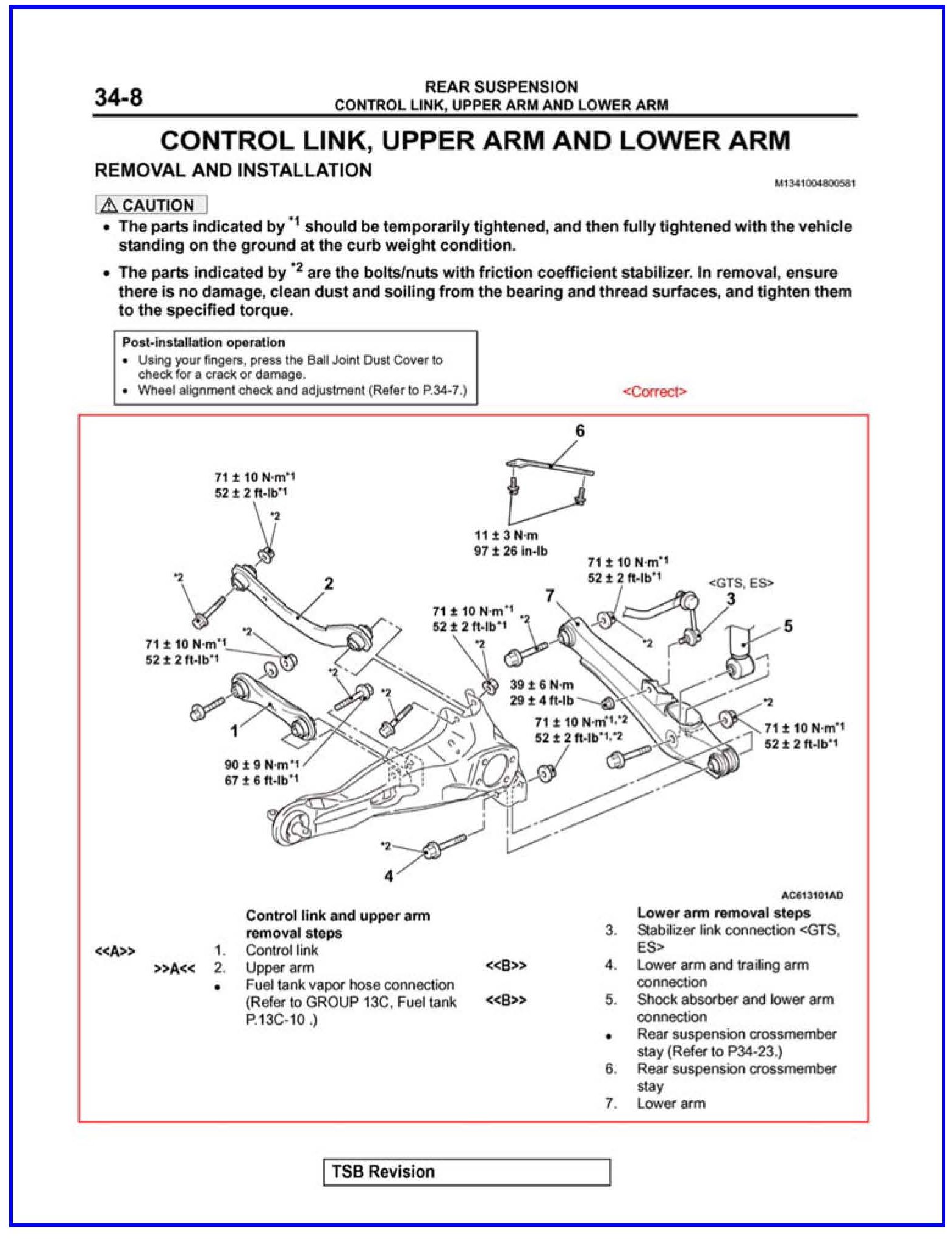

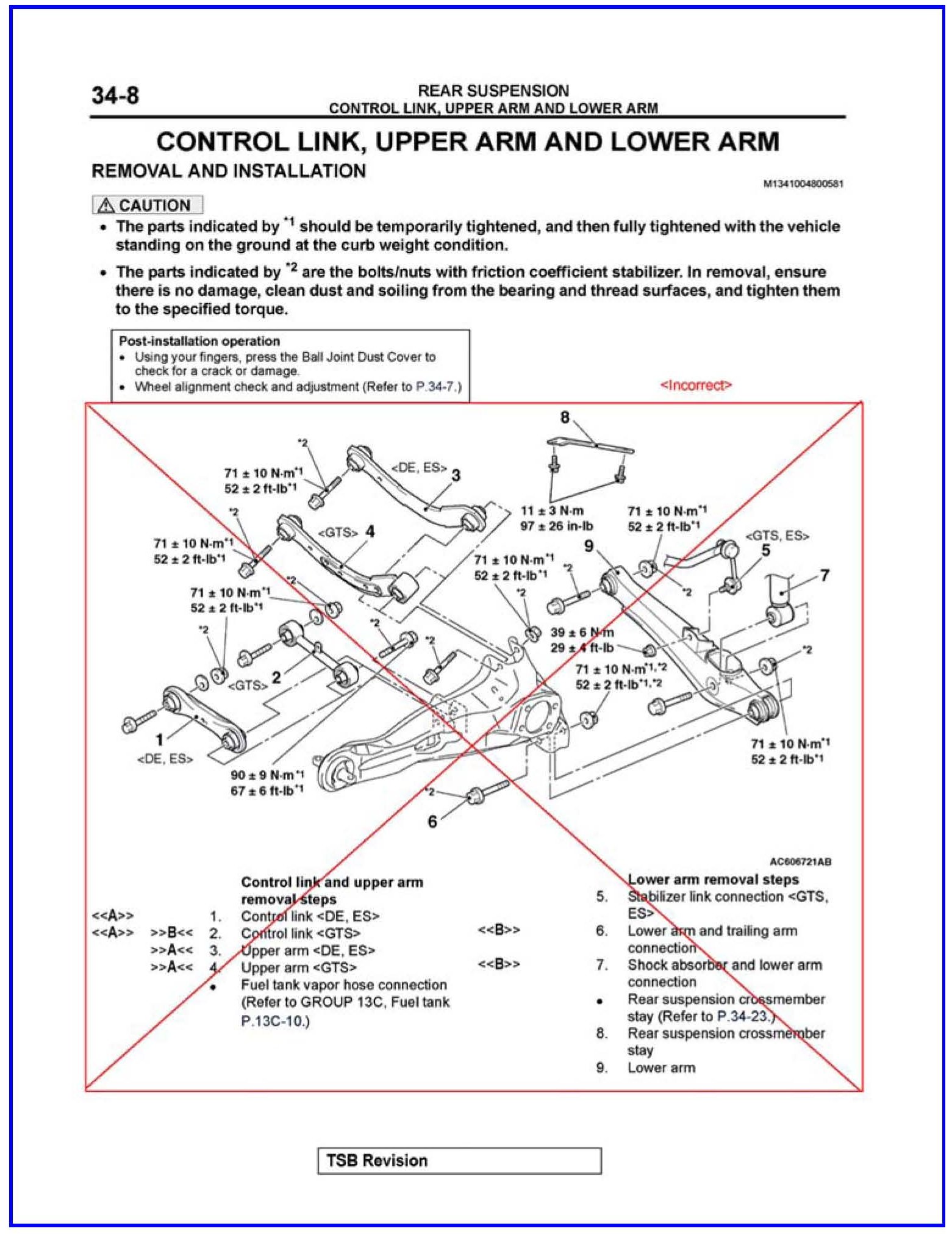

Service Manual Update For Page 34-8

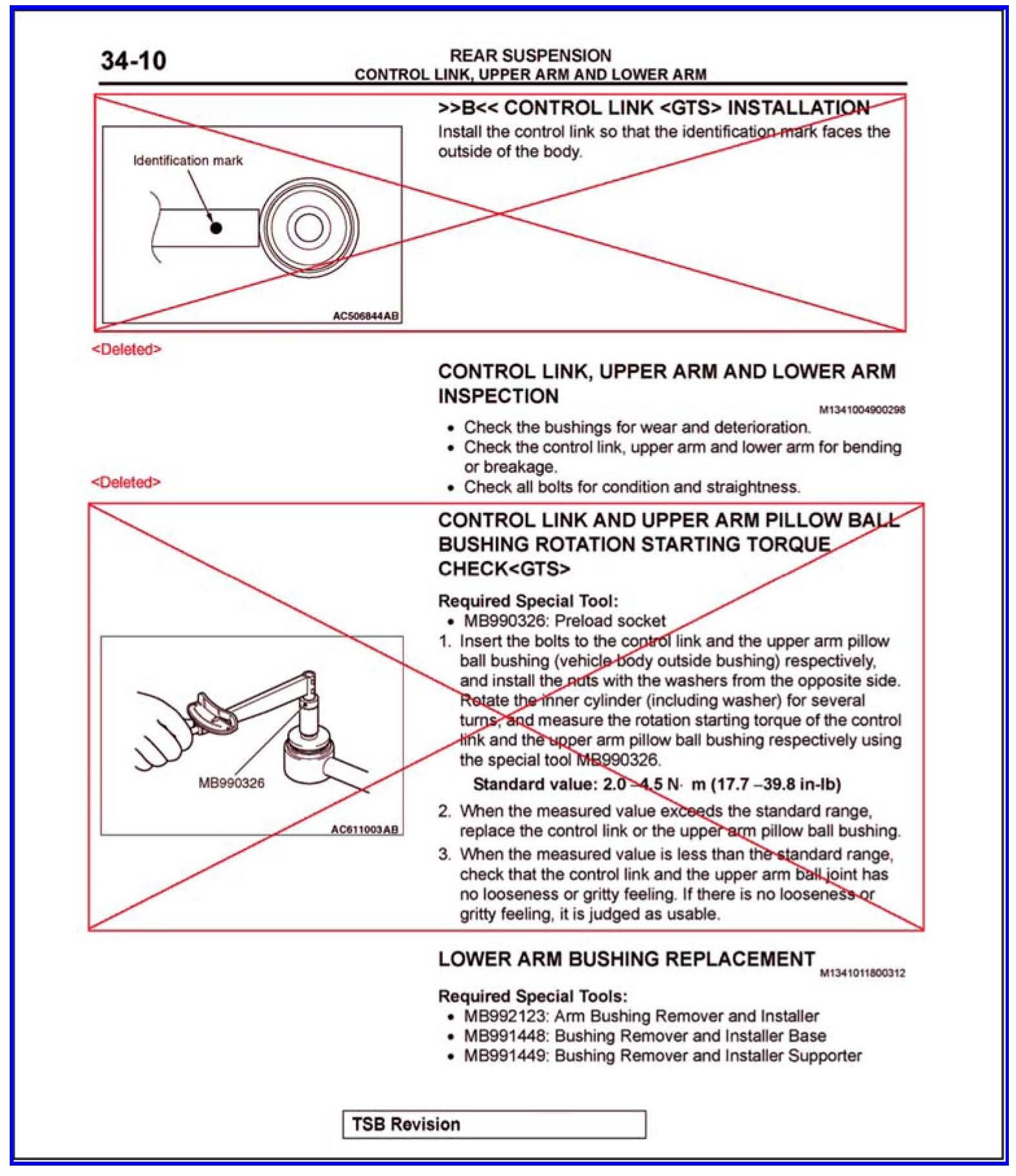

Service Manual Update For Page 34-10

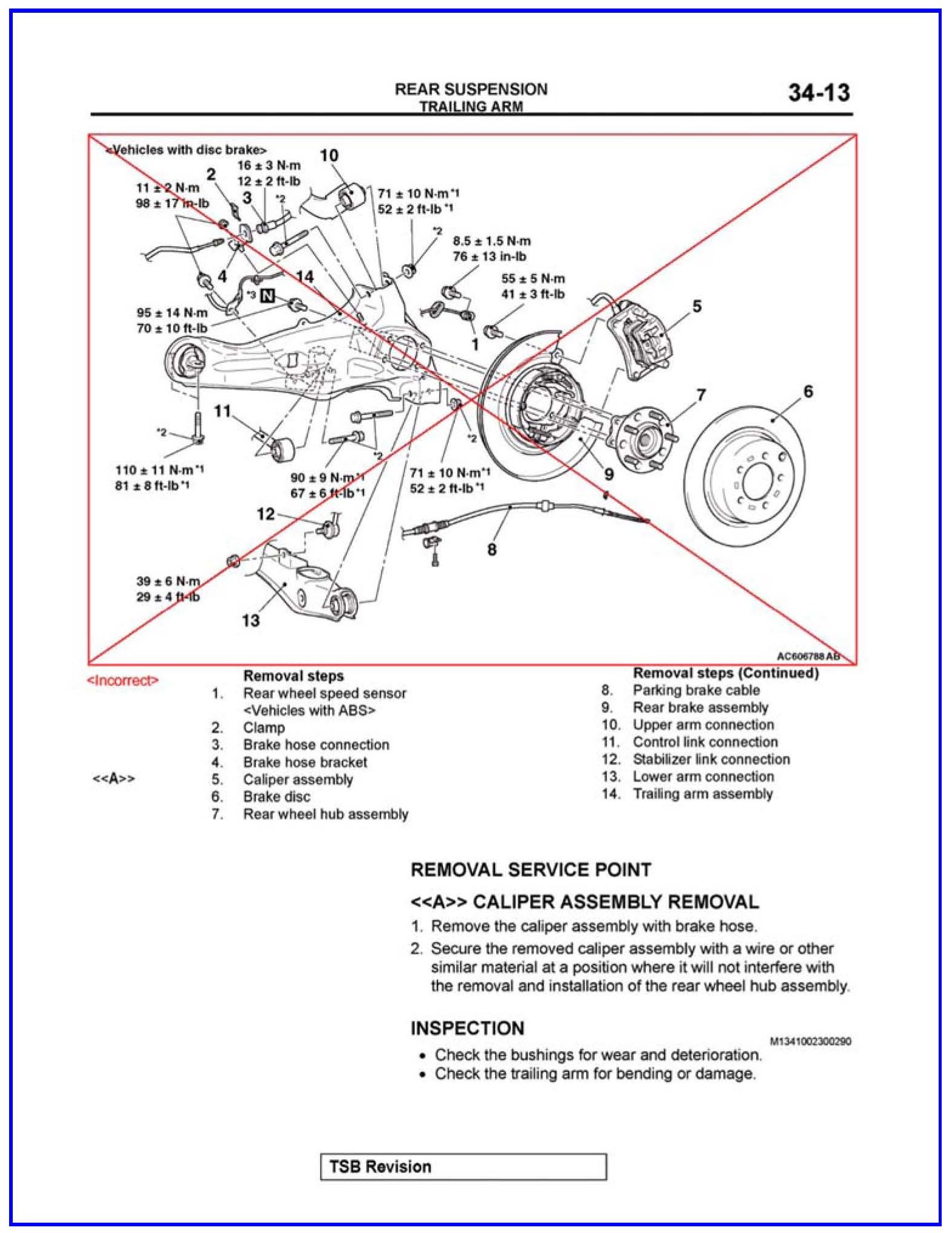

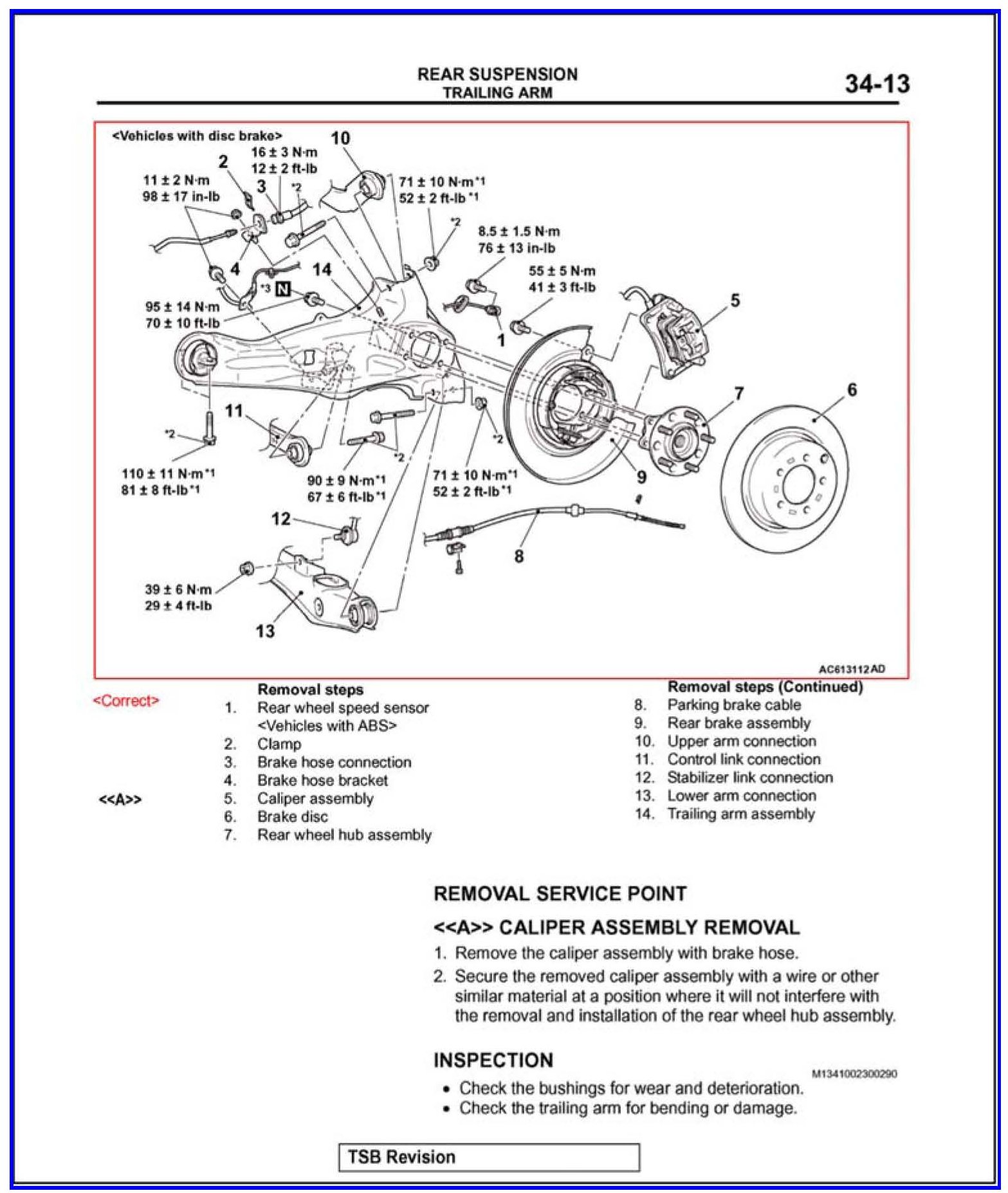

Service Manual Update For Page 34-13
