Front Suspension

STRUT ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
The part indicated by * is the nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

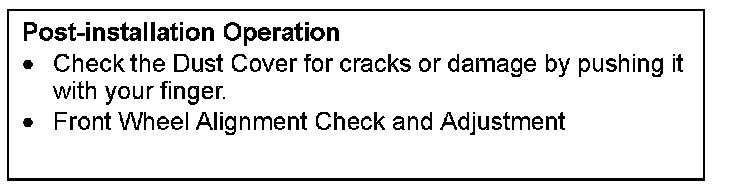

Post-installation Operation:

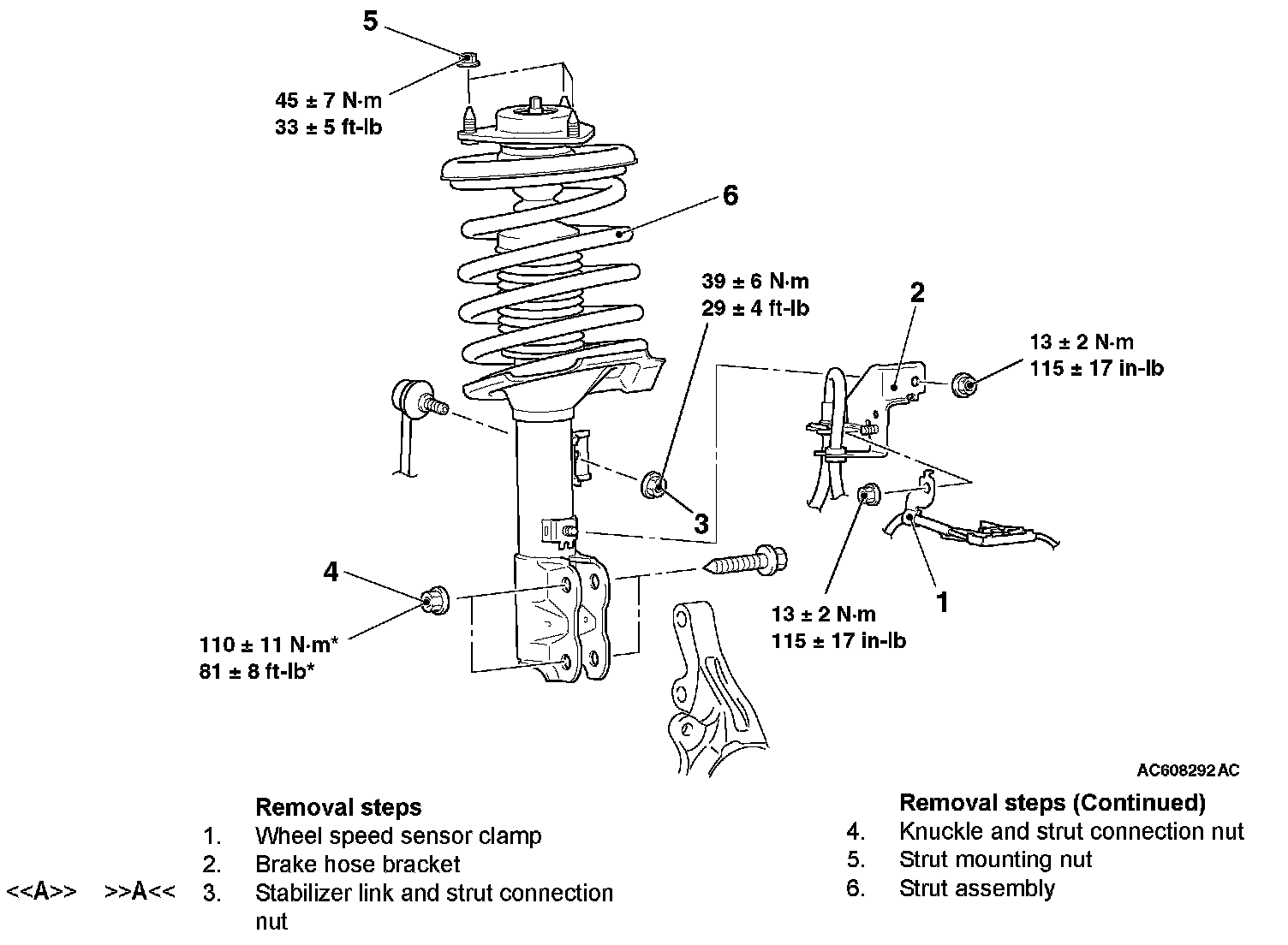

Removal Steps 1-6:

REMOVAL SERVICE POINT

[[A]] STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

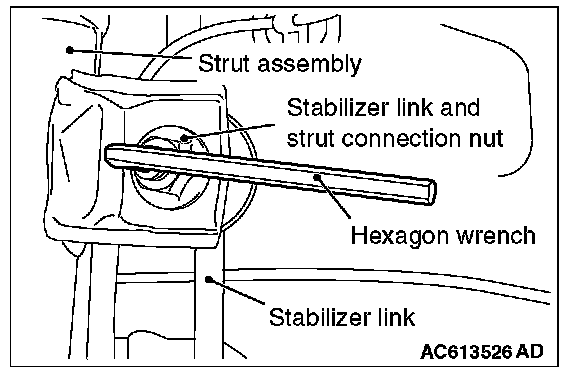

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION

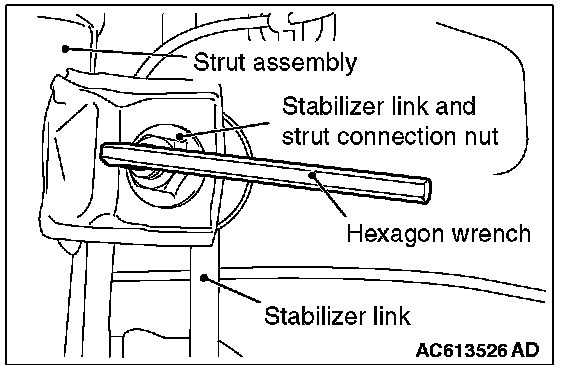

Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.

INSPECTION
^ Check for oil leaks from the strut assembly.
^ Check the strut assembly for damage or deformation.
