Rear Suspension

STABILIZER BAR

REMOVAL AND INSTALLATION

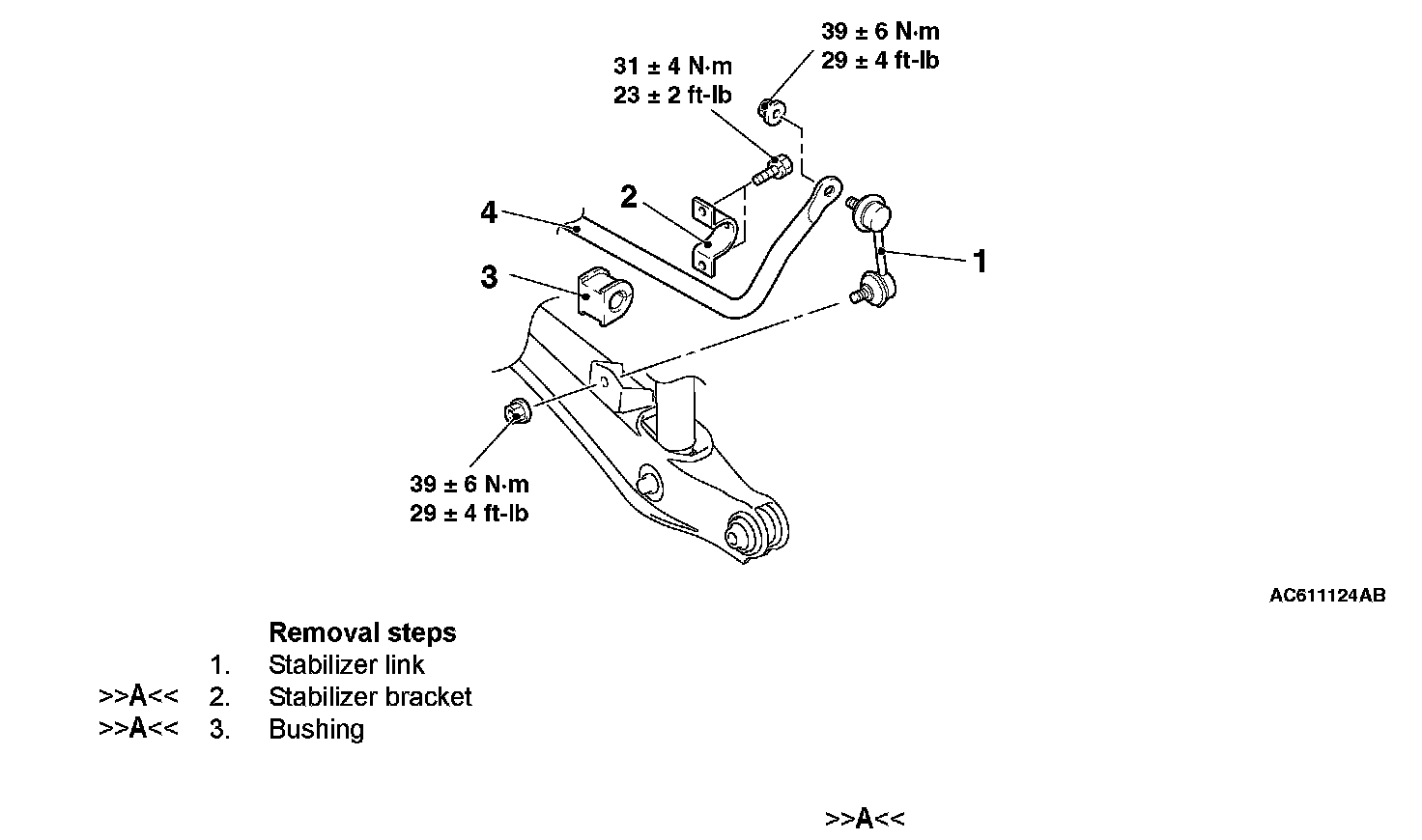

Removal Steps 1-3:





INSTALLATION SERVICE POINT

]]A[[ STABILIZER BAR/BUSHING/STABILIZER

BRACKET INSTALLATION

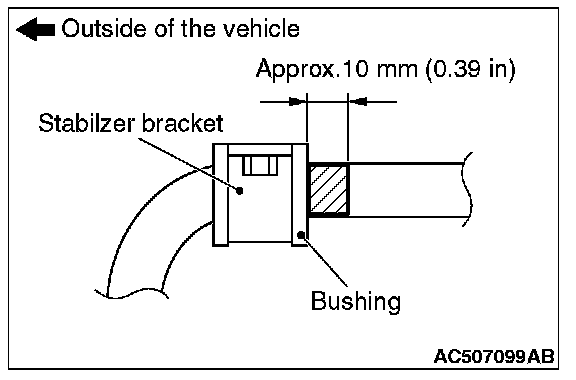

Position the identification mark of the stabilizer bar at the left side of the vehicle as shown in the figure, and tighten the stabilizer bracket mounting bolt.
