Front Suspension

STABILIZER BAR

REMOVAL AND INSTALLATION

Post-installation Operation:

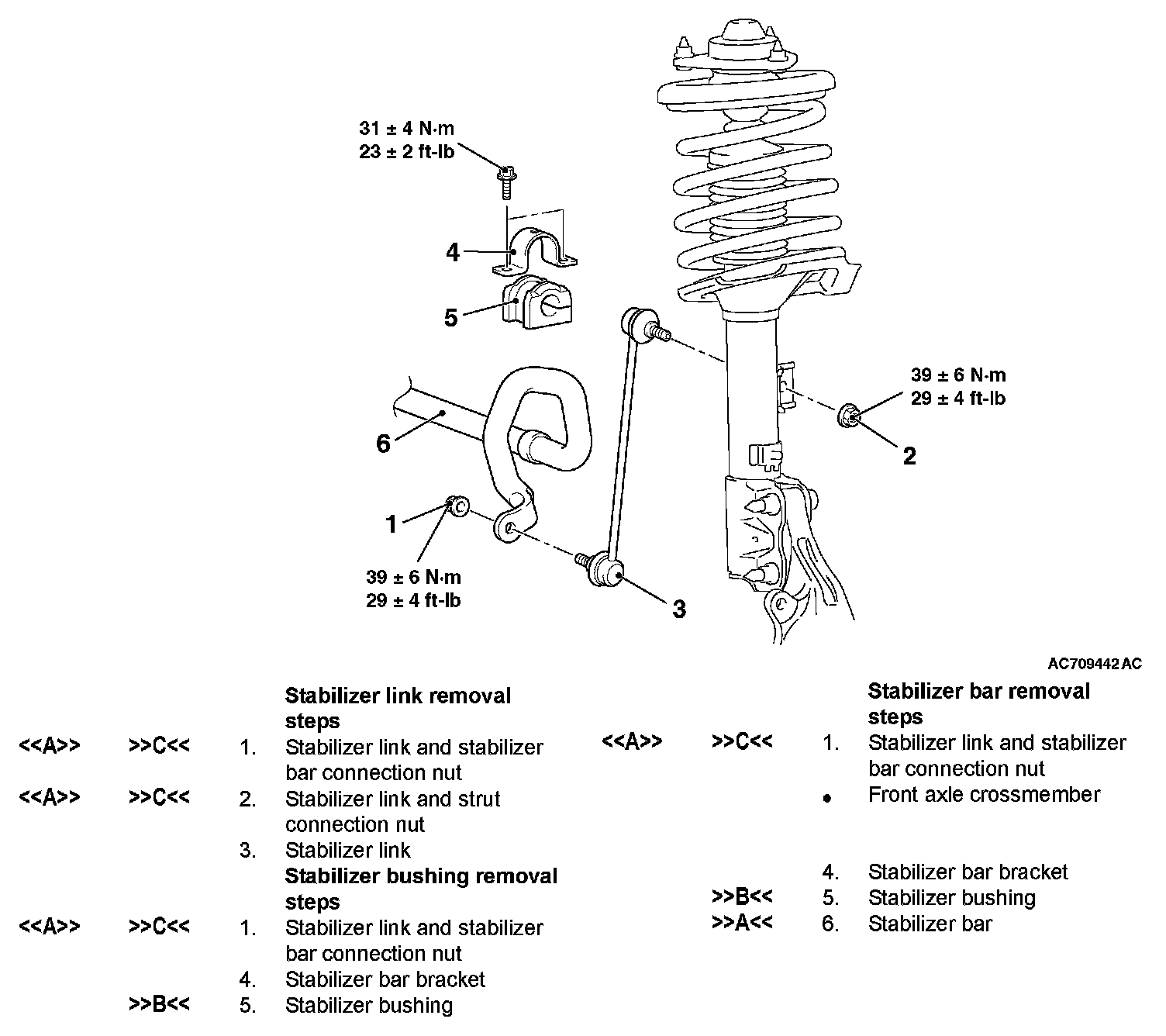

Stabilizer Link Removal Steps 1-5, Stabilizer Bar Removal Steps 1-6:

REMOVAL SERVICE POINT

[[A]] STABILIZER LINK AND STABILIZER BAR CONNECTION NUT/STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

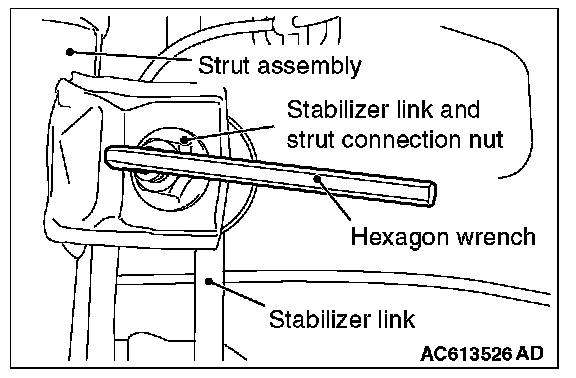

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINTS

]]A[[ STABILIZER BAR INSTALLATION

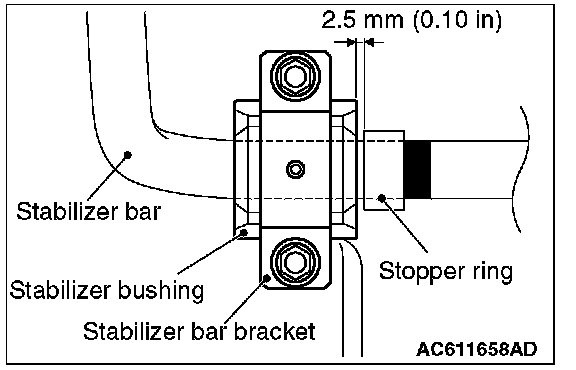

Install the stabilizer bar as shown in the figure.

]]B[[ STABILIZER BUSHING INSTALLATION

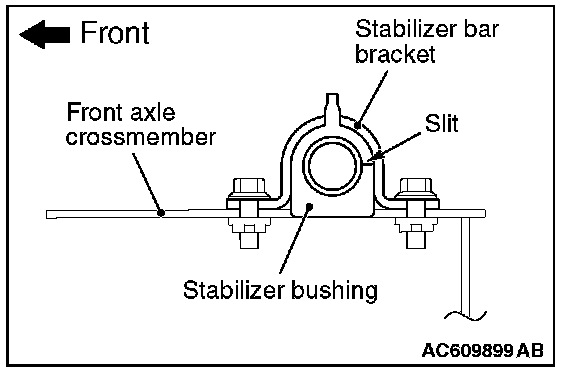

Install the stabilizer bushing as shown in the figure.

]]C[[ STABILIZER LINK AND STRUT CONNECTION NUT/STABILIZER LINK AND STABILIZER BAR CONNECTION NUT INSTALLATION

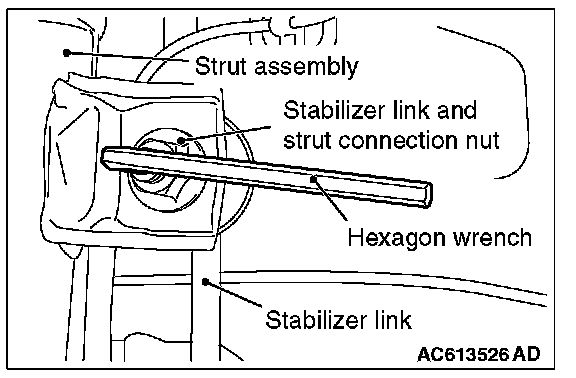

Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
