Rear Suspension

Updated by TSB-08-34-004

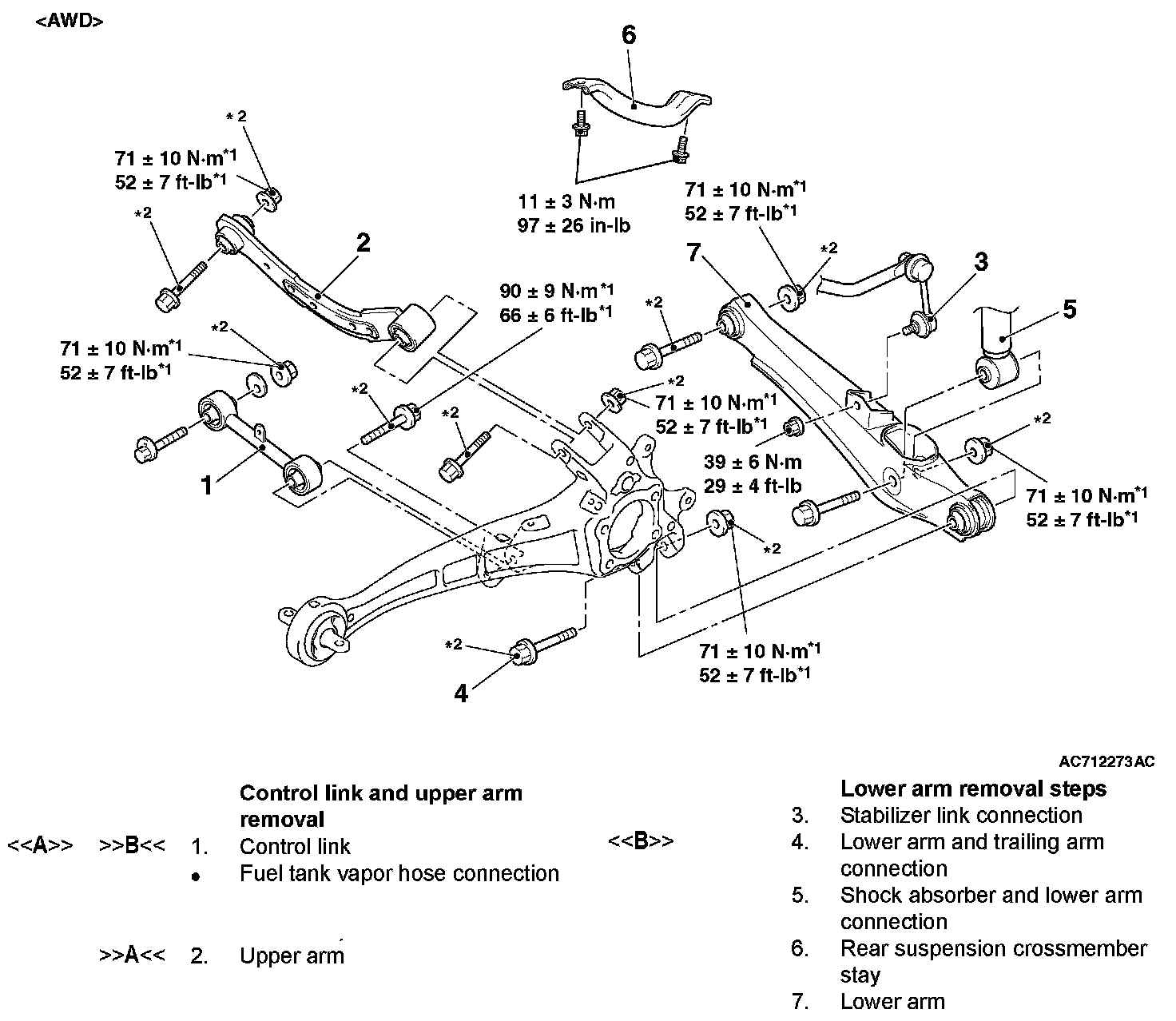

CONTROL LINK, UPPER ARM AND LOWER ARM

REMOVAL AND INSTALLATION

CAUTION:
^ The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
^ The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

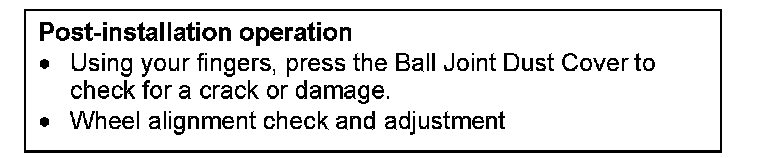

Post Installation Operation:

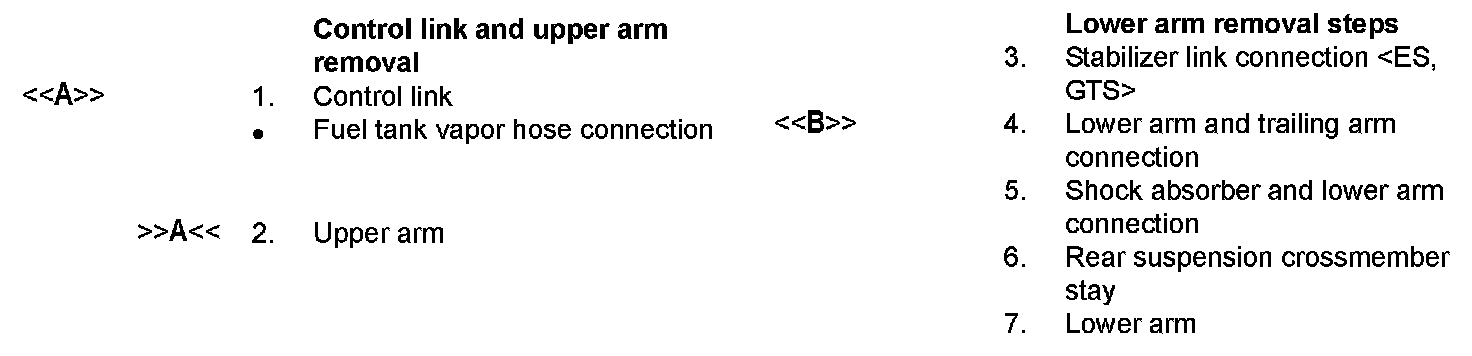

Removal Steps 1-7:

Removal Steps 1-7:

REMOVAL SERVICE POINTS

[[A]] CONTROL LINK REMOVAL

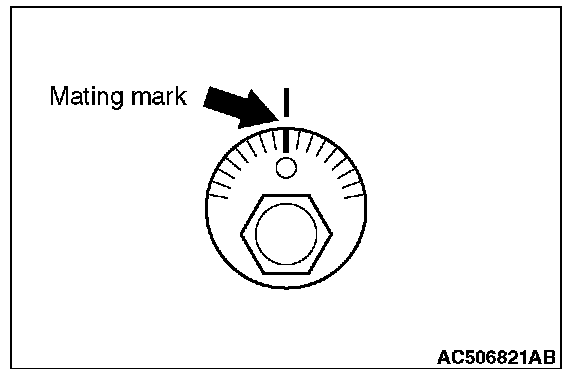

Make a mating mark on the toe adjusting bolt, and remove the control link.

[[B]] LOWER ARM AND TRAILING ARM DISCONNECTION





While jacking-up the lower arm with garage jack, remove the mounting bolts.

INSTALLATION SERVICE POINTS

]]A[[ UPPER ARM INSTALLATION

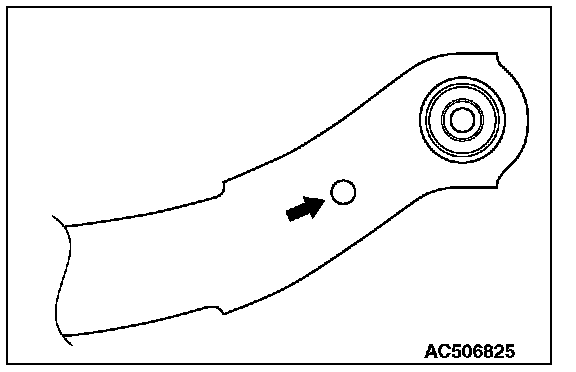

Install the upper arm so that the hole faces the body side.
