Rear Suspension

LOWER ARM BUSHING REPLACEMENT

Required Special Tools:
^ MB992123: Arm Bushing Remover and Installer
^ MB991448: Bushing Remover and Installer Base
^ MB991449: Bushing Remover and Installer Supporter

CAUTION:
As the bushing has different outer diameters at both ends, be careful not to confuse the removal direction with the press-fit direction.

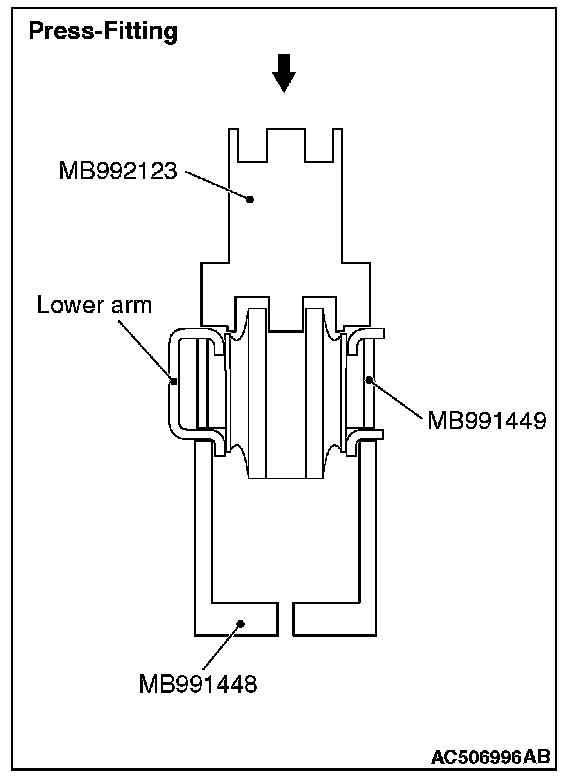

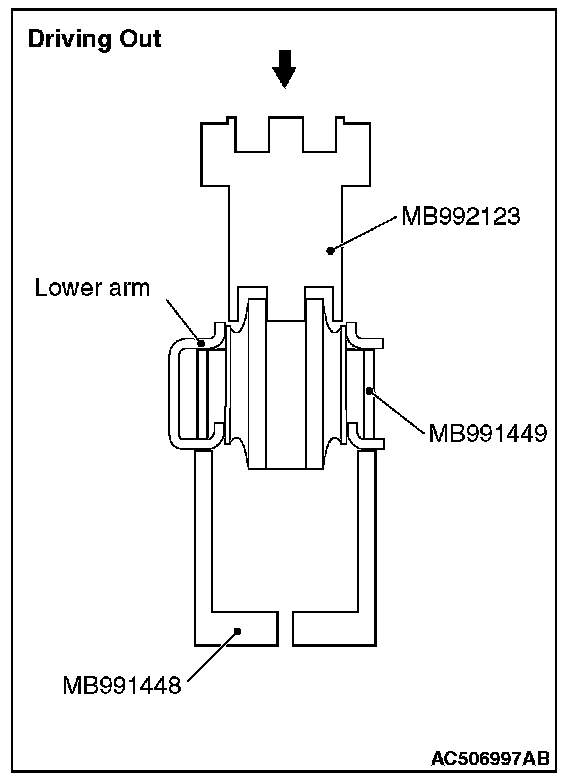

Use the special tools MB992123, MB991448 and MB991449 to remove and press-fit the lower arm bushing.
