Removal and Replacement

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

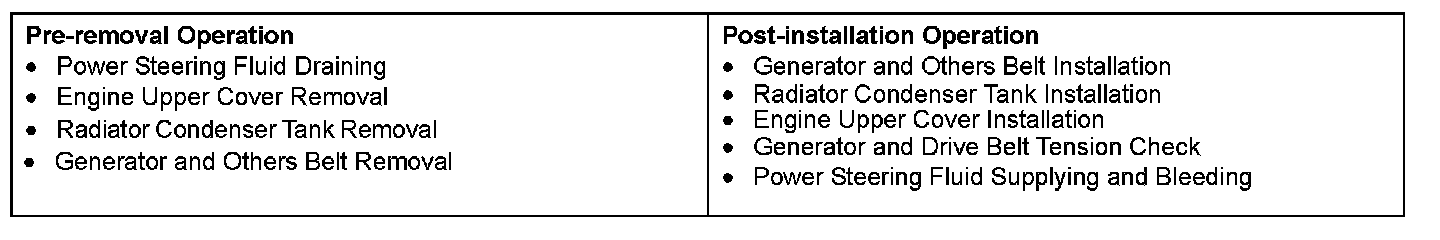

Pre-removal & Post-installation Operation:

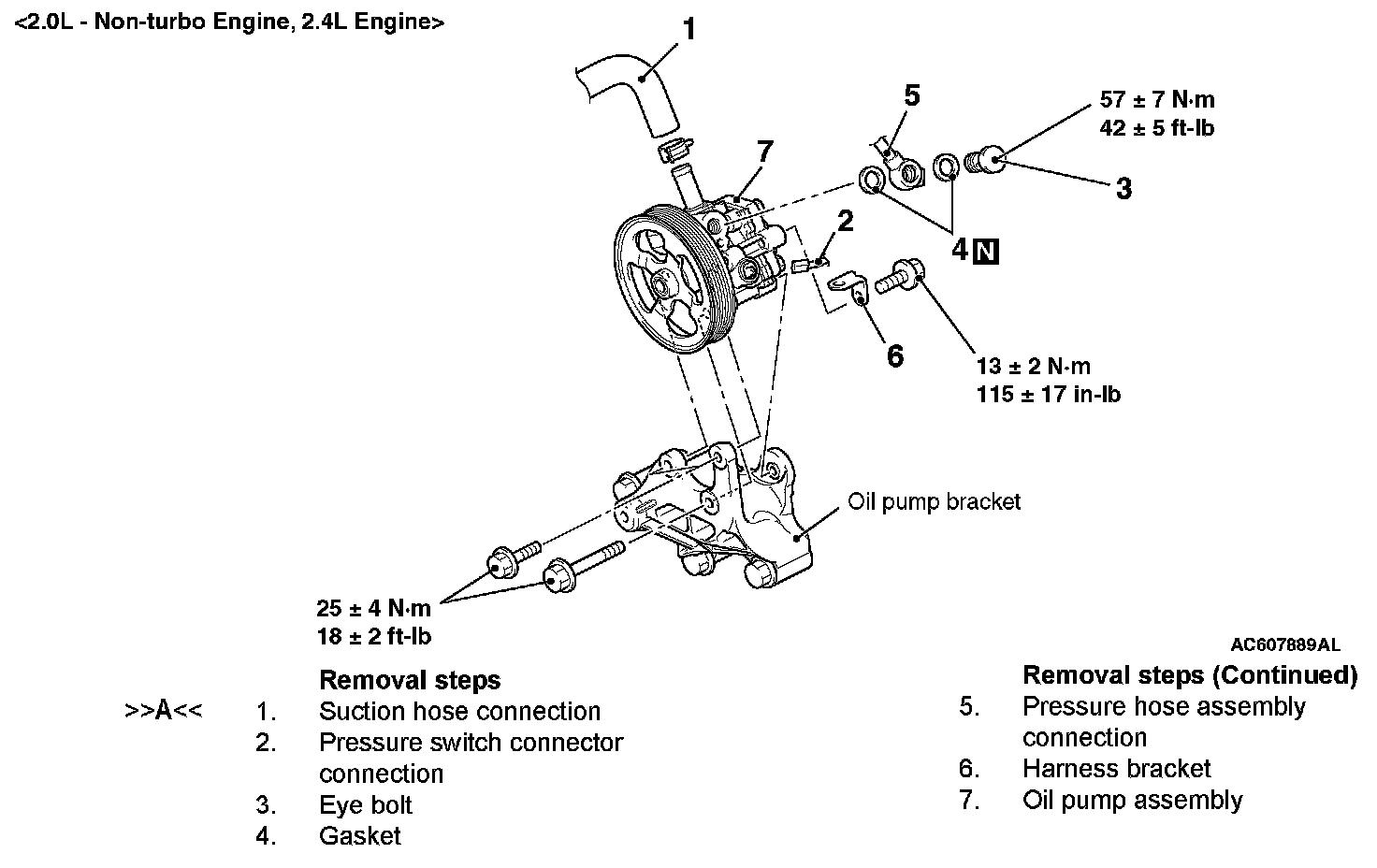

Removal Steps 1-7:

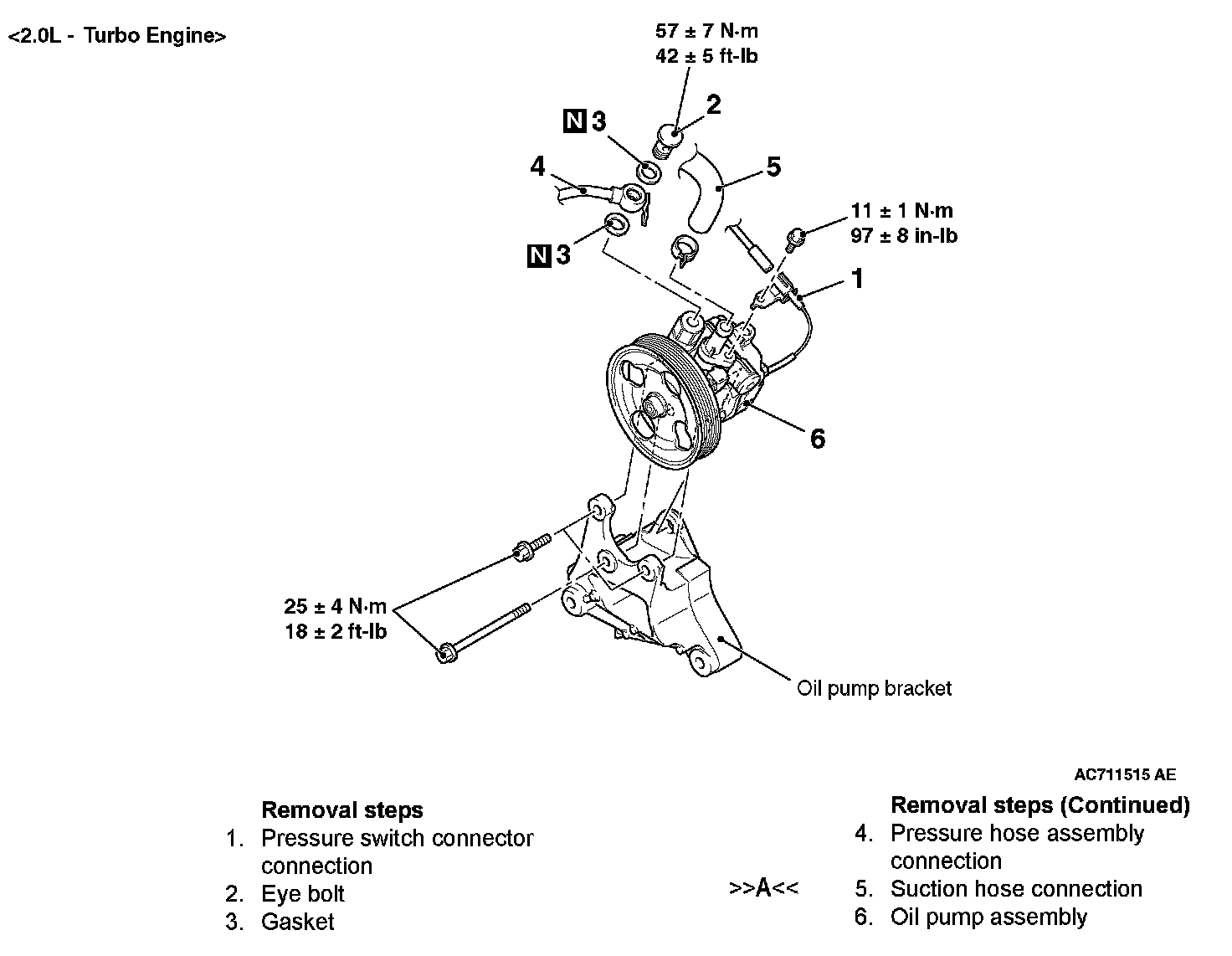

Removal Steps 1-6:

INSTALLATION SERVICE POINT

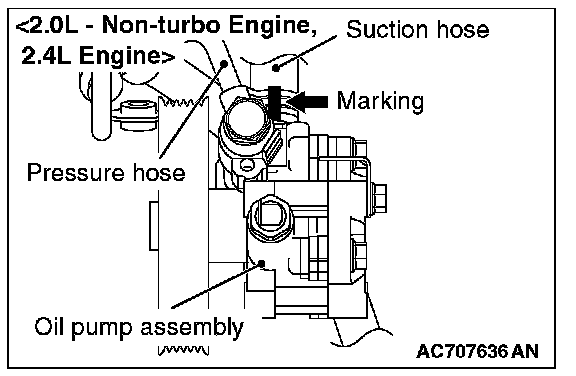

]]A[[ SUCTION HOSE CONNECTION

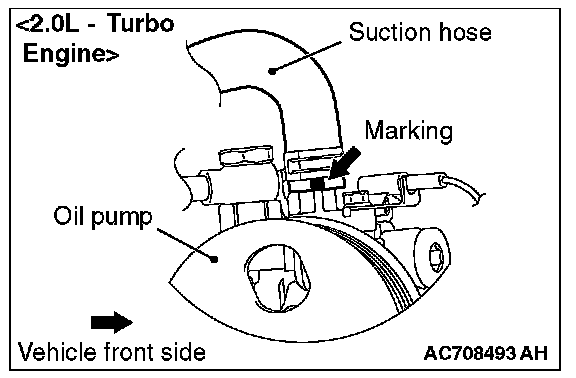

Align the suction hose marking within the area shown in the figure and connect the suction hose.
