Removal and Replacement

GENERATOR ASSEMBLY

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

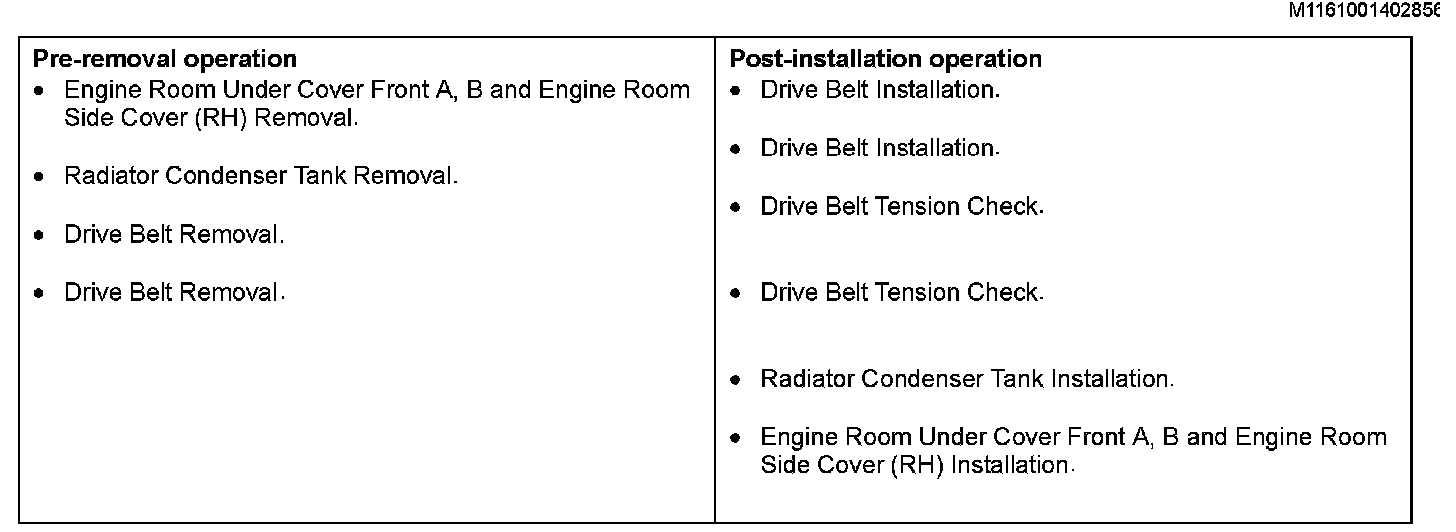

Pre-removal & Post-installation Operation:

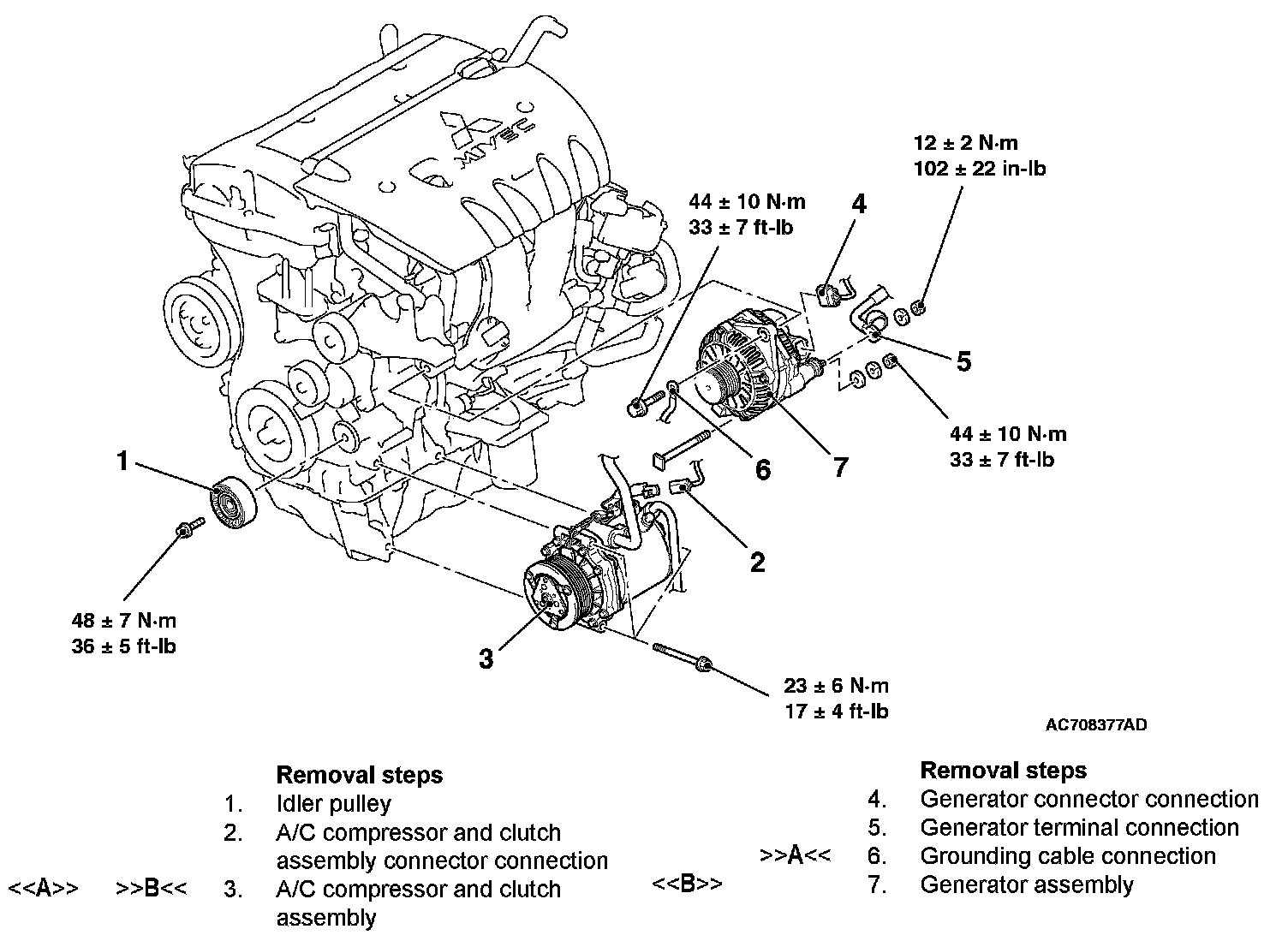

Removal Steps 1-7:

REMOVAL SERVICE POINTS

[A] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.
2. Tie the removed A/C compressor and clutch assembly with a string at a position where it will not interfere with the removal and installation of the generator assembly.

[B] GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly to the downside.

INSTALLATION SERVICE POINTS

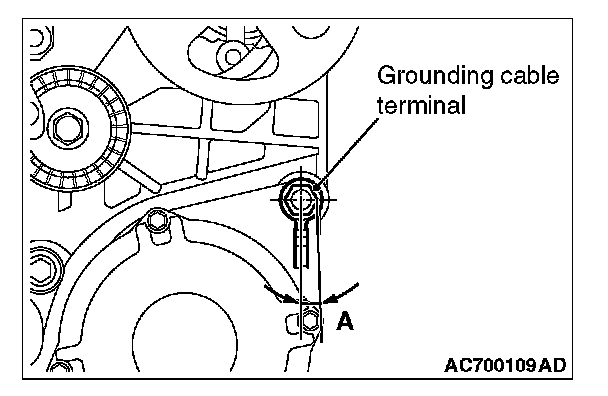

[A] GROUNDING CABLE INSTALLATION







1. Install the grounding cable within the area marked with the illustration.
2. Tighten the generator assembly mounting bolt to the specified torque.

Tightening torque: 44 ± 10 N.m (33 ± 7 ft-lb)

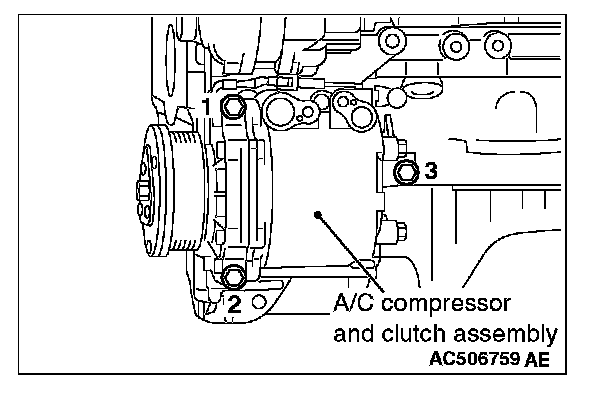

[B] A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION







Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.

Tightening torque: 23 ± 6 N.m (17 ± 4 ft-lb)
