Torque Specifications

Intake manifold stay bolt 20 ± 2 Nm 15 ± 1 ft-lb





Intake manifold bolt and nut 3.5 ± 1.5 Nm 15 ± 13 in-lb - 20 ± 2 Nm 15 ± 1 ft-lb

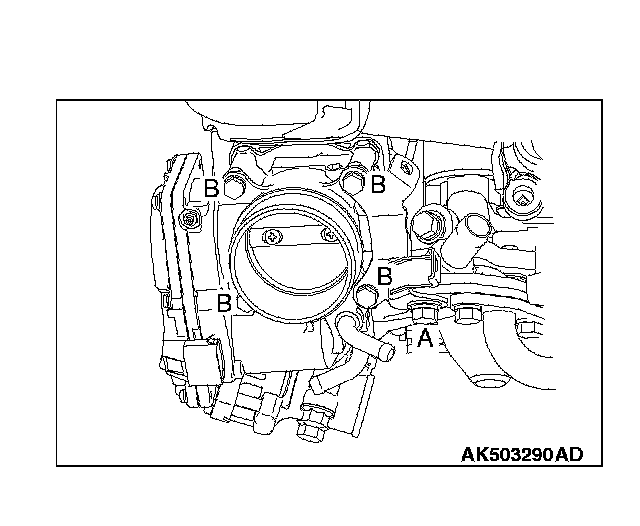

Throttle body mounting bolt at illustrated position A 20 ± 2 Nm 15 ± 1 ft-lb
Throttle body mounting bolts at illustrated position B 9.5 ± 2.5 Nm 84 ± 22 in-lb
