Seat Belt Systems: Testing and Inspection

INSPECTION

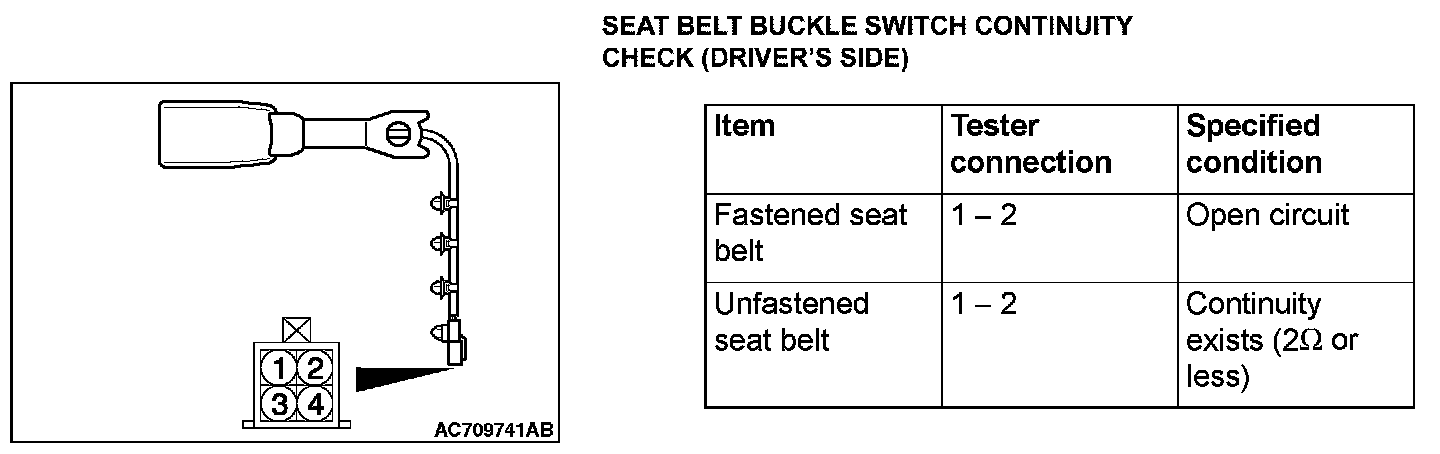

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK (DRIVER'S SIDE)

Seat Belt Buckle Switch Continuity Check (Driver's Side):

SEAT BELT BUCKLE SWITCH CHECK (PASSENGER'S SIDE)

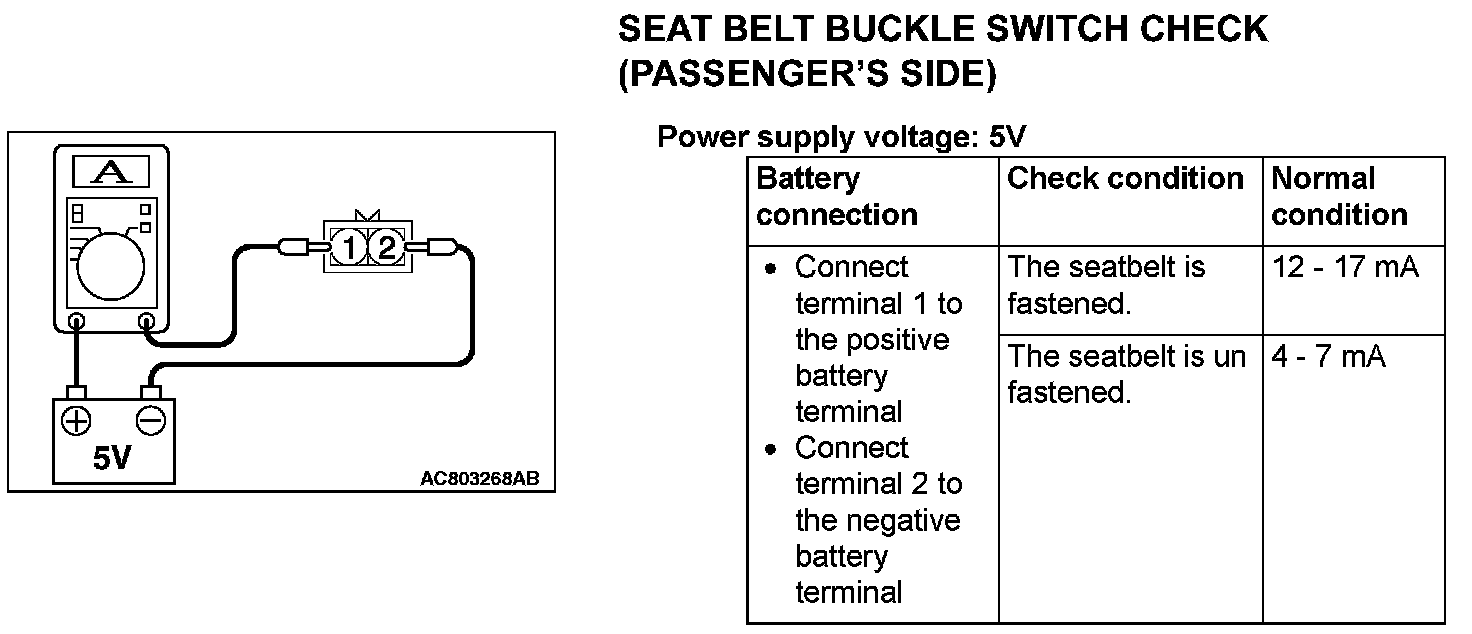

Apply the voltage (5V) to the seat belt switch connector terminals and measure the current at that time.

Seat Belt Buckle Switch Check (Passenger'S Side):
