Connector Locations

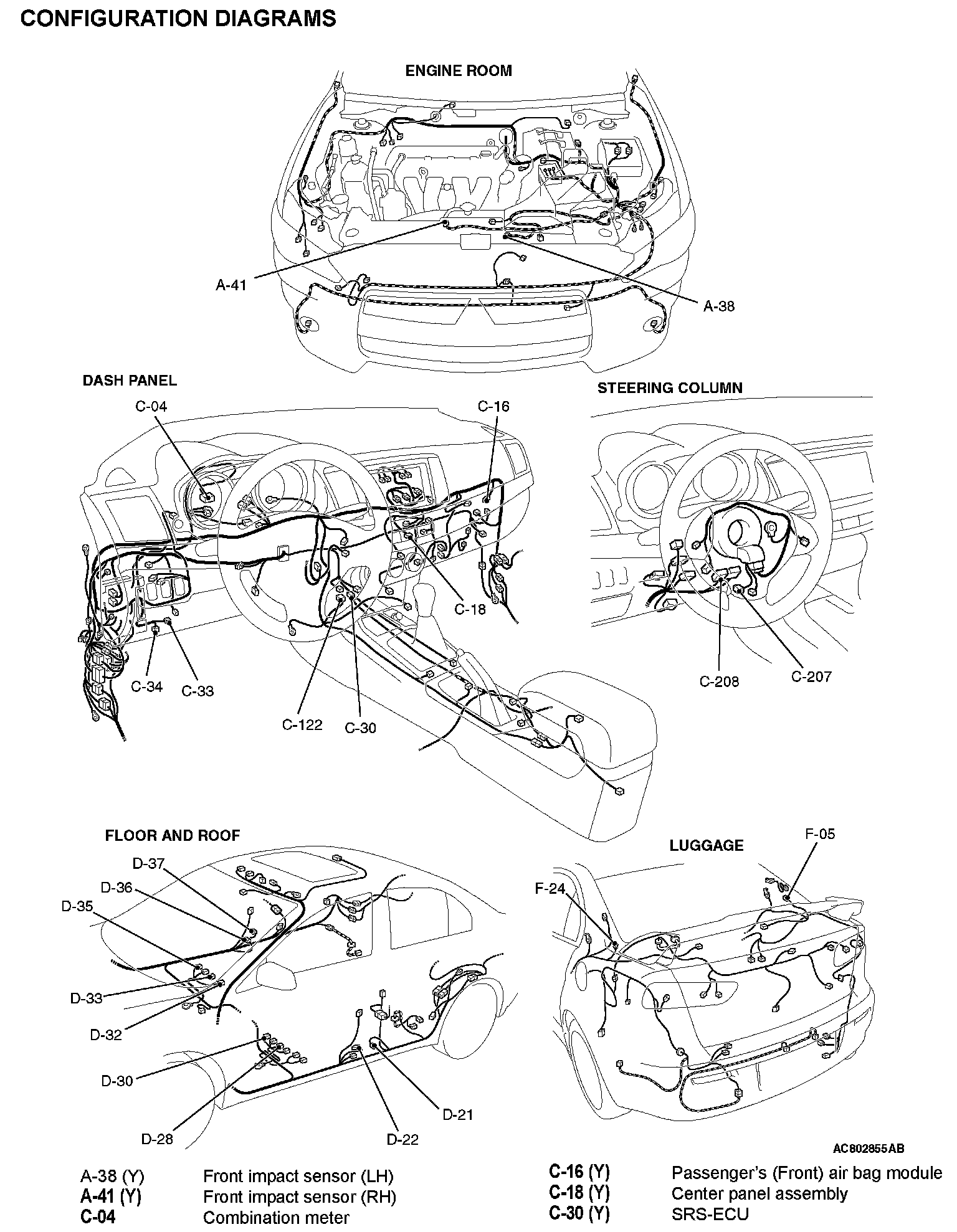

A-38 To A-41 / C-04 To C-208 / D-21 To D-37 / F-05 To F-24 (Part 1):

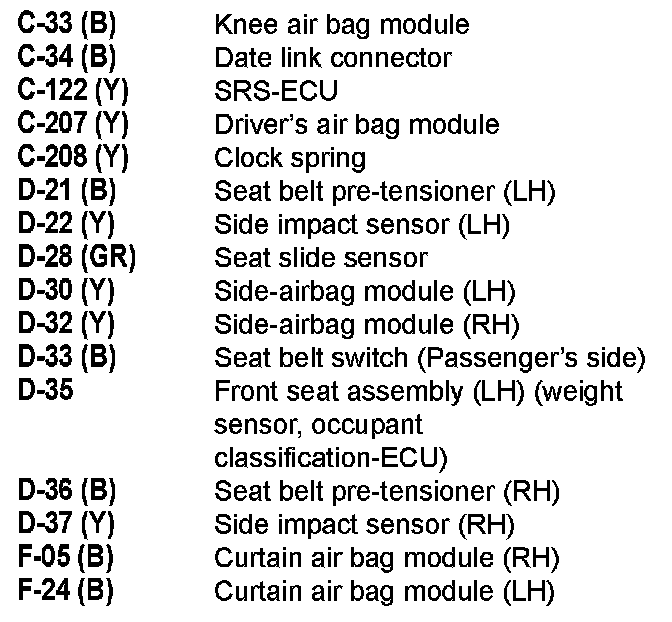

A-38 To A-41 / C-04 To C-208 / D-21 To D-37 / F-05 To F-24 (Part 2):
