Radiator Cooling Fan Motor Relay: Testing and Inspection

COOLING FAN RELAY CONTINUITY CHECK [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

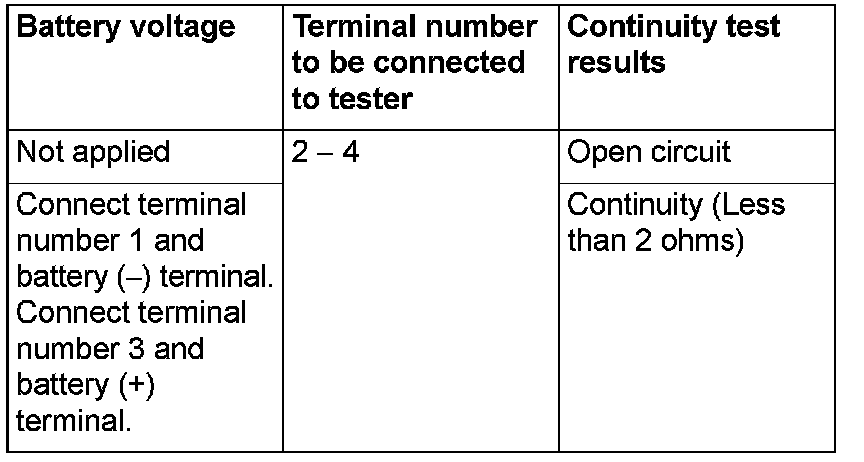

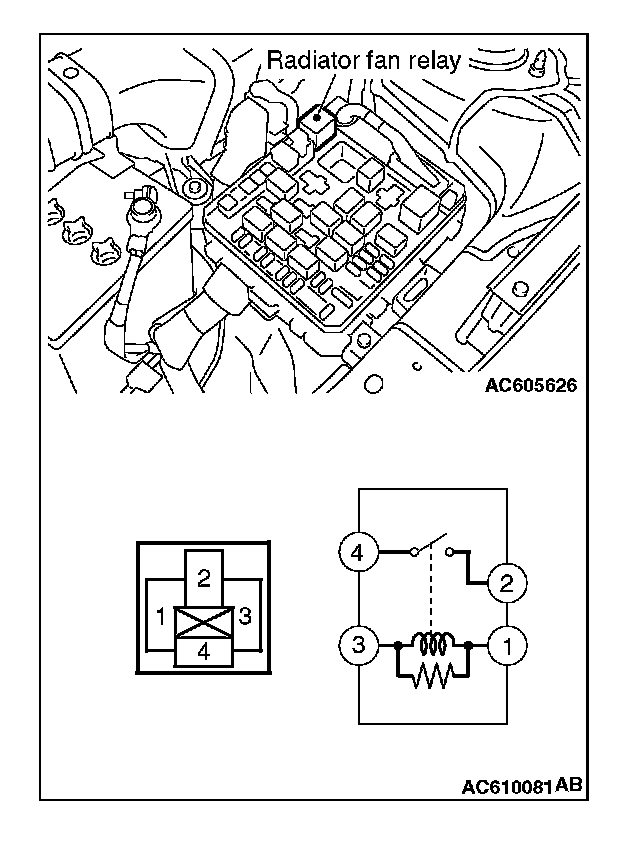

RADIATOR FAN RELAY CHECK

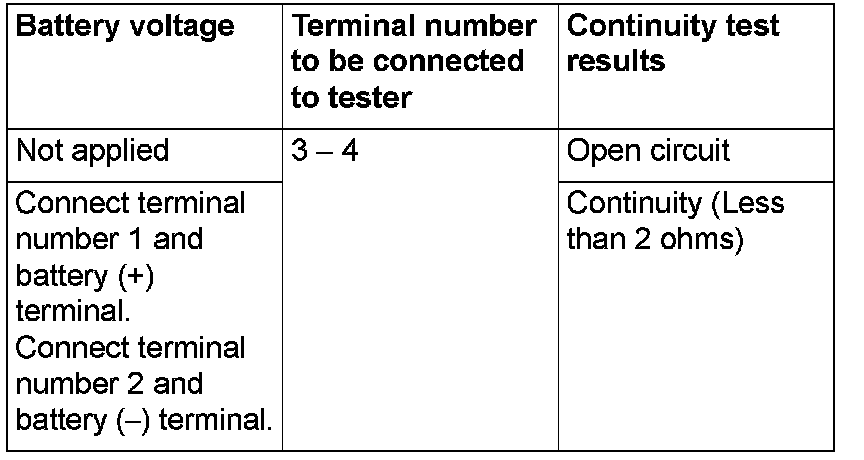

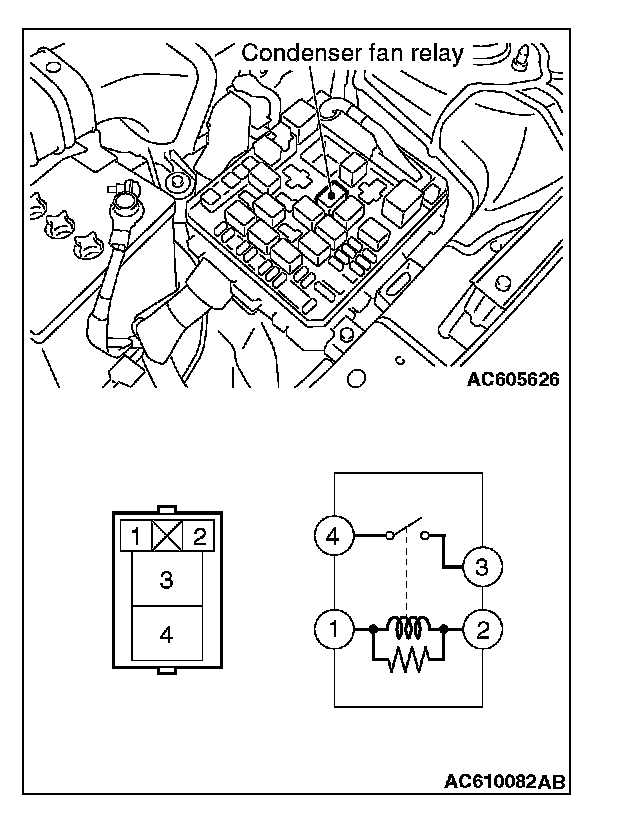

CONDENSER FAN RELAY CHECK

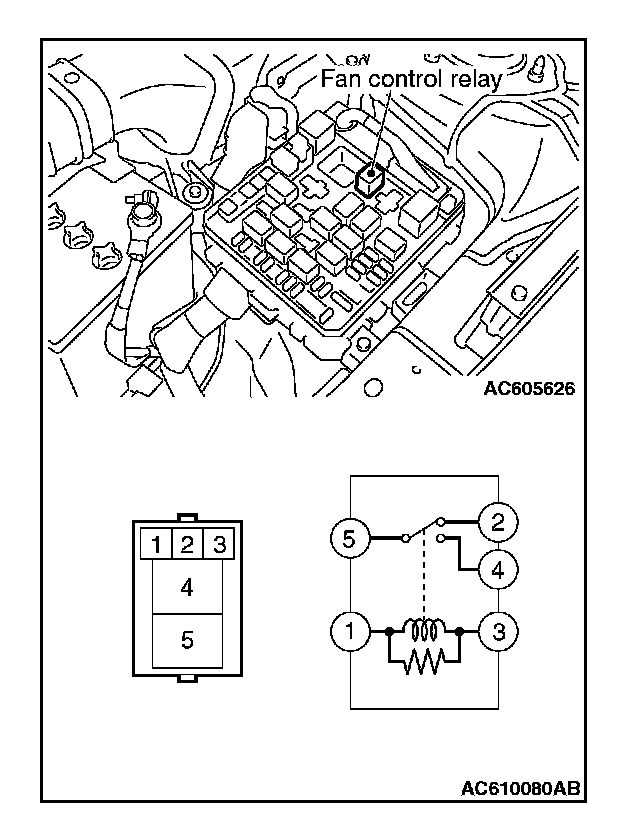

FAN CONTROL RELAY CHECK
