Four Wheel Drive Selector Switch: Testing and Inspection

AWC SWITCH CHECK

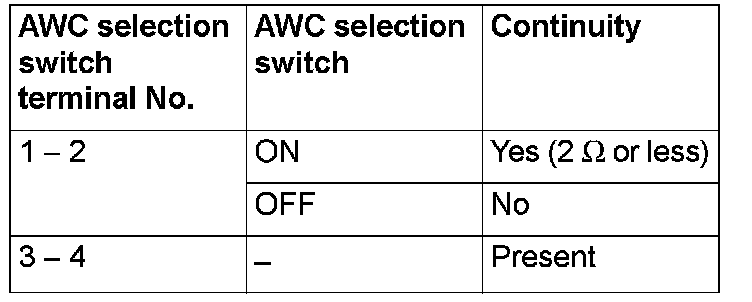

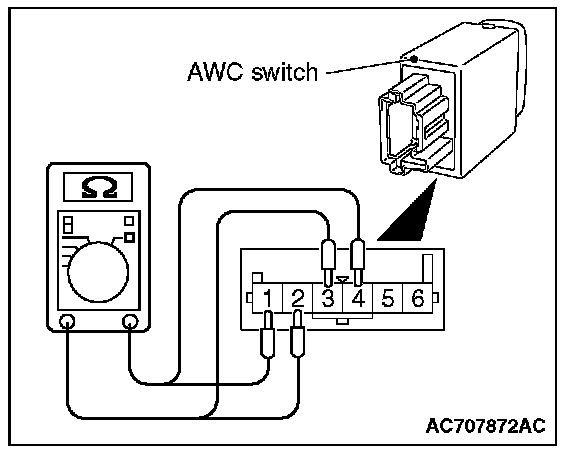

Check the continuity between the AWC switch connector terminals.

1. When other than above, replace the AWC switch.
