Powertrain Management: Tools and Equipment

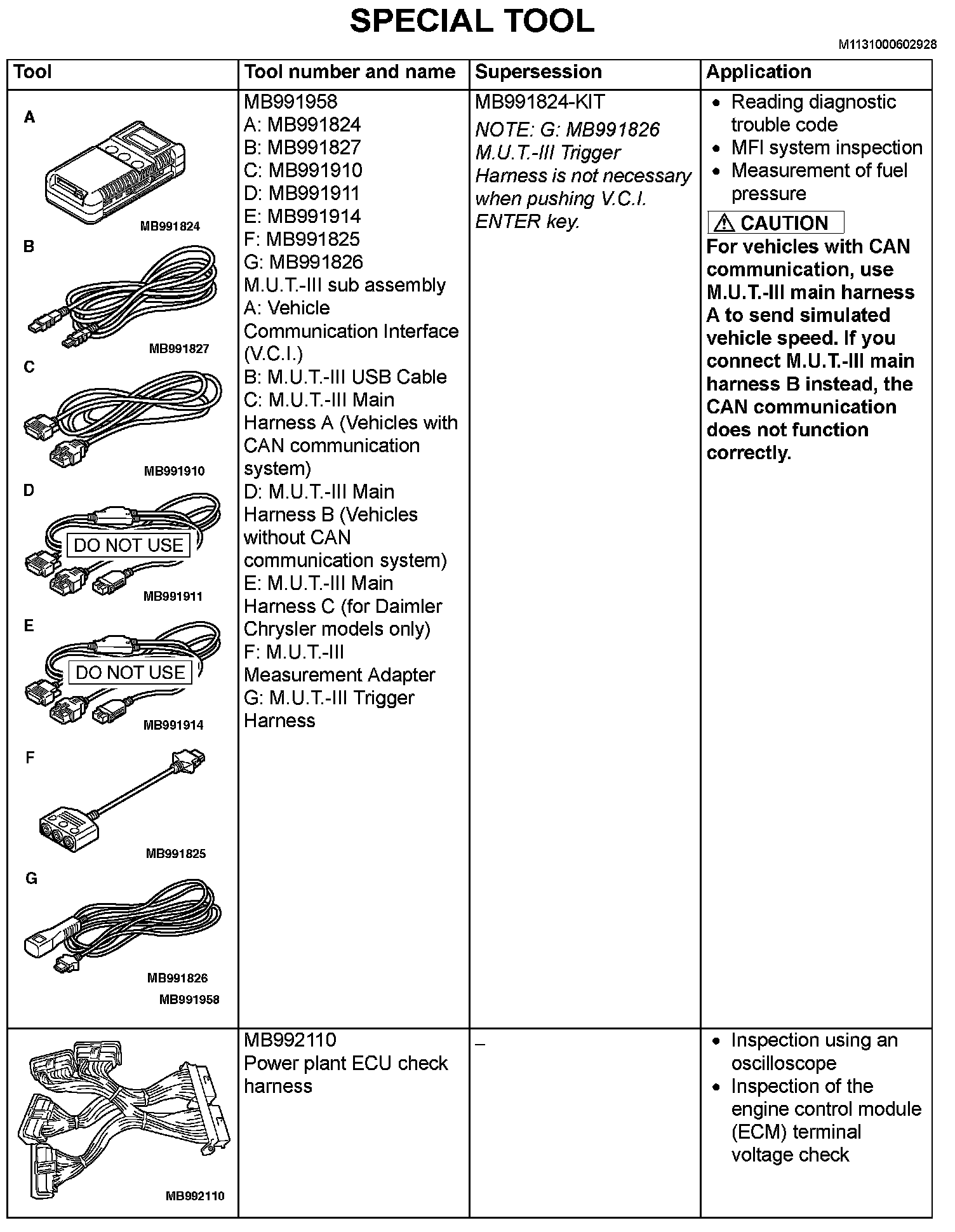

Special Tool (Part 1):

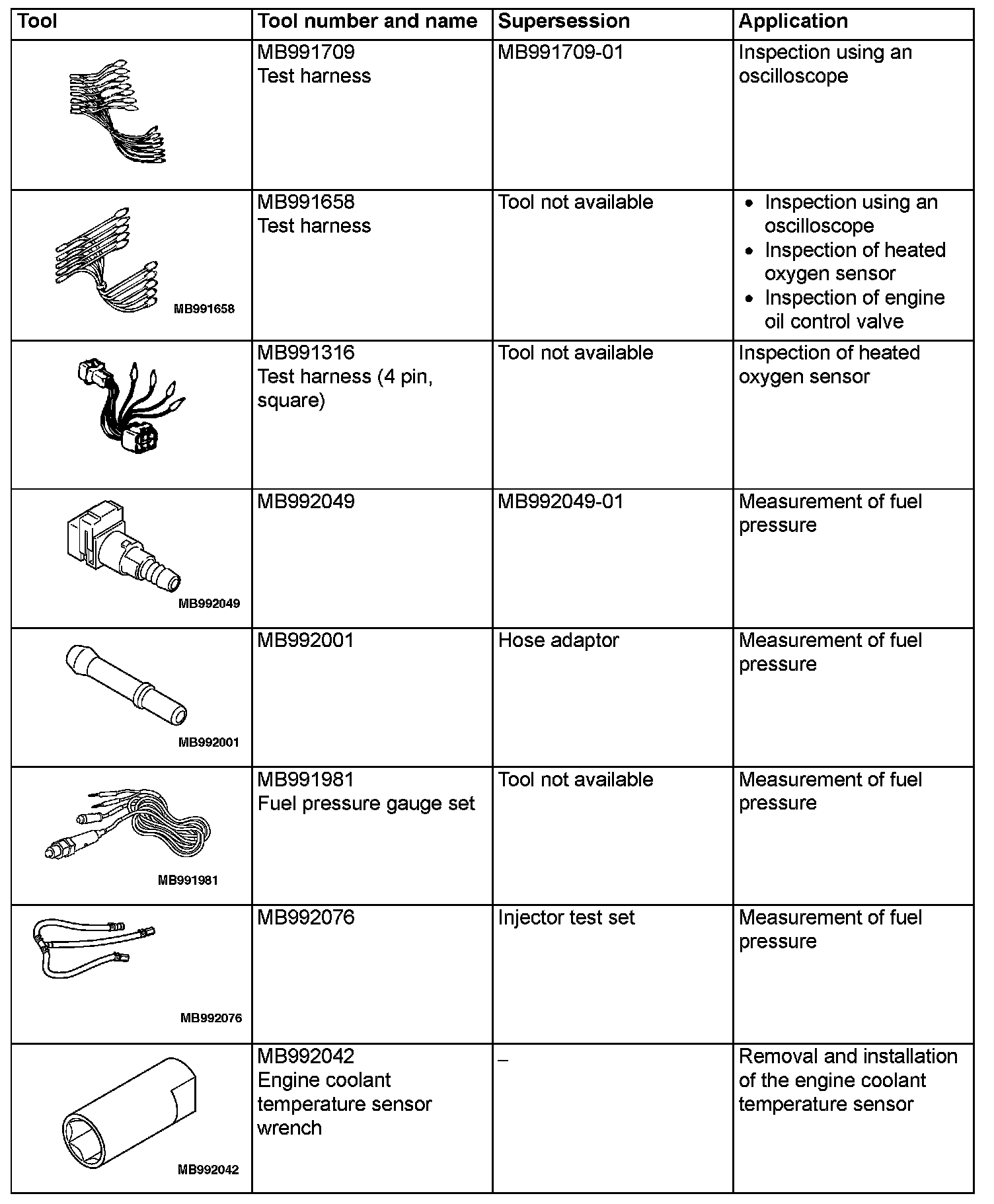

Special Tool (Part 2):

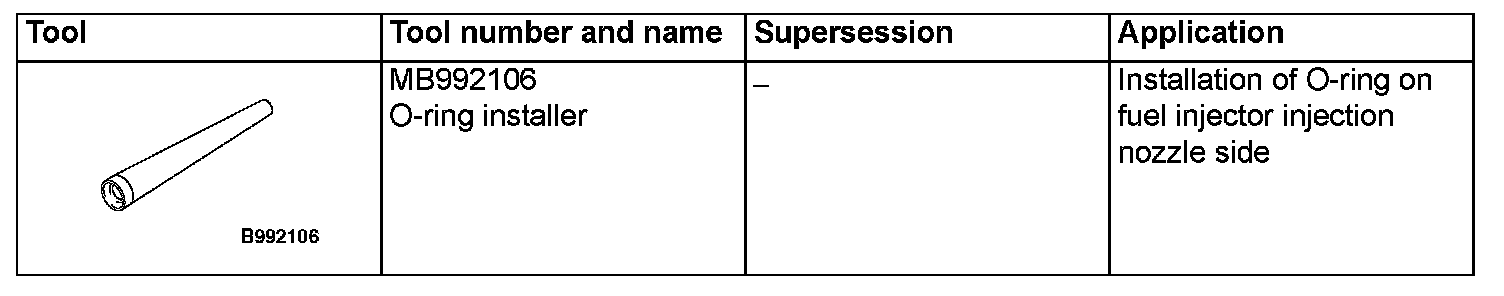

Special Tool (Part 3):
