Overhaul

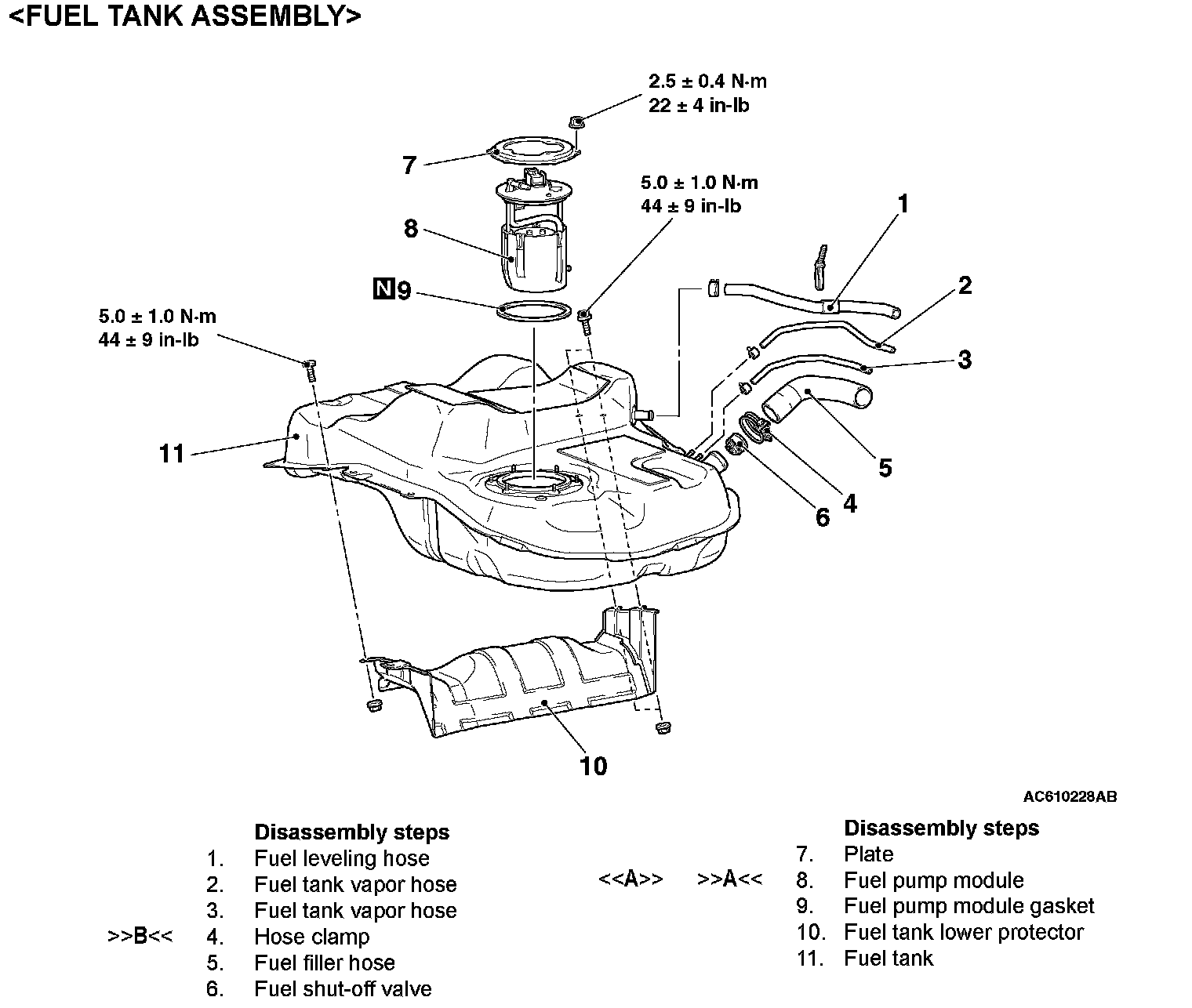

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-11:
ASSEMBLY SERVICE POINT
[[A]] FUEL PUMP MODULE REMOVAL
CAUTION: Pay attention not to damage the fuel level sensor and float of the fuel pump module when removing it from the fuel tank.
DISASSEMBLY SERVICE POINTS
]]A[[ FUEL PUMP MODULE INSTALLATION
CAUTION:
- Pay attention not to damage the fuel level sensor and the float of the fuel pump module when installing it to the fuel tank.
- When installing the fuel pump module to the fuel tank, check that the float of the fuel pump module moving area moves smoothly.

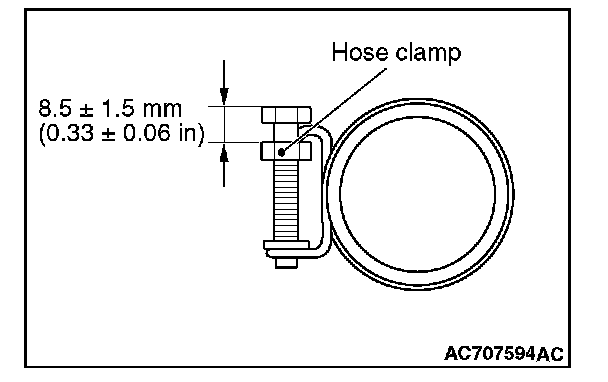

]]B[[ HOSE CLAMP INSTALLATION
Connect the fuel filler hose, and tighten the bolt of hose clamp so that the bolt tightening dimension of the hose clump becomes 8.5 ± 1.5 mm (0.33 ± 0.06 inch.)
