Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

NOTE: *: Continues for 27 minutes. Can be released by pressing the CLEAR key.

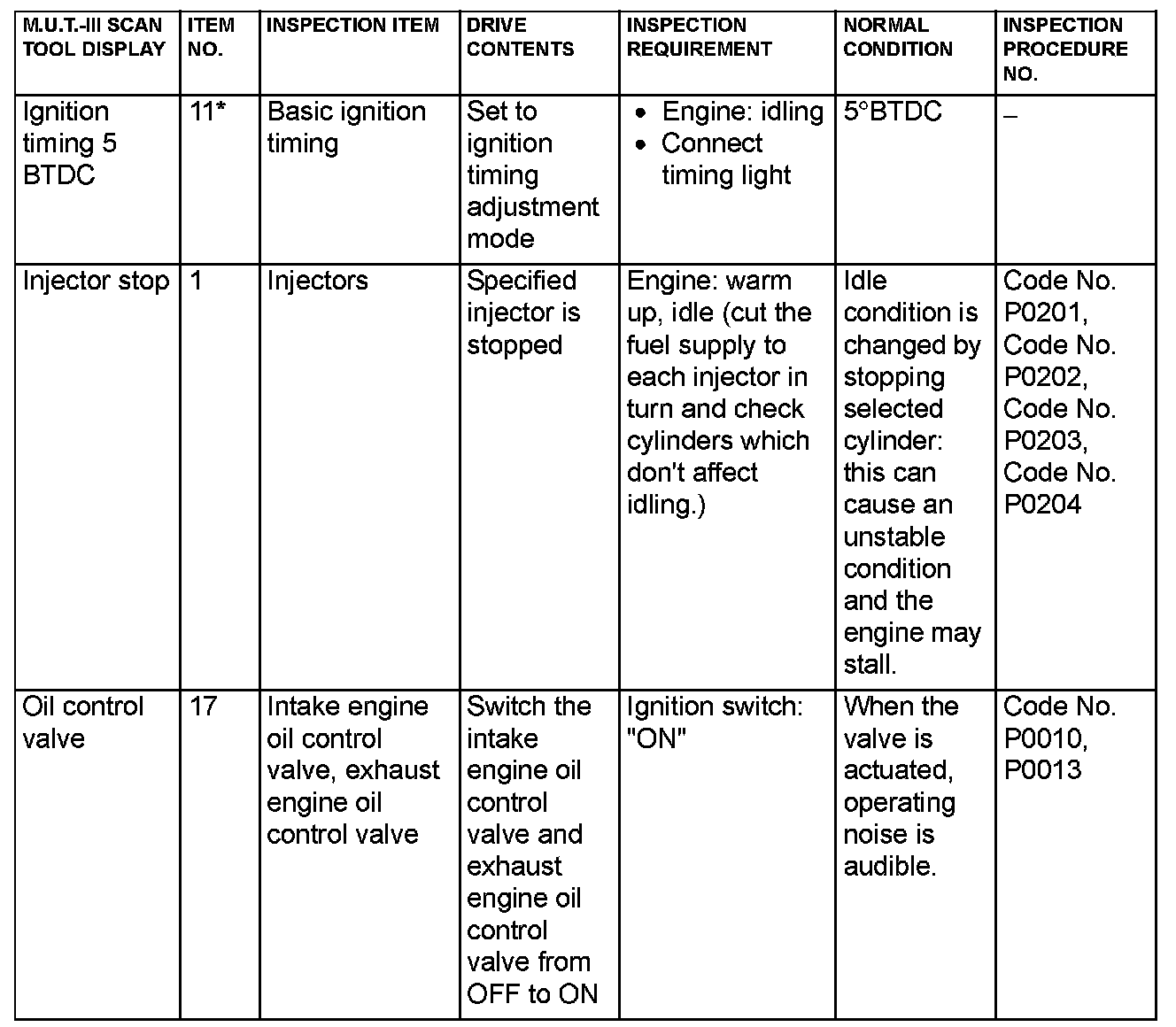

Actuator Test Reference Table (Part 1):

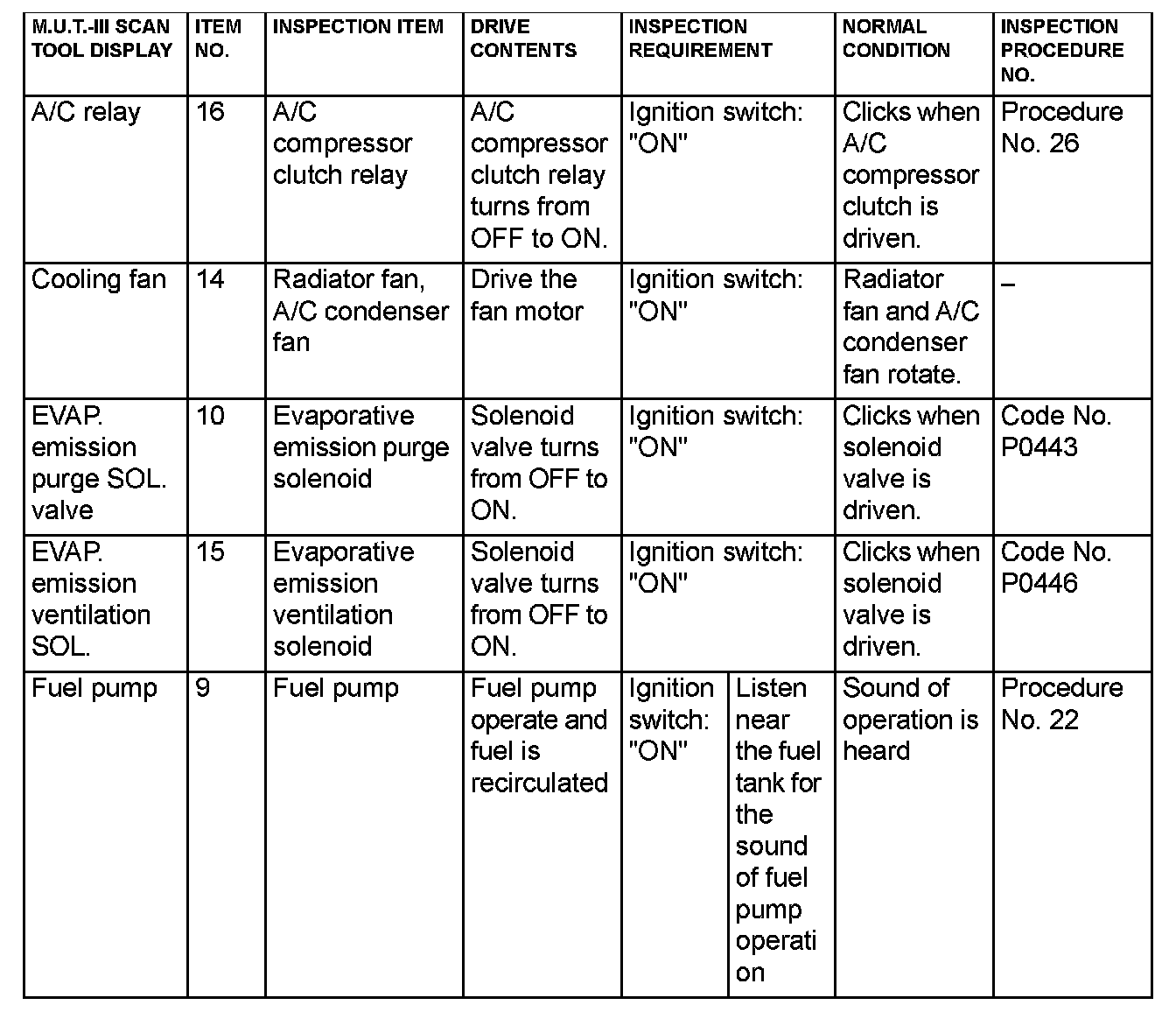

Actuator Test Reference Table (Part 2):
