Accelerator Pedal Position Sensor: Service and Repair
ACCELERATOR PEDAL
REMOVAL AND INSTALLATION

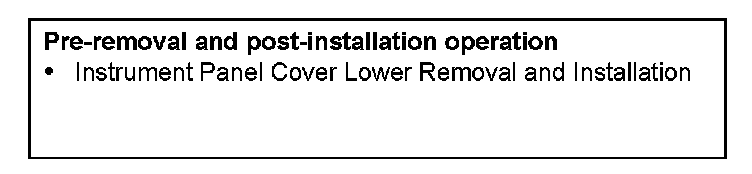

Pre-removal & Post-installation Operation:

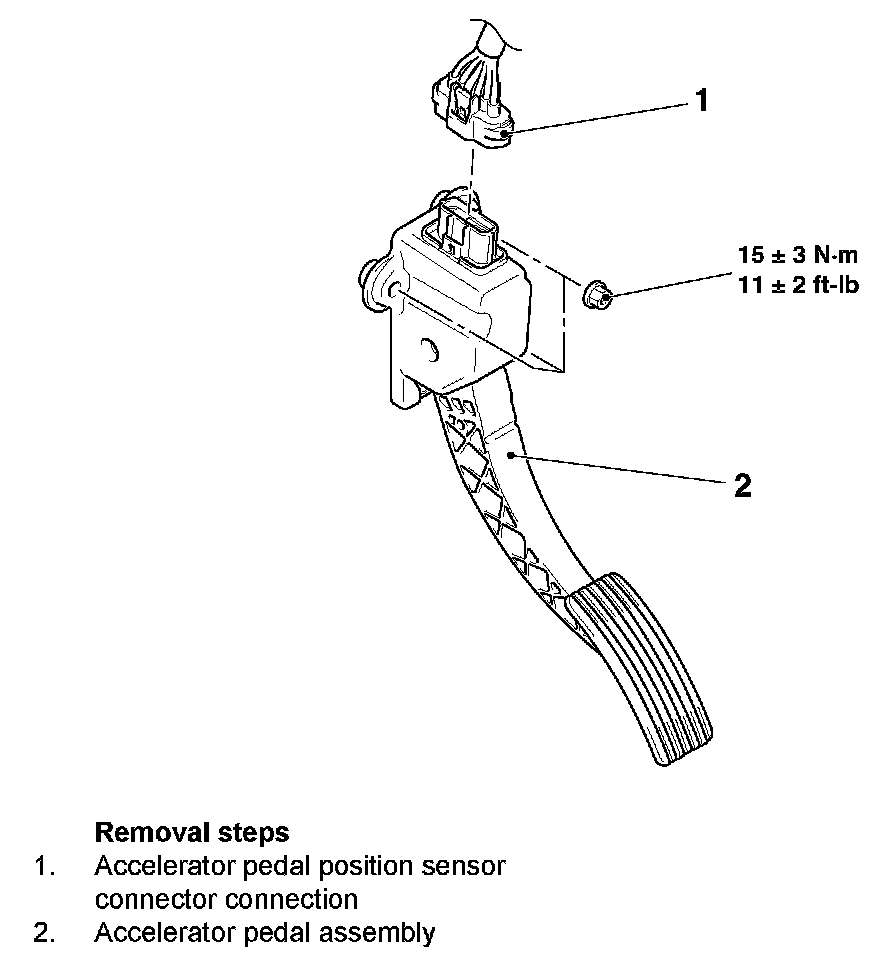

Removal Steps 1-2:
