Home >> Mitsubishi >> 2009 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair

Tail Lamp: Service and Repair

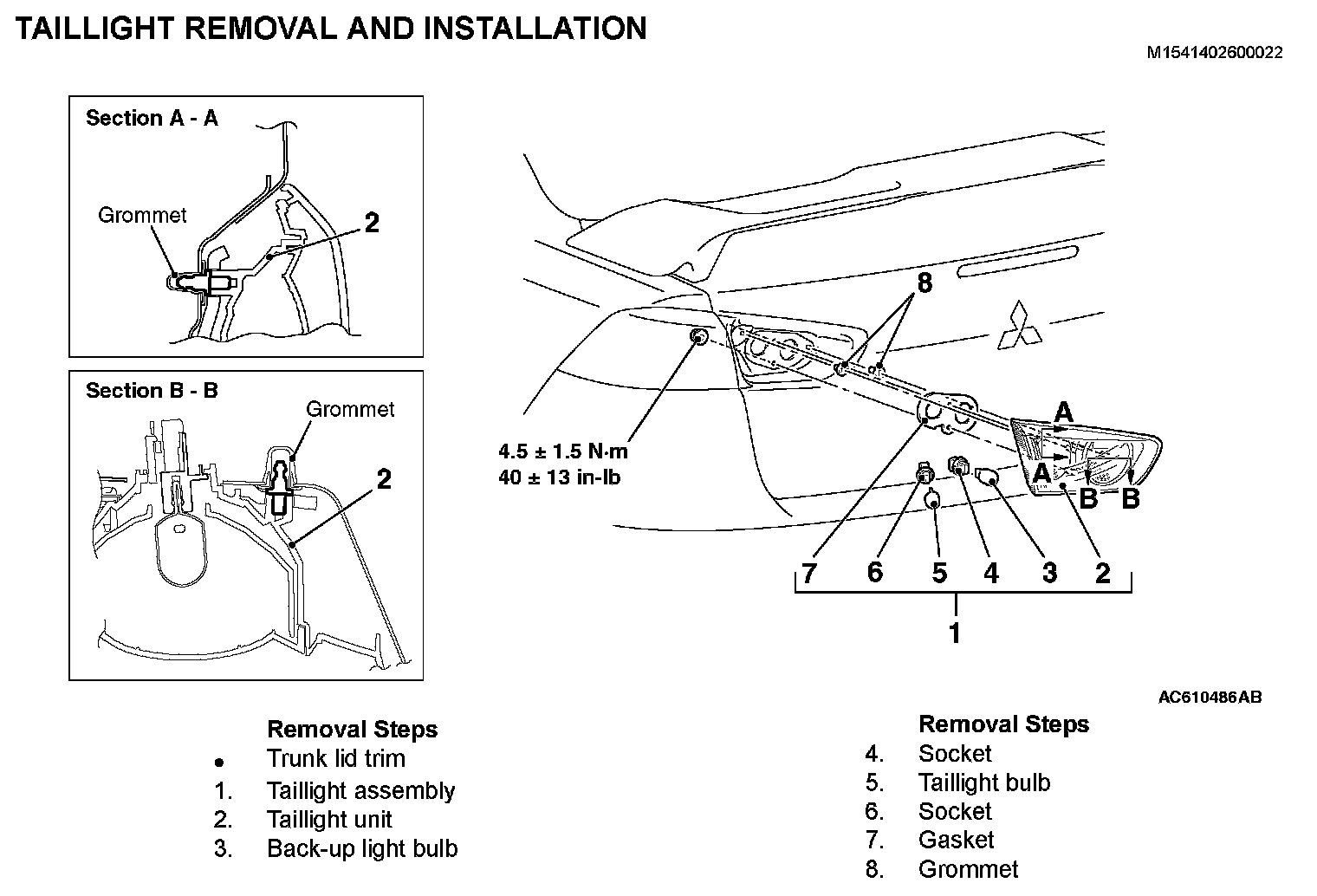

Removal Steps 1-7:



Removal Steps 1-8:
