Headlamp Bulb: Service and Repair
REPLACE THE BULBHEADLIGHT BULB (LOW-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]
CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

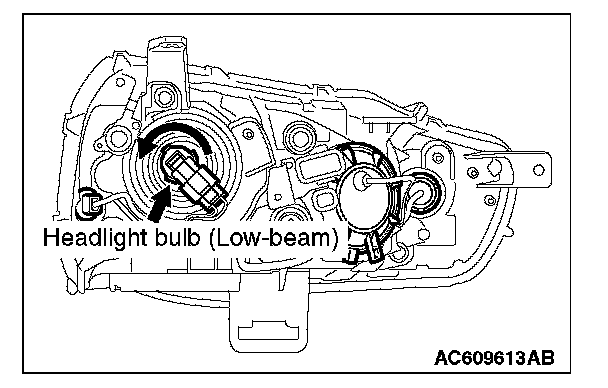

Disconnect the connector, and twist the headlight bulb (low-beam) to remove.
HEADLIGHT BULB (HIGH-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]
CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

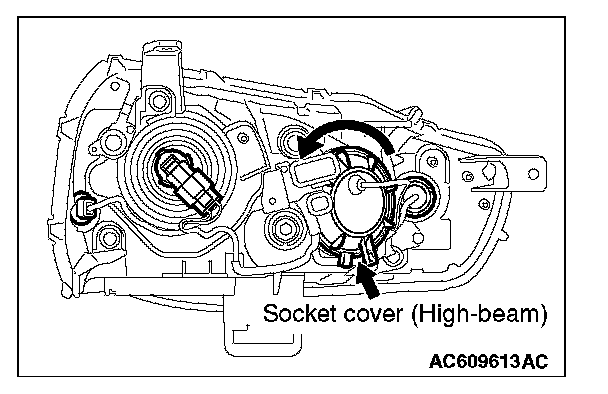

1. Twist the socket cover to remove.
2. Disconnect the connector, and twist the headlight bulb (high-beam) to remove.
