Nominal Resistance of the Fuel Level Sensor

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR

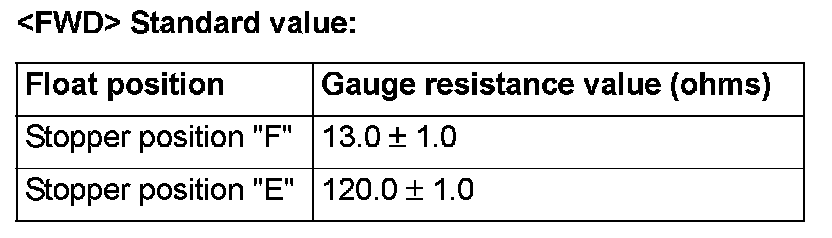

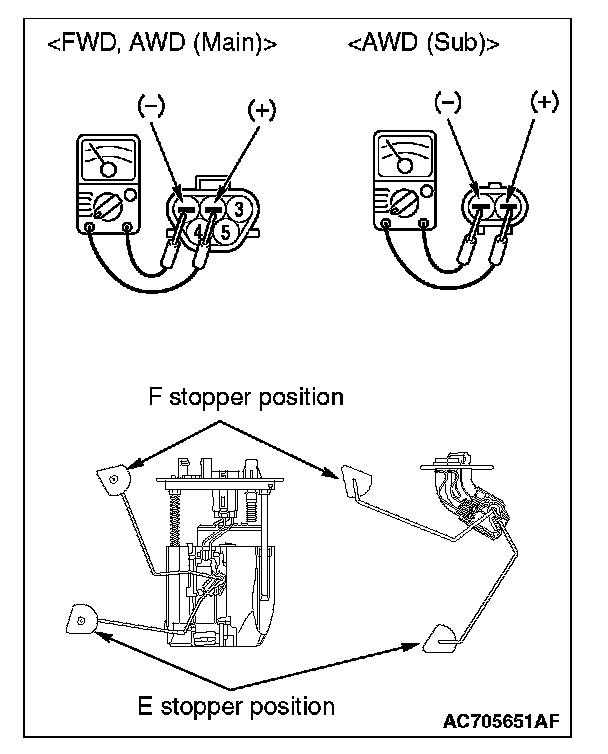

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and earth terminal is within the standard value.







When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
