Condenser HVAC: Service and Repair

CONDENSER ASSEMBLY

REMOVAL AND INSTALLATION

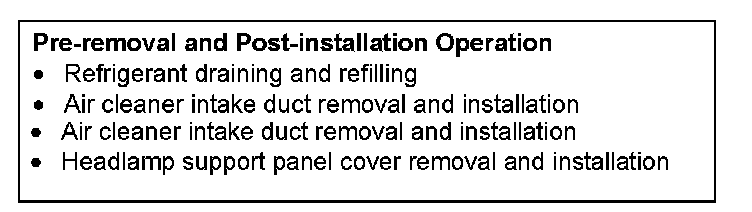

Pre-removal & Post-installation Operation:

Removal Steps 1-6:

REMOVAL SERVICE POINTS.

[A]FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

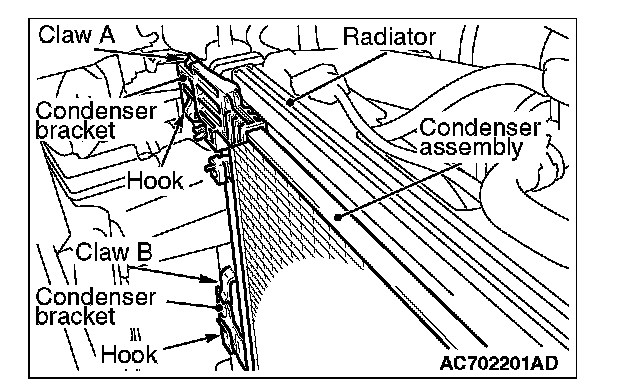

[B]CONDENSER ASSEMBLY

DISCONNECTION







1. Lift the condenser while pressing the claw B.
2. Lift the condenser while pressing the claw A and remove it.
