Air Door Actuator / Motor: Service and Repair

MOTORS AND TRANSISTOR

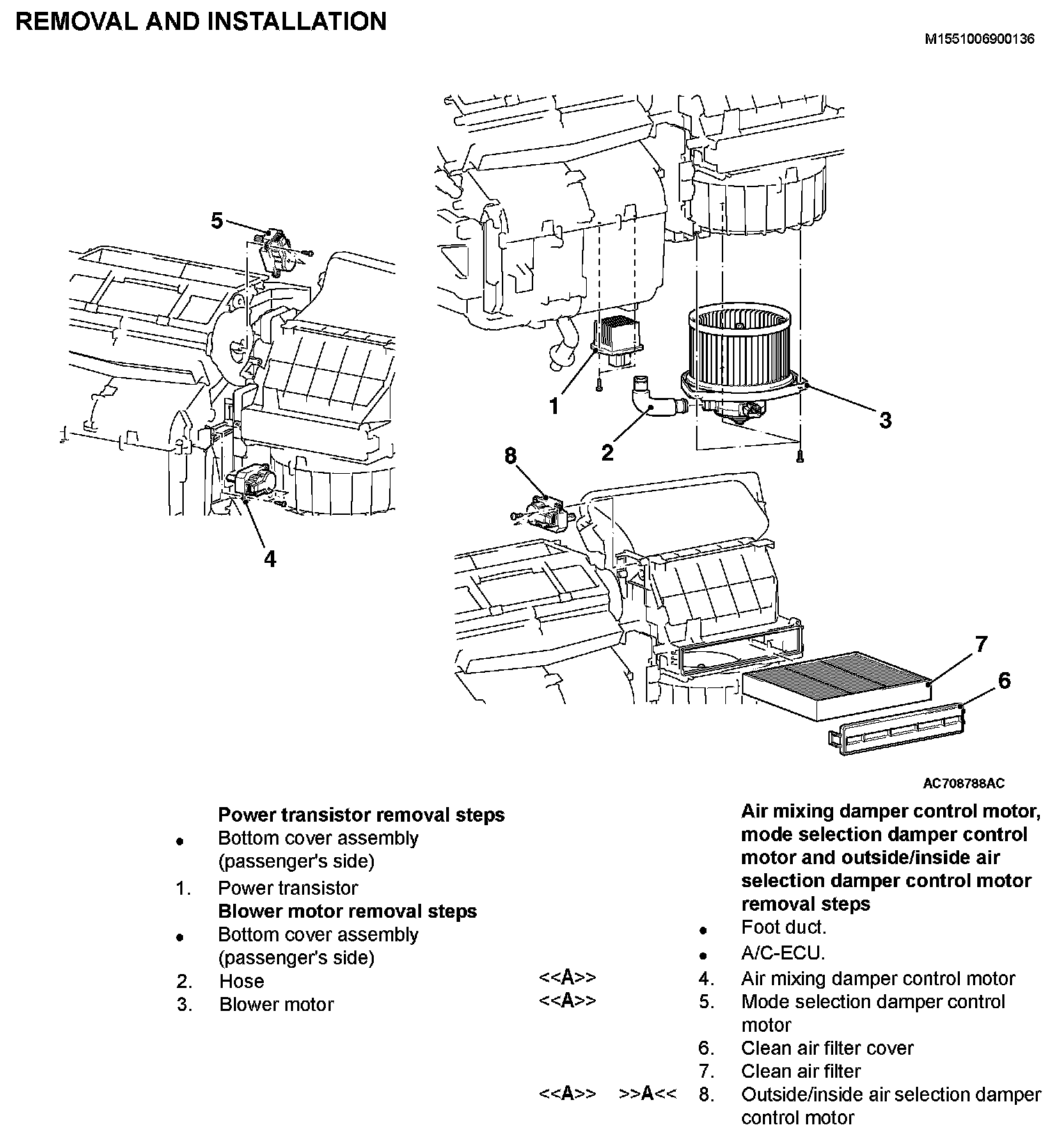

Removal Steps 1-8:

REMOVAL SERVICE POINT

[A]AIR MIXING DAMPER CONTROL MOTOR, OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR, MODE SELECTION DAMPER CONTROL MOTOR REMOVAL

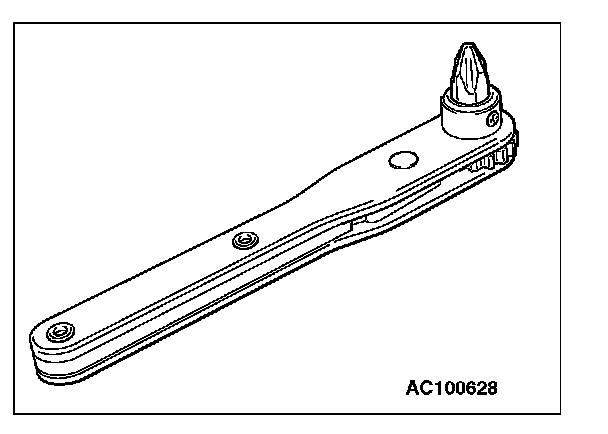

NOTE: A normal plate-type ratchet driver is recommended.

INSTALLATION SERVICE POINT

[A]OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR INSTALLATION
Install the outside/inside air selection damper control motor while pressing the outside/inside air selection damper from the hole of the blower motor.
