Water Pump: Service and Repair
WATER PUMP
REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

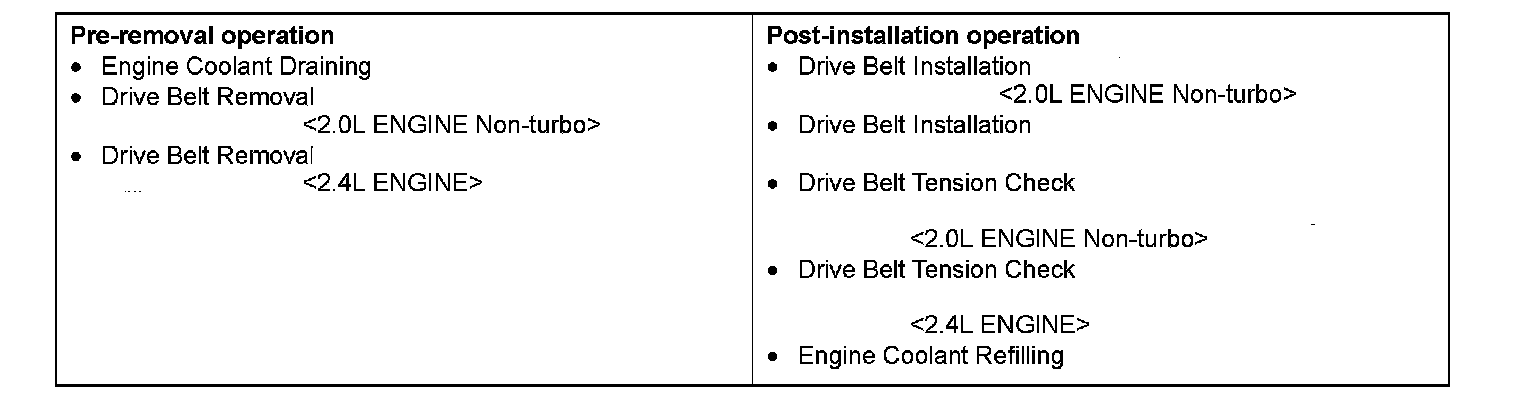

Pre-removal & Post-installation Operation:

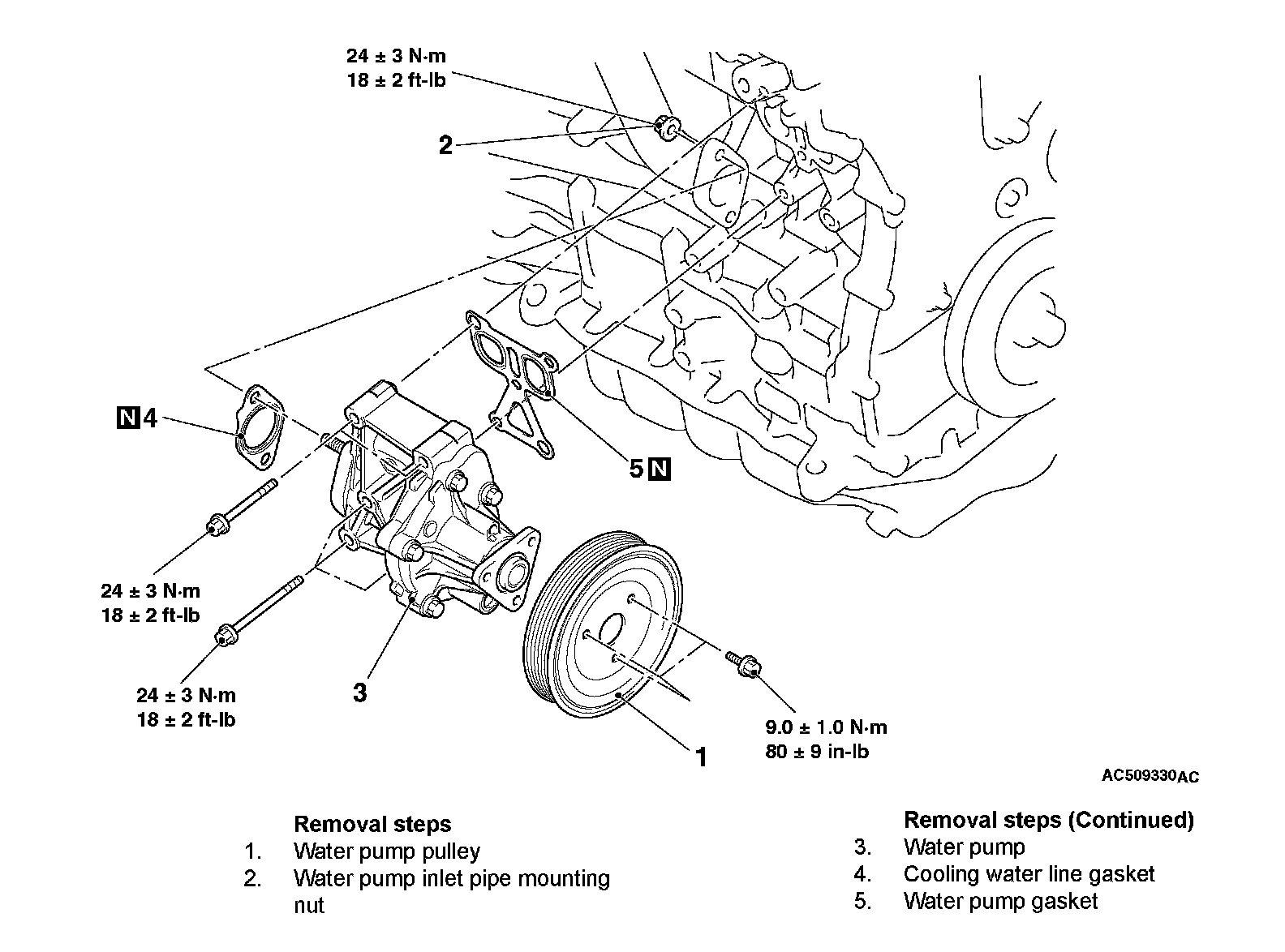

Removal Steps 1-5:
