Spark Plug Check and Cleaning

SPARK PLUG CHECK AND CLEANING

Required Special Tool
MB992273: Spark Plug Brush







CAUTION:

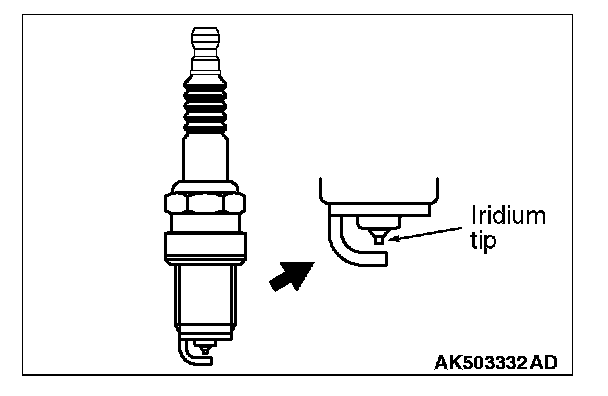

- Never attempt to adjust the gap of the iridium plug.
- Do not attempt to clean the iridium plug using a wire brush because it may result in damage to the electrode. When the iridium plug is cleaned, use a plug cleaner, sand blast type, or special tool Spark Plug Brush (MB992273).


NOTE: Obey the maintenance interval of the relevant vehicle for the spark plug replacement. If the plug gap and insulation resistance are normal, check the plug condition and clean if necessary.
