Exhaust Manifold

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

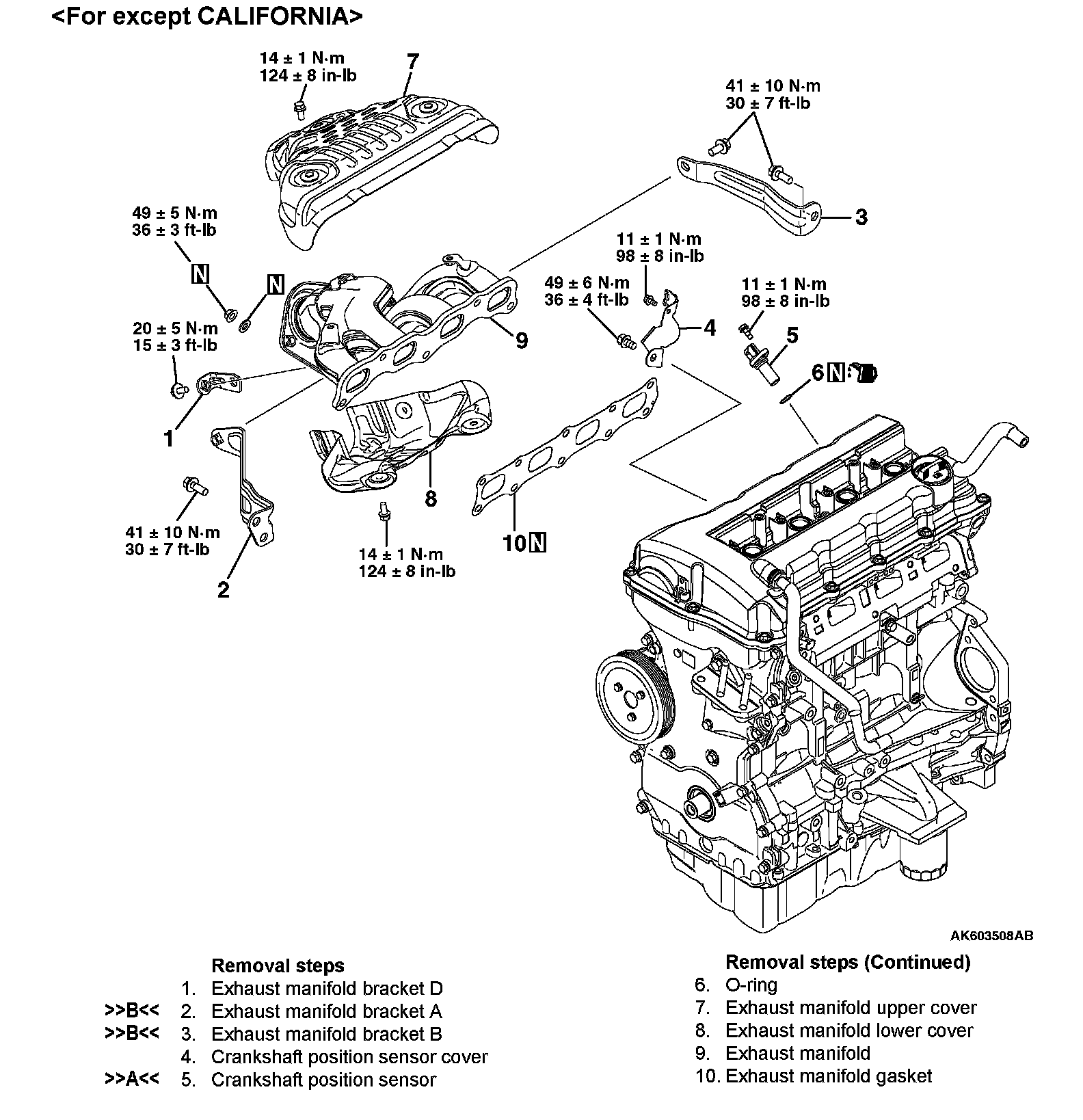

Removal Steps 1-10:

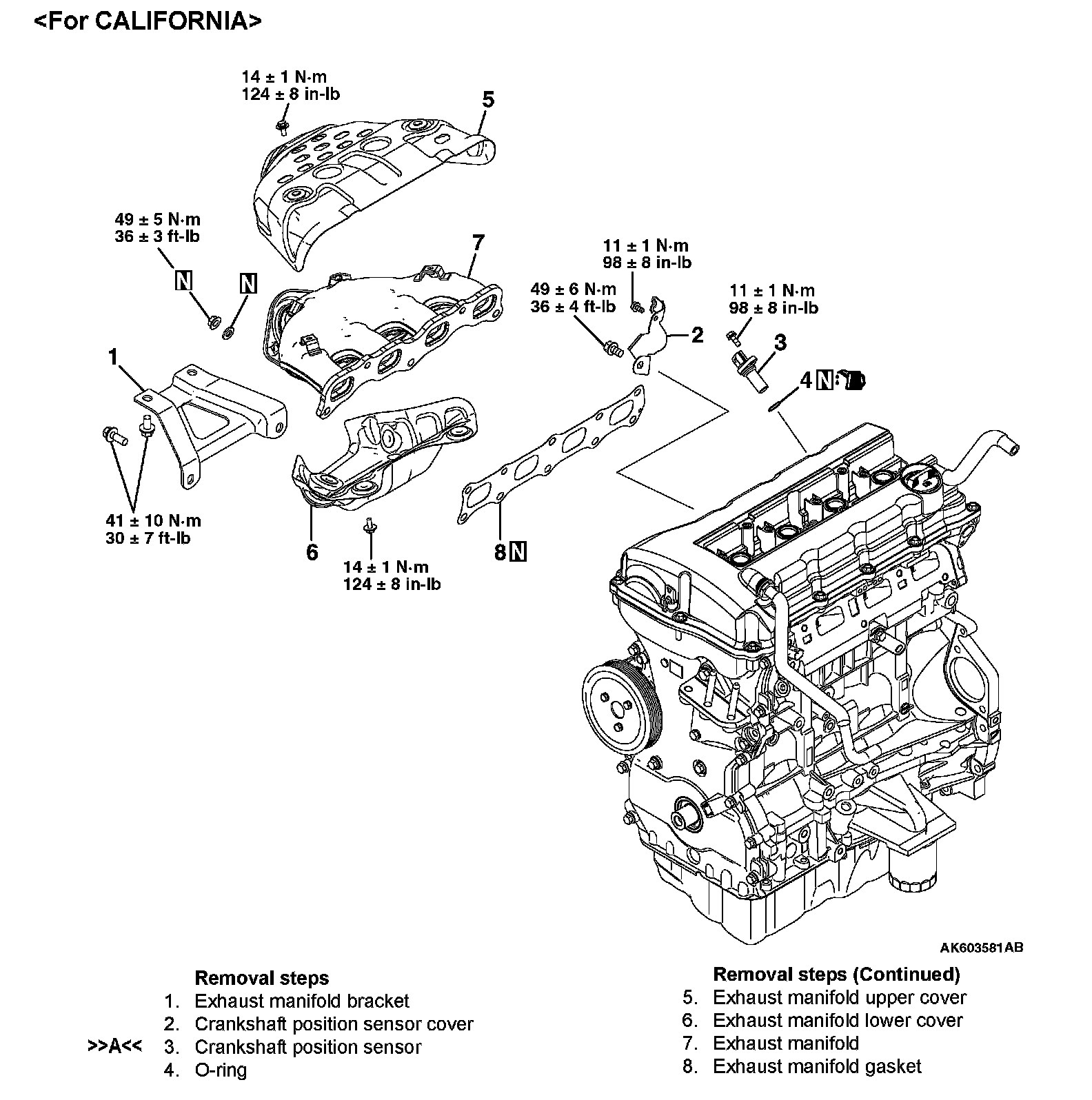

Removal Steps 1-8:

INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT POSITION SENSOR INSTALLATION

CAUTION
^ Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.
^ Assemble the sensor, taking care not to give a shock to it.
^ Do not use a sensor that has been dropped.

Tighten the crankshaft position sensor to the specified torque.

Specified torque: 11 ± 1 Nm (98 ± 8 in-lb)

]]B[[ EXHAUST MANIFOLD BRACKET A / EXHAUST MANIFOLD BRACKET B INSTALLATION

CAUTION
The exhaust manifold gasket, washers and nuts must not be reused.

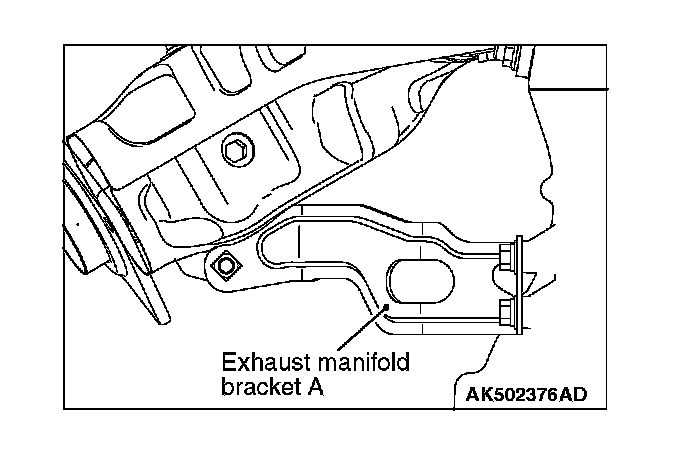

Make sure that exhaust manifold bracket A is in intimate contact with exhaust manifold and cylinder block, and then tighten it to the specified tightening torque.

Specified torque: 41 ± 10 Nm (30 ± 7 ft-lb)
