Drive Belts, Mounts, Brackets and Accessories: Service and Repair

ENGINE ROLL STOPPER AND CENTER MEMBER [2.0L ENGINE Non-turbo, 2.4L ENGINE]

REMOVAL AND INSTALLATION

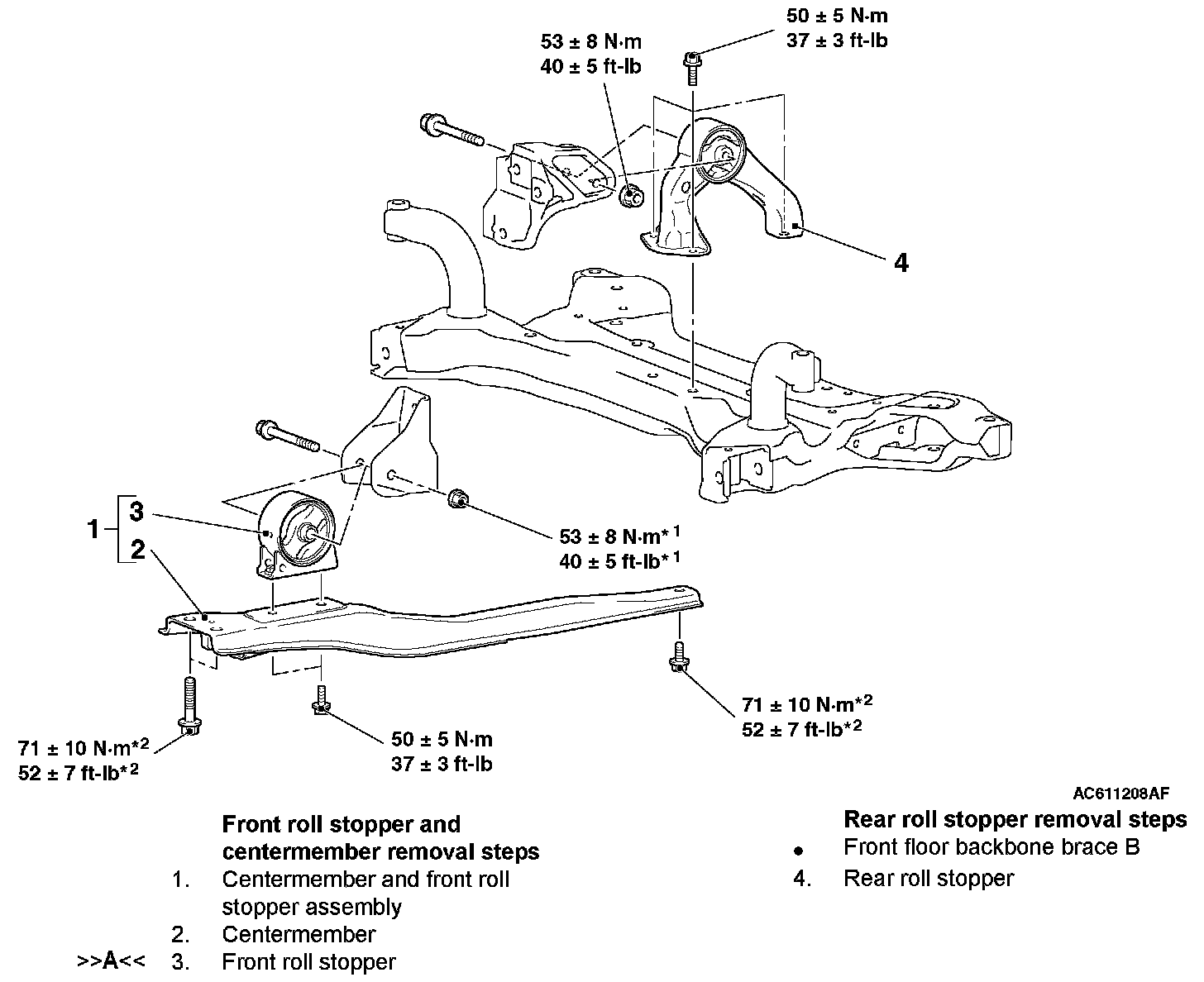

CAUTION
^ The part indicated by the *1 mark should be temporarily tightened, and then fully tightened with the engine and transaxle assembly weight applied on the vehicle body.
^ The parts indicated by the *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.

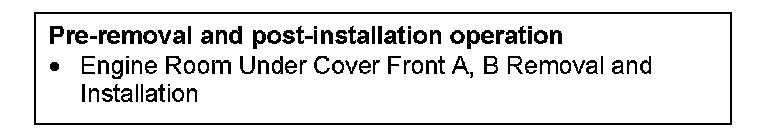

Pre-removal & Post-installation Operation:

Removal Steps 1-4:

INSTALLATION SERVICE POINT

]]A[[ FRONT ROLL STOPPER INSTALLATION





Install the front roll stopper so that the hole faces toward the vehicle front.
