Thermostat: Testing and Inspection

INSPECTION

THERMOSTAT CHECK

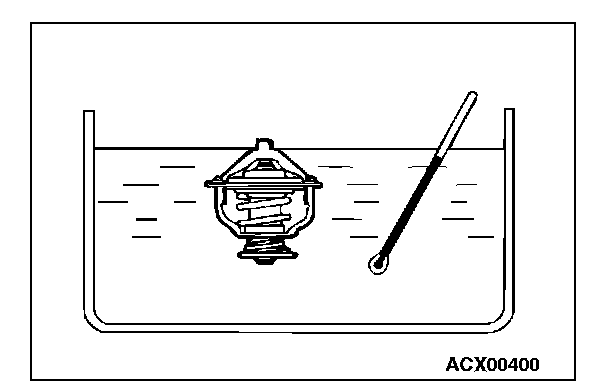

1. Immerse the thermostat in water, and heat the water while stirring. Check the thermostat valve opening temperature.

Standard value:
82 ± 1.5° C (180 ± 3° F) [2.0L ENGINE Non-turbo, 2.4L ENGINE]
76.5 ± 1.5° C (170 ± 3° F) [2.0L ENGINE Turbo]





2. Check that the amount of valve lift is at the standard value when the water is at the full-opening temperature.

NOTE: Measure the valve height when the thermostat is fully closed, and use this measurement to compare the valve height when the thermostat is fully open.

Standard value:
Full-opening temperature:
95° C (203° F) [2.0L ENGINE Non-turbo, 2.4L ENGINE]
90° C (194° F) [2.0L ENGINE Turbo]
Amount of valve lift: 8.5 mm (0.33 inch) or more
